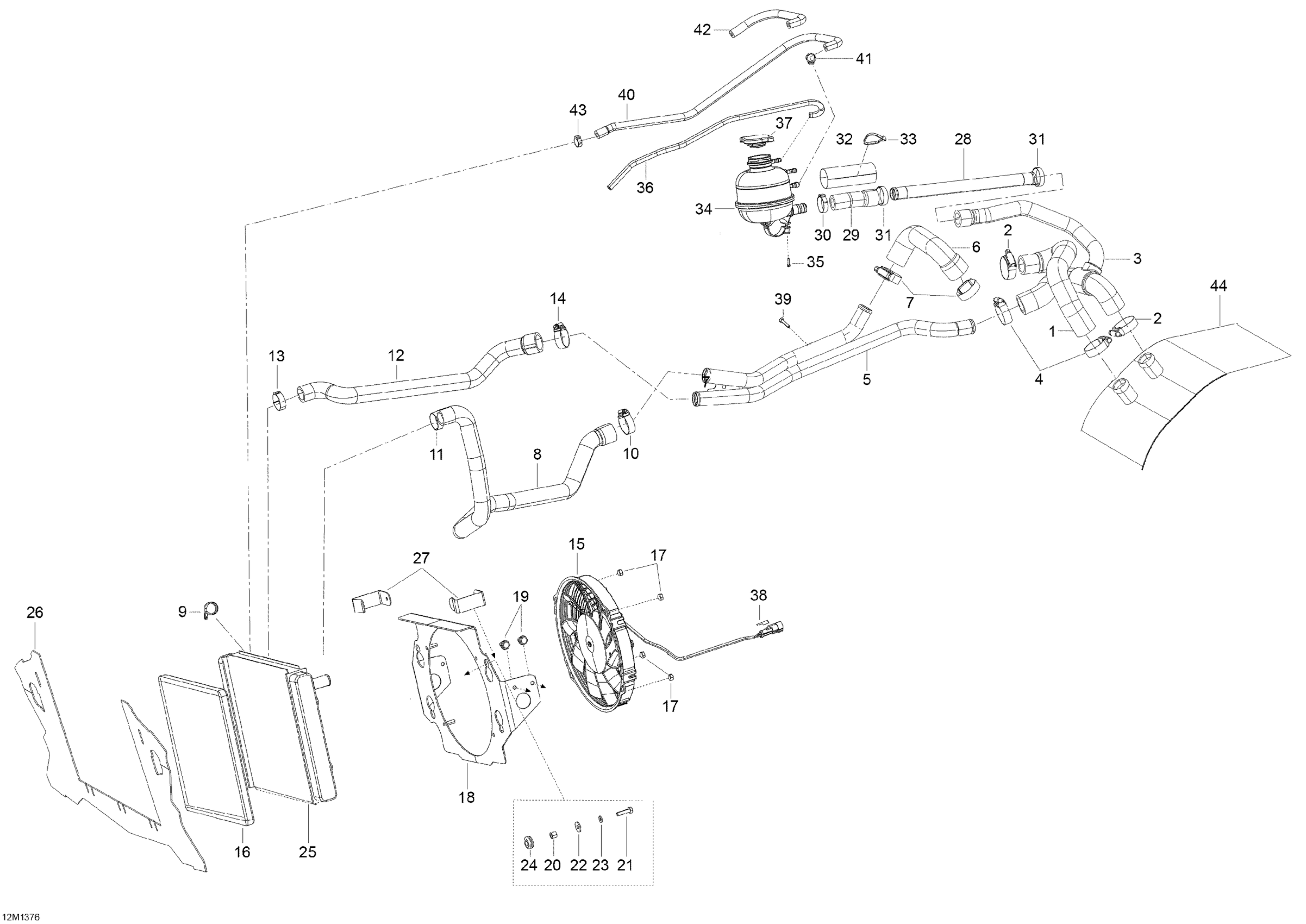

Ski-Doo Skandic WT 600 ACE (4-strokes) XU, 2013 Cooling System Diagram

#

Description
Price

1

HOSE, FRONT AIR RAD->TUNNEL RAD - Call your local BRP dealership

509000762

Unavailable

2

Aba Gear Clamp, 26-38 MM

509000443

$12.49

3

HOSE TUNNEL RAD.->ENGINE-FILLING - Call your local BRP dealership

509000806

Unavailable

4

Aba Gear Clamp, 26-38 MM

509000443

$12.49

5

Water Pipe

509000800

$114.99

6

Engine Outlet Hose

509000932

$21.99

7

Aba Gear Clamp, 26-38 MM

509000443

$12.49

8

Air Radiator Hose

509001000

$99.99

9

Clamp With Rubber D=30

605627008

$21.99

10

Aba Gear Clamp, 26-38 MM

509000443

$12.49

11

Crimp Clamp

293650099

$4.39

12

HOSE, FRONT AIR RAD->TUNNEL RAD - Call your local BRP dealership

509000707

Unavailable

13

Crimp Clamp

293650099

$4.39

14

Aba Gear Clamp, 26-38 MM

509000443

$12.49

15

Cooling Fan

509000838

$224.99

16

Insulation

509000718

$62.99

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

18

Radiator support | Includes 3340 to 3340a

509000791

$95.99

19

HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870.

40870

Unavailable

20

Bushing

605453745

$13.49

21

Hex. Screw M6 X 20 | XT Models

207162044

$1.49

22

Flat Washer 6 mm

234062410

$1.49

23

Lock Washer M6, Black

234161471

$1.49

24

Grommet

709000582

$4.79

25

Radiator

509000787

$229.99

26

AIR DEFLECTOR LTS - Call your local BRP dealership

509000784

Unavailable

27

Deflector Clip

509000703

$42.99

28

PIPE - Call your local BRP dealership

509000644

Unavailable

29

HOSE - Call your local BRP dealership

509000698

Unavailable

30

Oeticker Gear Clamp, 25.6-706R

509000442

$5.29

31

Crimp Clamp

293650099

$4.39

32

Protector Tube

707001349

$21.99

33

Tie-Rap 180 mm

414115200

$1.49

34

Coolant Tank

509000368

$94.99

35

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.49

36

Hose 6 Mm 15000Mm Long

219704360

$134.99

37

Radiator Pressure Cap

509000180

$14.99

38

Clip

710000992

$4.39

39

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.19

40

BREATHER HOSE - Call your local BRP dealership

509000750

Unavailable

41

Crimp Clamp, 15.3-706R

293650047

$3.39

42

Was 409901800 Tubing (13 mm)

219704400

$14.99

43

Crimp Clamp, 15.3-706R

293650047

$3.39

44

Radiator Tunnel

509000645

$819.99
