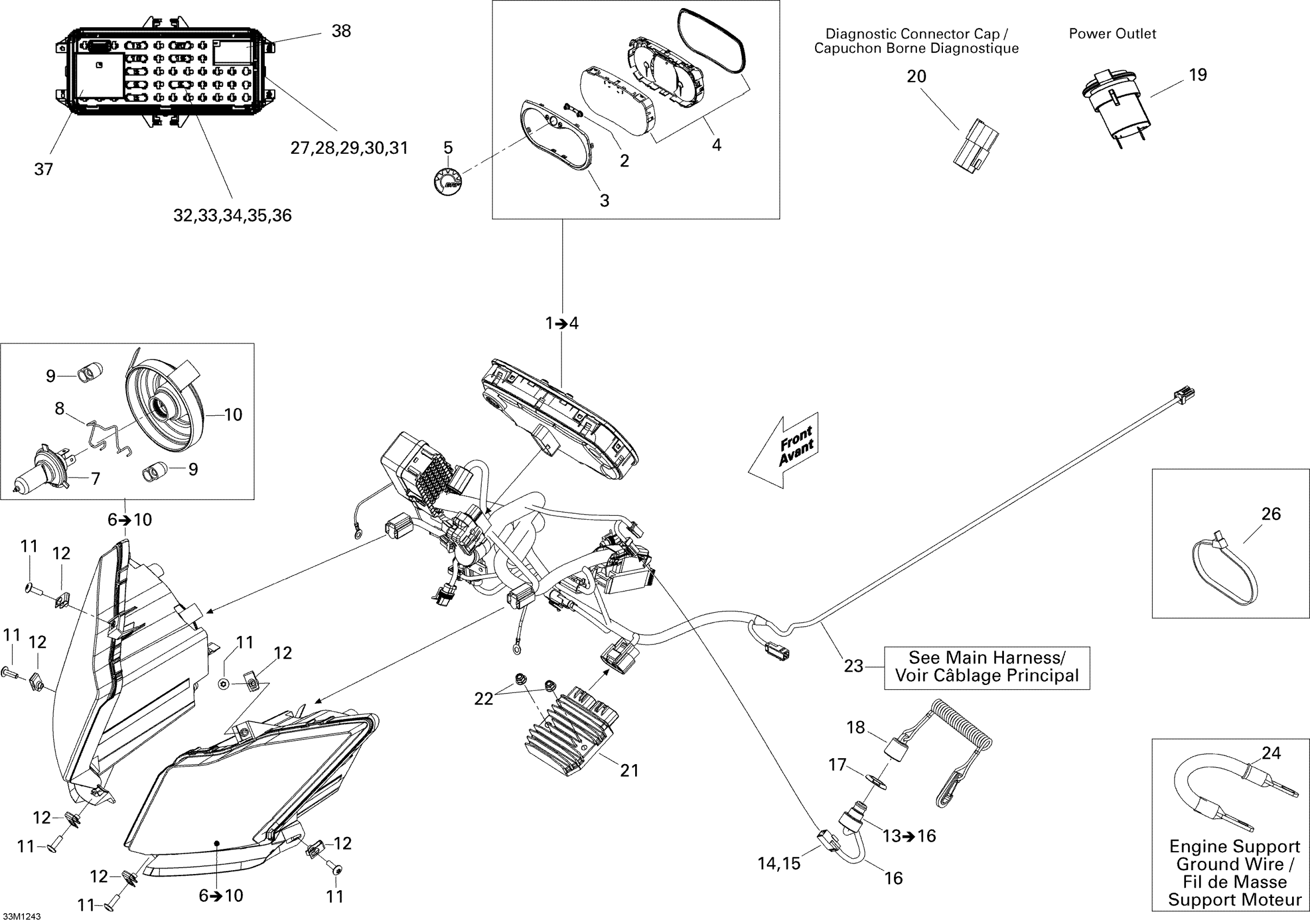

Ski-Doo Skandic WT 600 ACE (4-strokes), 2012 Electrical System Diagram
#
Description
Price
2
Speedometer Button | XTP
415129355
Unavailable
3
Gauge Ring
415129348
Unavailable
4
Lens | XTP
415129349
Unavailable
5
BRP Logo 20MM x 2MM | XTP
516006224
Unavailable
6
RH Headlamp Ass'y | Includes 2400 to 2400c
517304194
Unavailable
6
LH Headlamp Ass'y | Includes 2600 to 2600c
517304195
Unavailable
7
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Cap
515176498
Unavailable
10
Rubber Cap Protector
219800280
Unavailable
11
Torx Screw M6 X 20
250000722
Unavailable
12
Panel Nut M6 X 1.0
250100198
Unavailable
13
DESS Switch
515177249
Unavailable
16
Tubing 12 mm
409902000
Unavailable
18
DESS
515178284
Unavailable
22
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
23
Main Harness Ass'y
515177075
Unavailable
26
Tie Wrap 142 mm
293750002
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
30
Foam
278002172
Unavailable
32
Little Fuse, 5 Amperes
710000742
Unavailable
34
Little Fuse, 10 Amperes
710000744
Unavailable
35
Little Fuse, 15 Ampere
710000745
Unavailable
36
Little Fuse, 30 Amperes
710000747
Unavailable
