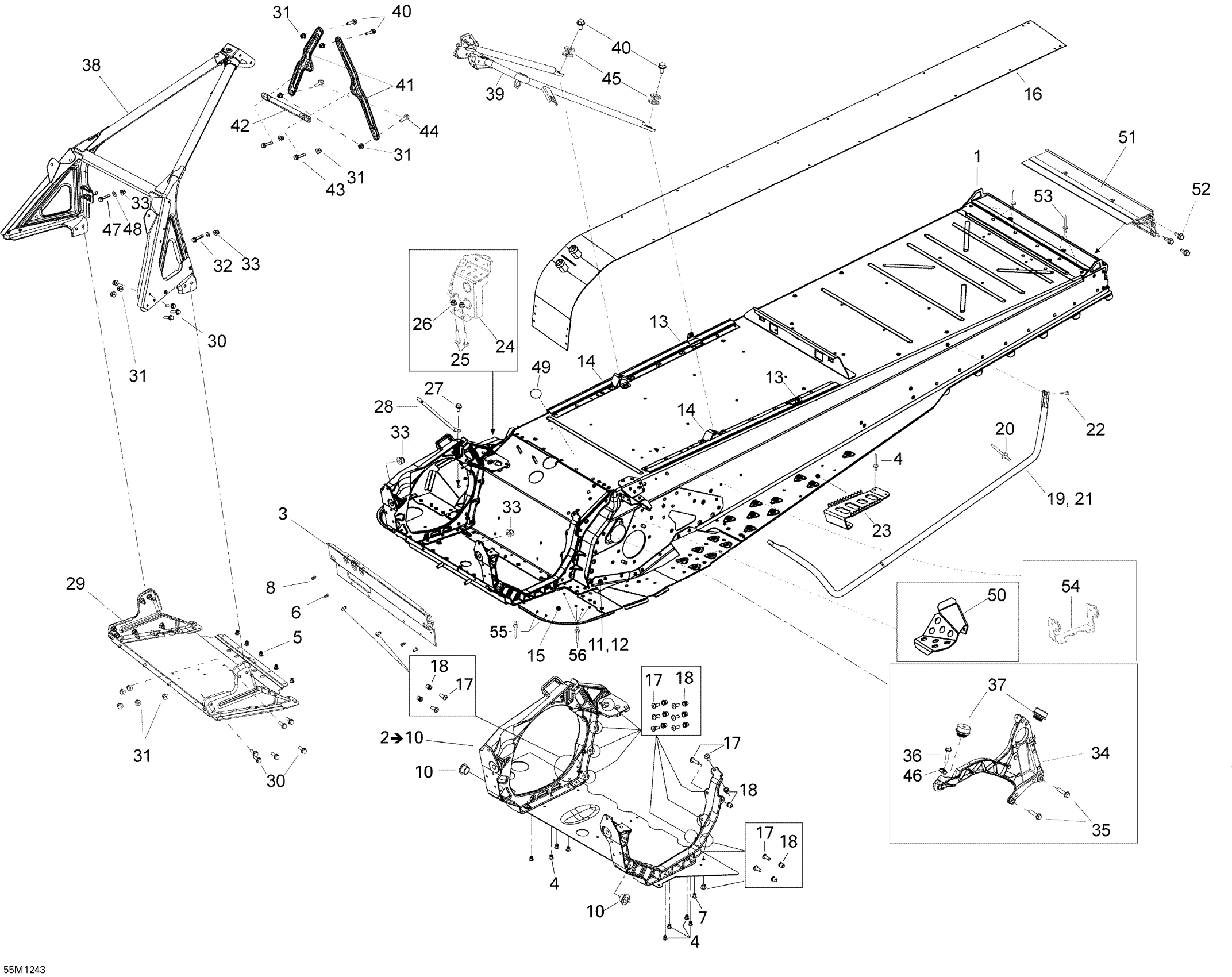

Ski-Doo Skandic WT 600 ACE (4-strokes), 2012 Frame and Components Diagram

#

Description
Price

1

Frame XU ACE SC-5 | Includes 1 To 27

518326988

Unavailable

2

E MODULE - Call your local BRP dealership | Includes 2 To 11

518326518

Unavailable

3

Engine Support

518326140

$116.12

4

Avex Rivet

390909200

$0.29

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Hemlock Rivet, 6.5 mm

293150119

$4.00

7

Hemlock Rivet 6.5 mm

293150120

$7.23

8

Rivet Hucklok

293150163

$2.82

9

Avex Rivet

390909100

$0.29

10

Leg Bushing

505072690

Unavailable

11

Drive Axle Cover L.H.

518326658

Unavailable

12

DRIVE AXLE COVER R.H. - Call your local BRP dealership

518326659

Unavailable

13

Seat Box Bracket

518325987

Unavailable

14

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

14

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

15

LH Frame Corner

518325524

$52.28

15

FRAME CORNER RH - Call your local BRP dealership

518325526

Unavailable

16

Radiator Tunnel

509000645

$766.12

17

Hex. Flange Screw M6 X 20

207662044

$1.66

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

LH Footboard Support Tube

518326963

$126.89

20

Rivet Hucklok

293150163

$2.82

21

RH Footboard Support Tube

518326964

$126.89

22

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

23

Footrest

520000492

$18.43

24

TOE HOOK LH - Call your local BRP dealership

518326671

Unavailable

24

TOE HOOK RH - Call your local BRP dealership

518326672

Unavailable

25

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

27

Torx Screw M6 X 20

250000722

$1.34

28

SPRING BRACKET - Call your local BRP dealership

514054616

Unavailable

29

S Module | Includes 300 to 300a

518326213

$776.12

30

Hex. Flange Screw M6 X 20

207662044

$1.66

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

32

Hex Flange Screw M6 x 25

250000522

$4.28

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

34

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$259.97

35

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

36

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.07

37

Vibration Damper

512061516

$57.66

38

Front Member Ass'y | Includes 700 to 700d

518326754

$674.58

38

Front Member Ass'y | Includes 700 to 700d

518327004

$499.97

39

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

40

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

41

Upper Column Support

518326848

$13.06

42

Center Column Support

518326355

$20.74

43

Clinch Stud M6 X 20

250300027

$1.92

44

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

250000450

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Conical Spring Washer M8

234281474

$1.25

47

Hex. Flange Screw M6 X 30

207663046

$1.42

48

Flat Washer

224061201

$1.11

49

Adhesive Patch

518325560

$4.34

50

Brake Hose Cover | Package SWT

518327035

$11.02

50

Brake Hose Cover | Except Package SWT

518325626

$28.43

51

Rear Profile

518328748

$217.66

51

Rear Profile

518328748

$217.66

52

Hex Forming Screw DIN.7500D

250000376

$7.31

53

Hemlock Rivet, 6.4 mm

293150174

$6.43

54

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

55

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

56

Avex Rivet

390909200

$0.29
