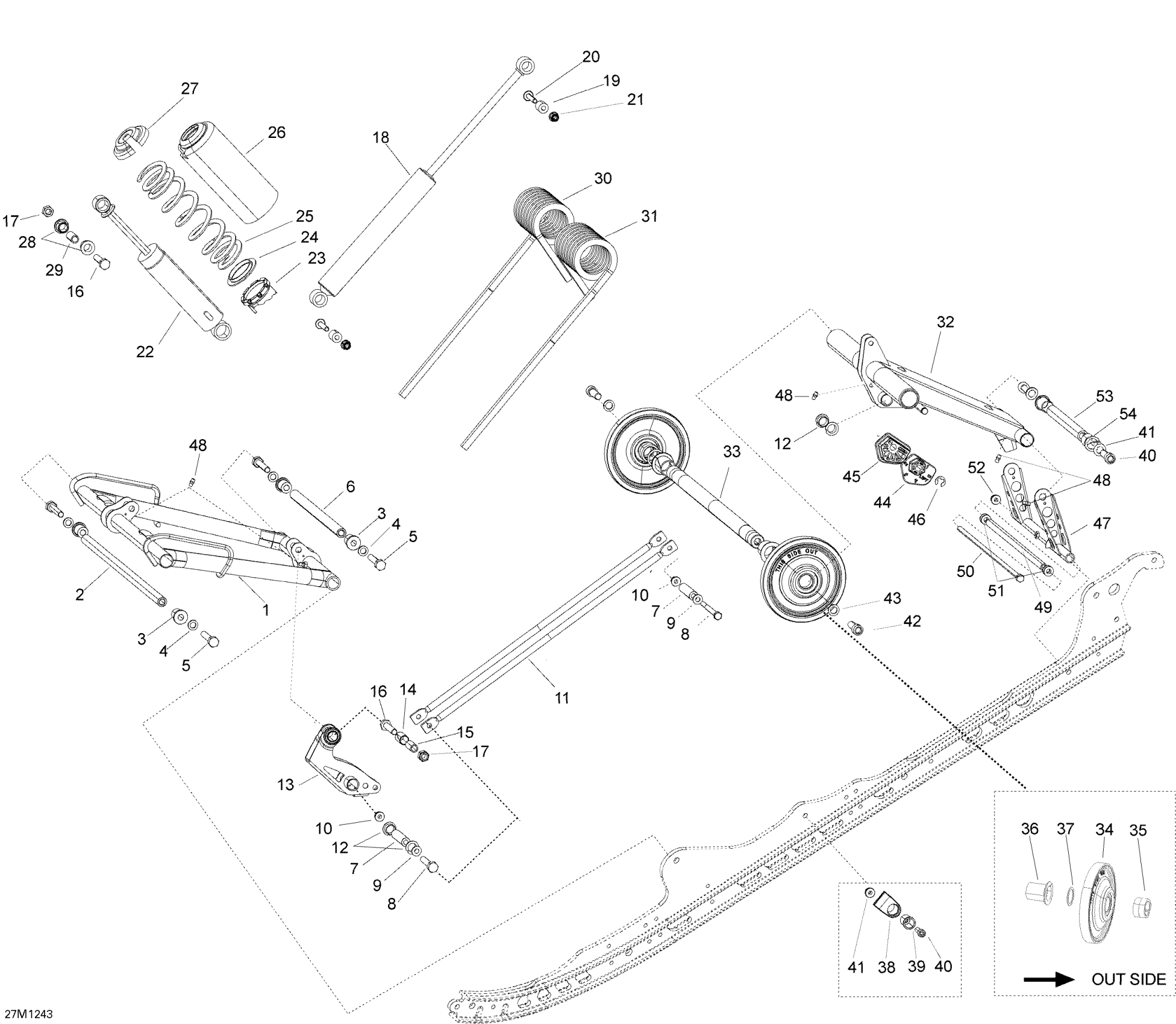

Ski-Doo Skandic WT 600 ACE (4-strokes), 2012 Front Arm Diagram

#

Description
Price

1

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$203.70

2

Upper Shaft

503191391

$33.55

3

Bushing

503189324

$10.84

4

Washer

503189564

$0.70

5

SCREW-HEX.CAPDIN.931 S.GRIP - Call your local BRP dealership

250000471

Unavailable

6

Lower Shaft

503191390

$26.84

7

Axle Bar (Long)

503190643

$14.90

8

Hex. Screw M8 X 90

207089044

$3.24

9

Washer

503189157

$3.10

10

Hex. Flange Elastic Nut M8

233281414

$1.31

11

Link Rod

503191765

$17.13

12

Swivel Bushing

503191555

$5.54

13

Rocker

503192211

$76.09

14

Bushing

503193037

$14.90

15

Bushing | Includes 240d to 240d1

503189282

$4.06

16

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

17

Elastic Locking Nut M10 X 1.5

233601416

$1.63

18

Rear Shock

503193520

$231.31

19

Bushing

414936000

$11.21

20

Hex. Flange Screw M8 X 40

207684044

$1.43

21

Hex. Flange Elastic Nut M8

233281414

$1.31

22

Center Shock

503192266

$152.96

23

Adjustment Cam

505073625

$11.82

24

Spring Guide

503191872

$2.12

25

Black, Spring 242MM

503191880

$64.90

26

Protector

503193663

$34.30

27

Spring Stopper

706200881

$11.82

28

Urethane Bushing

503189117

$6.67

29

Bushing | Includes 240d to 240d1

503189282

$4.06

30

Black RH Square Spring

503192377

$105.94

31

Black LH Square Spring

503192378

$105.94

32

Rear Arm Ass'y | Includes 24 To 37

503191709

Unavailable

33

Upper Shaft

503191405

$86.54

34

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$44.75

35

Retaining Ring

503191099

$5.67

36

Cushion

503191451

$10.84

37

Washer

503190328

$11.00

38

Spring Support Kit

861805547

$7.90

39

Spring Support Kit

861805547

$7.90

40

Socket Head Screw M8 X 25

205082544

$1.06

41

Hex. Flange Elastic Nut M8

233281414

$1.31

42

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

43

Washer

503189276

$3.10

44

LH Cam Adjuster

503191565

$13.54

45

RH Cam Adjuster

503191566

$13.54

46

E-Circlip

293370013

$0.60

47

Pivot Arm | Includes 3000j to 3000j3

503195154

$93.25

48

Grease Fitting

408200700

$3.21

49

Axle Pivot

503191396

$76.09

50

Bolt 369MM

503195156

$24.60

51

Washer

503189157

$3.10

52

Hex. Flange Elastic Nut M8

233281414

$1.31

53

Lower Shaft

503192330

$44.75

54

Cushion

503191640

$5.54
