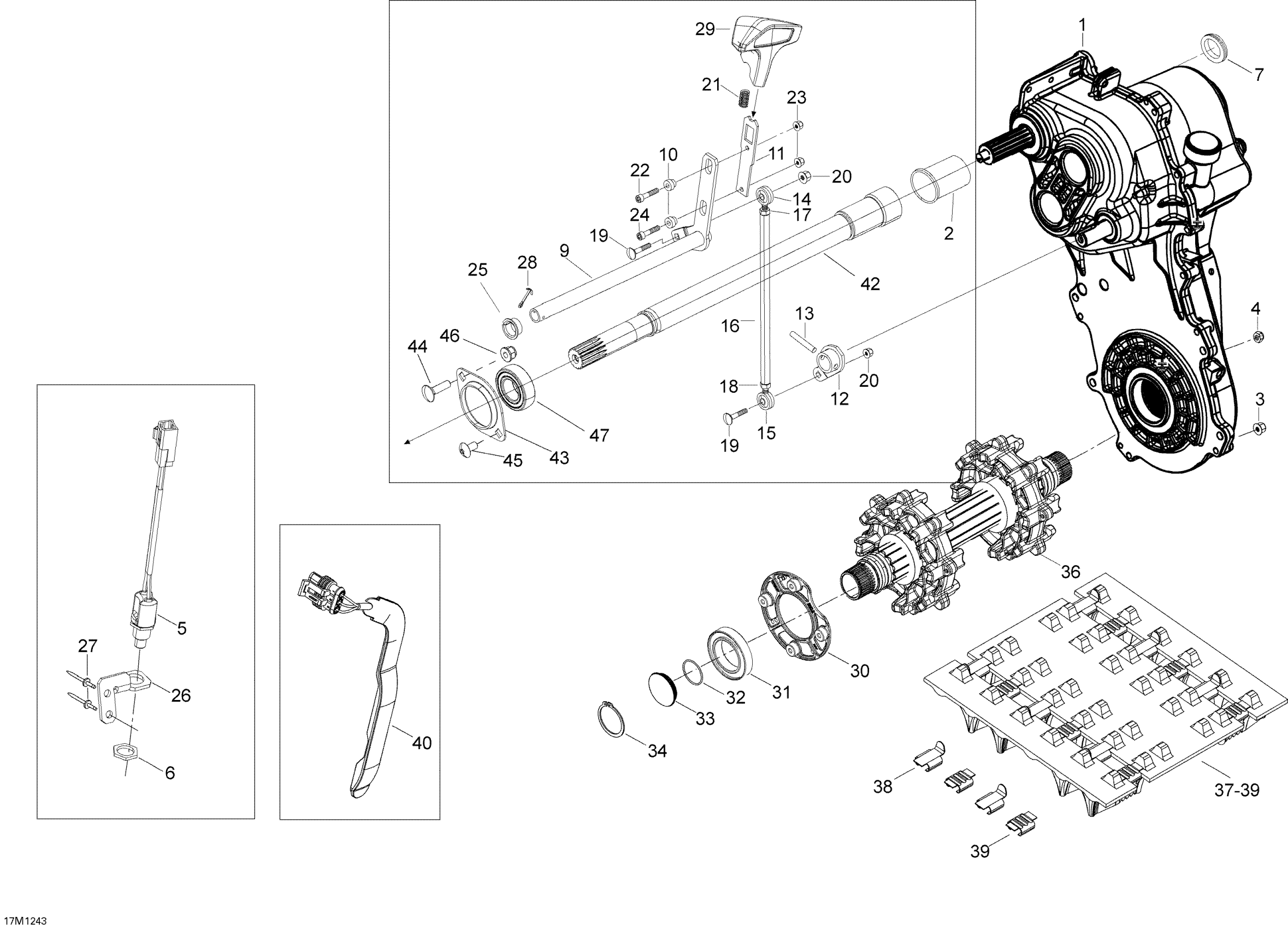

Ski-Doo Skandic WT 600 ACE (4-strokes), 2012 Drive System Diagram

#

Description
Price

1

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2,089.99

2

Protective Rubber

504153054

$15.64

3

Hex. Flange Elastic Nut M8

233281414

$1.31

4

Hex. Elastic Stop Nut M8

232581414

$0.54

5

Switch Ass'y

515176472

$69.37

6

Brass Nut

250000373

Unavailable

7

RUBBER PLUG - Call your local BRP dealership

504152818

Unavailable

9

Lever Shifter

504153288

$140.27

10

Sleeve

504152787

$26.09

11

Shifter Arm

504153287

$50.72

12

WELDED LEVER - Call your local BRP dealership

504152834

Unavailable

13

Pin

41012

$5.06

14

RH BALL JOINT - Call your local BRP dealership

707000689

Unavailable

15

LH BALL JOINT - Call your local BRP dealership

707000690

Unavailable

16

ROD - Call your local BRP dealership

504152836

Unavailable

17

Hex. Nut M6

232061414

$0.51

18

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

19

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

20

Elastic Stop Nut M6

232561414

$1.78

21

Spring

504152882

$5.72

22

Socket Screw M5 X 25

205052544

$1.54

23

Flange Elastic Nut M5

233251434

$1.91

24

Forming Screw M5 x 16

250000676

$0.96

25

Bushing

504152890

$42.49

26

Sensor Bracket

504152902

$14.90

27

Rivet Hucklok

293150163

$2.73

28

Cotter Pin

250400035

$2.00

29

Handle

504152837

$73.85

30

Retaining Ring

504153886

$17.88

31

Ball Bearing

293350059

$29.82

32

O-Ring

293300122

$2.00

33

Magnetic Cap

504152619

$22.36

34

Circlip

504152572

$6.07

36

AXLE-DRIVE ASSY - Call your local BRP dealership

504153106

Unavailable

37

Track | Includes 3200 to 3200b

605613004

$1,279.99

38

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Rotation Sensor

504152896

$34.30

42

Counter Shaft | Gear Box 2.30

504152963

$229.82

43

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

44

Carriage Bolt M8 X 30

207783044

$2.00

45

Torx Truss Screw M8 X 16

250000746

$3.19

46

Hex. Flange Elastic Nut M8

233281414

$1.31

47

Ball Bearing

293350074

$38.49
