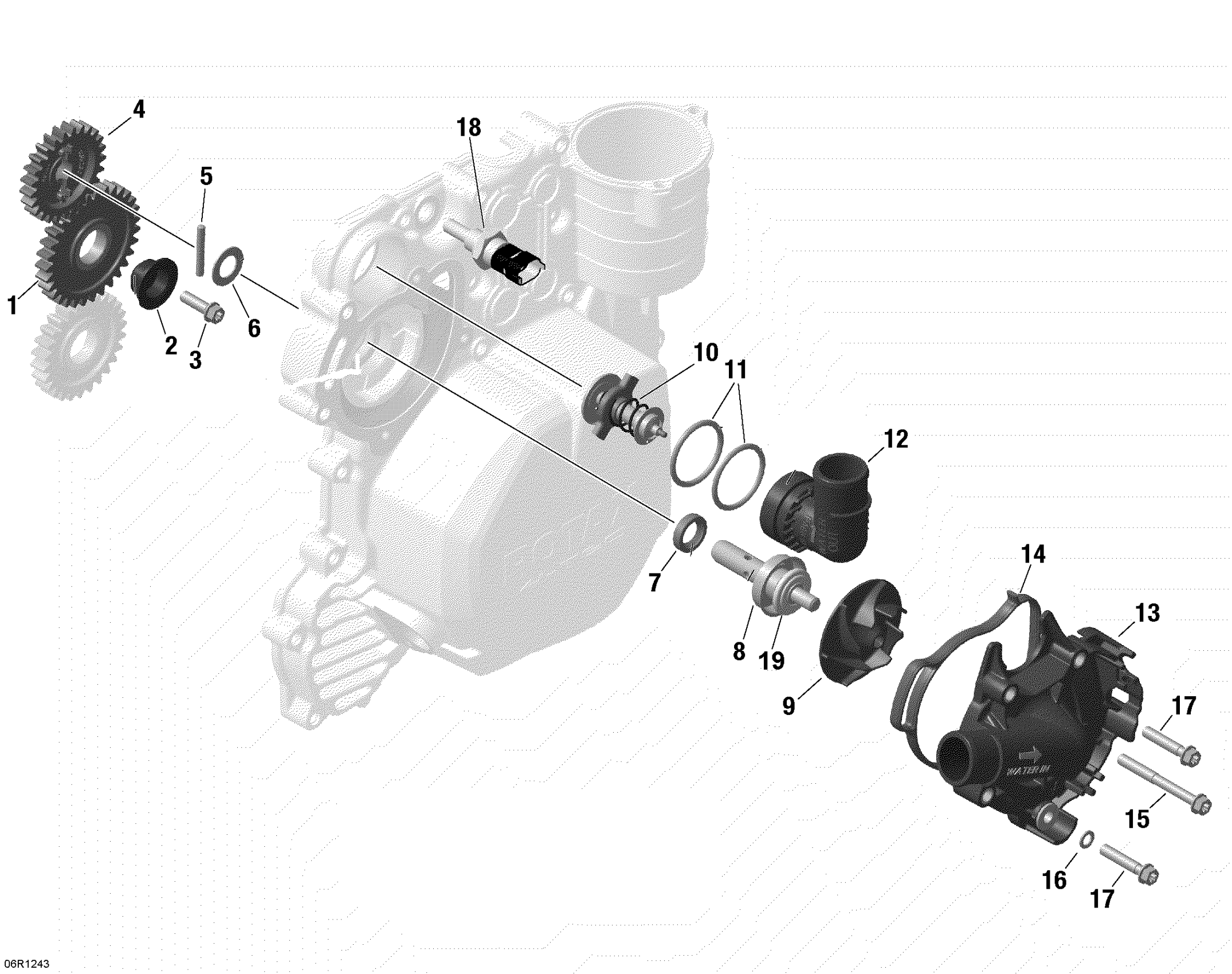

Ski-Doo Skandic WT 600 ACE (4-strokes), 2012 Engine Cooling Diagram

Description

Price

Idle Gear, 31 Teeth

420835067

$22.36

Graduated Spacer This part replaces 420947390.

420947396

$26.09

Torx Flange Screw M6 X 20

420440207

$2.91

Water Pump Gear

420835230

$6.07

Needle Pin

420232431

$4.21

Thrust Washer

420827261

$7.09

Oil Seal

420931802

$6.07

Waterpump Shaft

420820150

$23.85

Water Impeller

420222880

$7.13

Thermostat

420822655

$30.57

Water Pump Housing O-Ring

420950896

$10.04

Thermostat Cover

420922150

$8.09

13-14

Water Pump Housing

420922293

$67.88

Water Pump Housing Gasket

420431682

$17.88

Torx Flange Screw M6 X 55

420440702

$2.91

Seal Washer

420230415

$1.72

Torx Flange Screw M6 X 30

420440647

$1.91

Temperature Sensor

278002895

$36.54

Seal

420850946

$32.06
