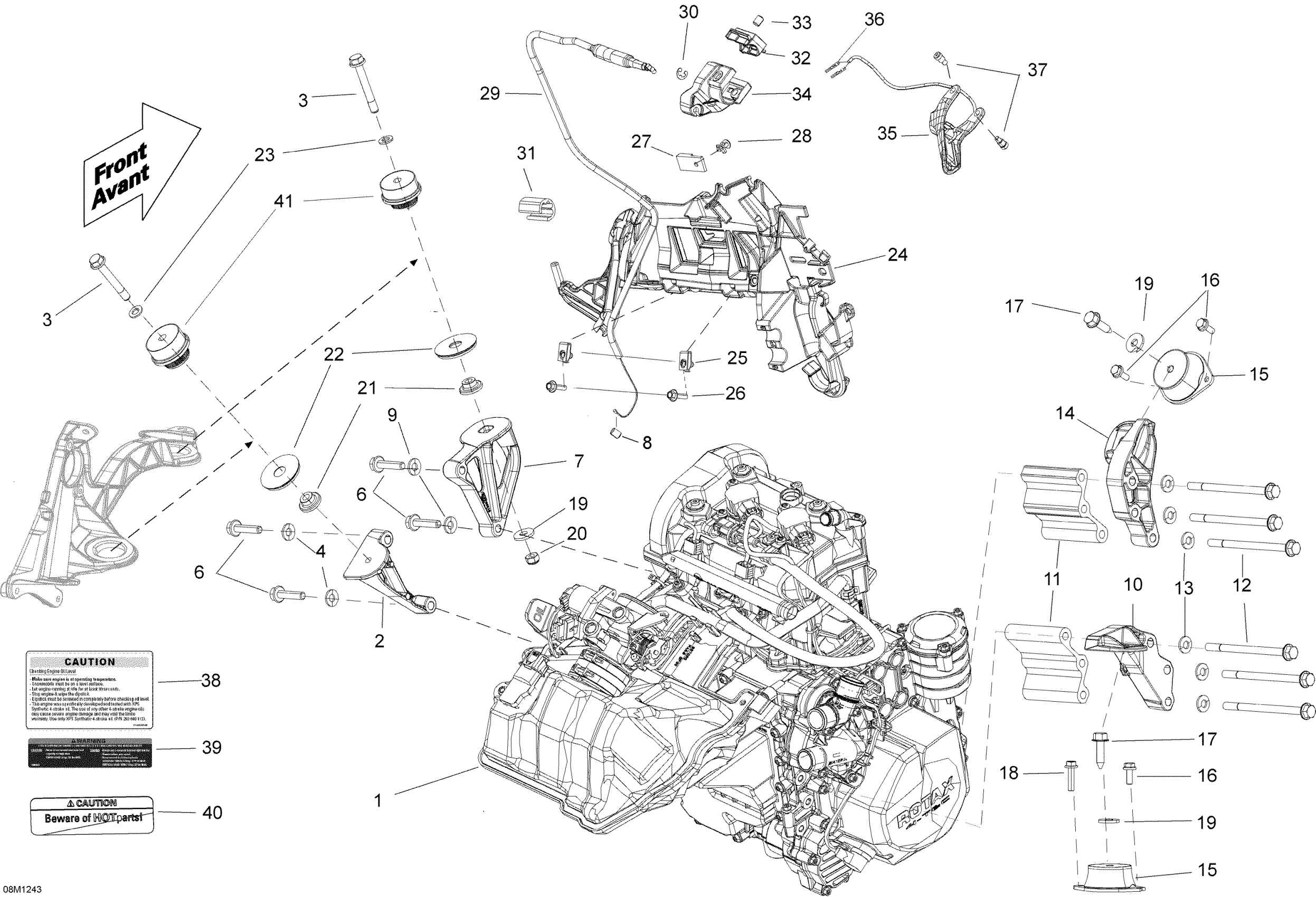

Ski-Doo Skandic WT 600 ACE (4-strokes), 2012 Engine And Engine Support Diagram

#

Description
Price

1

Long Block 602

420060203

Unavailable

2

Rear Support PTO

512061139

$23.82

3

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

Unavailable

4

Conical Spring Washer M8

234281474

$1.25

6

Hex. Flange Screw M8 X 35

250000986

$1.74

7

Front Support PTO

512061140

$17.66

8

Cable Guide

707000434

Unavailable

9

Conical Spring Washer M8

234281474

$1.25

10

Rear Support MAG

512061142

$27.66

11

Shim

512060505

$42.28

12

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$11.52

13

Conical Spring Washer M8

234281474

$1.25

14

Front Support, MAG

512060663

$18.43

15

Rubber Mount

512060729

$69.97

16

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

17

Cone Screw, M8 X 30

250000257

$1.72

18

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.06

19

Yellow, Washer

503183200

Unavailable

20

Hex. Elastic Stop Nut M8

232581414

Unavailable

21

Spacer

512060285

$17.66

22

Stopper

512061203

$12.52

23

Flat Washer With Teflon 8 mm

250200008

Unavailable

24

MODULE SUPPORT - Call your local BRP dealership

512060509

$10.32

25

Panel Nut M5 X 0.8

250000958

Unavailable

26

Torx Screw M5 X 20

250000724

Unavailable

27

Clip

270000141

$8.33

28

Avdel Rivet

293150027

Unavailable

29

Throttle Cable

512060607

$77.66

30

Circlip

414274500

Unavailable

31

Protector

512060313

$9.31

32

Upper Housing Ass'y

512060198

Unavailable

33

Socket Set Screw M8 X 10

414440800

$4.00

34

Lower Housing

512060860

Unavailable

35

Throttle Handle Ass'y

512061252

Unavailable

36

Male Terminal

515175232

$1.49

37

Flange Screw

732601143

$4.02

38

Caution Decal, Oil Level

516005521

Unavailable

39

Warning Decal

516003927

Unavailable

40

Caution Label, Air Intake

516004651

Unavailable

41

Vibration Damper

512061516

$57.66
