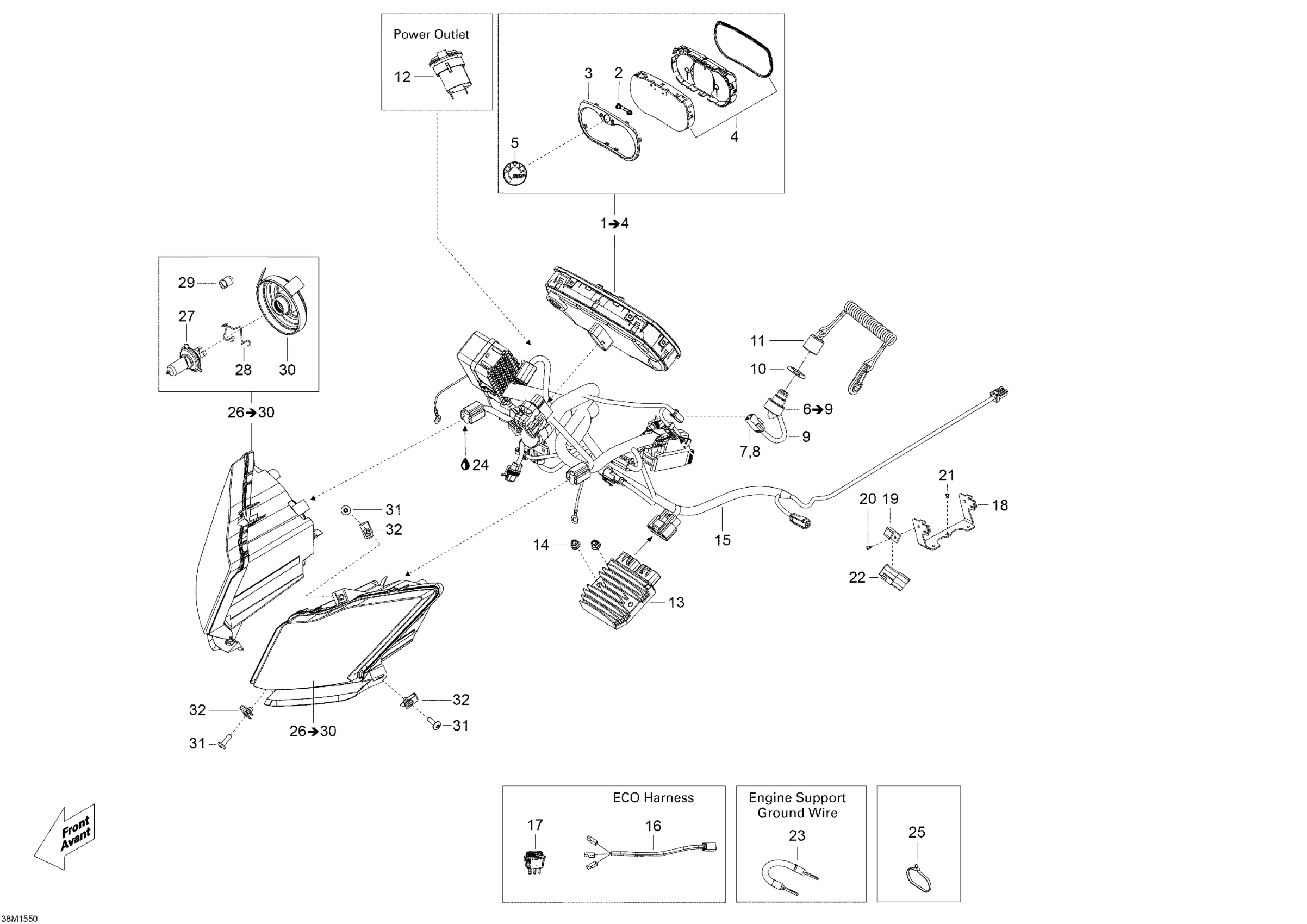

Ski-Doo Skandic WT 600 ACE, 2015 Electrical System _38M1550 Diagram
#
Description
Price
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
BRP Logo 20MM x 2MM | XTP
516006224
Unavailable
6
DESS Switch
515177249
Unavailable
9
Tubing 12 mm
409902000
Unavailable
11
DESS
515178284
Unavailable
11
DESS CAP (LEARNING KEY) - Call your local BRP dealership
860200907
Unavailable
14
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
15
WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 To WMS
515177675
Unavailable
15
WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 To WMS
515177631
Unavailable
16
Eco Switch Wiring Harness This part replaces 515177568.
515179615
Unavailable
24
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
25
Tie Wrap 142 mm
293750002
Unavailable
26
RH Headlamp Ass'y | Includes 2400 to 2400c
517304194
Unavailable
26
LH Headlamp Ass'y | Includes 2600 to 2600c
517304195
Unavailable
27
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
29
Cap
515176498
Unavailable
30
Rubber Cap Protector
219800280
Unavailable
31
Torx Screw M6 X 20
250000722
Unavailable
32
Panel Nut M6 X 1.0
250100198
Unavailable
