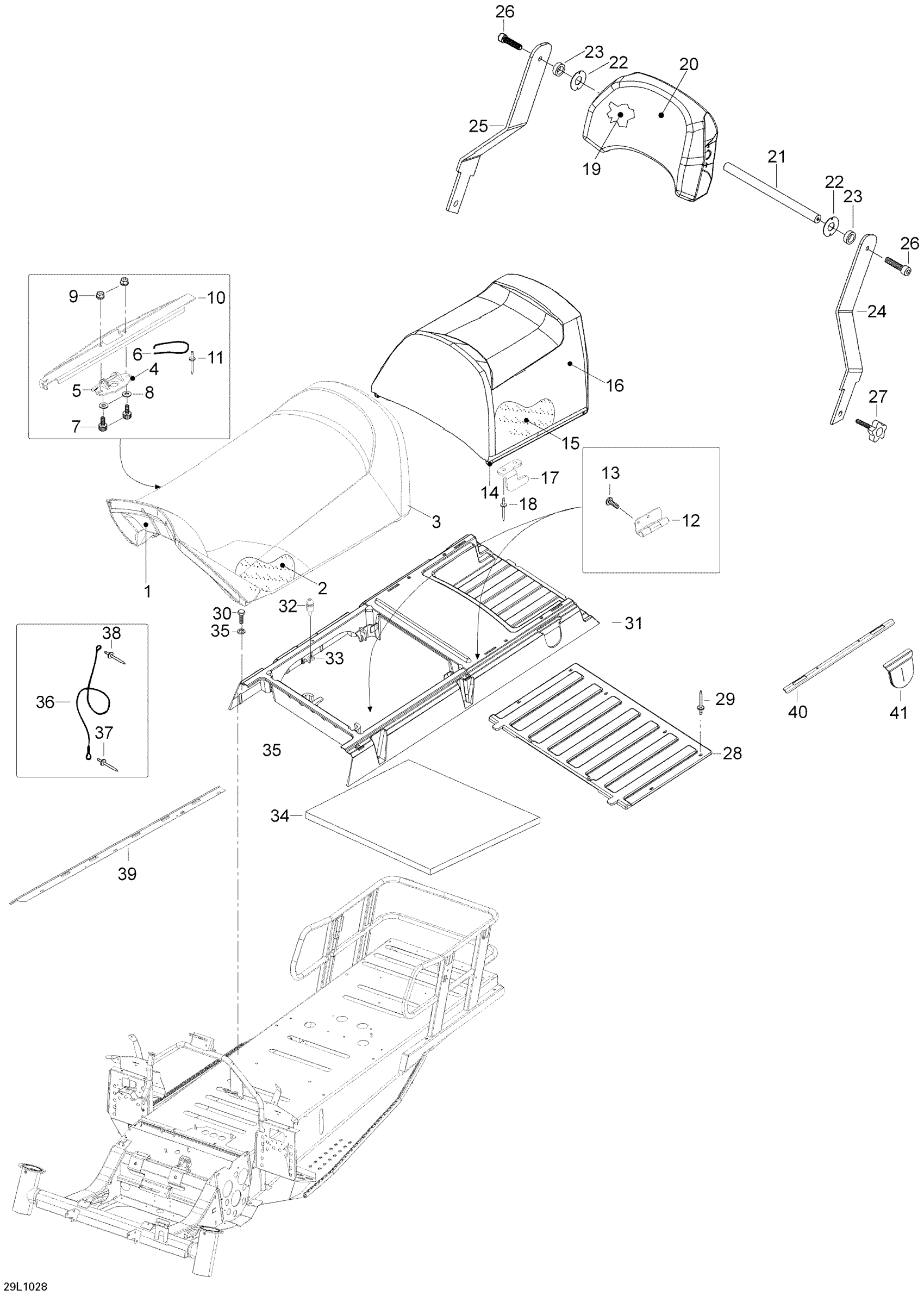

Ski-Doo Skandic WT 600, 2010 Seat Diagram

#

Description
Price

1

SEAT BASE, FRONT - Call your local BRP dealership

605251388

Unavailable

2

Seat Foam

605255689

Unavailable

3

SEAT FRONT COVER, SUV - Call your local BRP dealership

605255216

Unavailable

4

Latch Ass'y

269700109

Unavailable

5

Latch Ass'y

269700109

Unavailable

6

Latch Spring

269700017

$7.27

7

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

M40276

Unavailable

8

Flat Washer 6 mm

234061410

Unavailable

9

Elastic Stop Nut M6

232561414

Unavailable

10

SUPPORT PLATE - Call your local BRP dealership

605352483

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Hinge

605351798

Unavailable

13

Screw 4,2 X 16

M40890

Unavailable

14

SEAT BASE, REAR - Call your local BRP dealership

605251390

Unavailable

15

REAR SEAT FOAM - Call your local BRP dealership

605255691

Unavailable

16

SEAT COVER, SUV - Call your local BRP dealership

605255218

Unavailable

17

LH HOOK - Call your local BRP dealership

605351808

Unavailable

17

RH HOOK - Call your local BRP dealership

605352007

Unavailable

18

Rivet This part replaces M36087.

36087

$1.02

19

BACKREST FOAM - Call your local BRP dealership

510004365

Unavailable

20

BACKREST COVER - Call your local BRP dealership

605355498

Unavailable

21

BACKREST AXLE - Call your local BRP dealership

605355357

Unavailable

22

WASHER - Call your local BRP dealership

605355358

Unavailable

23

Rubber Shim

510004378

Unavailable

24

LH ARM - Call your local BRP dealership

605355499

Unavailable

25

RH ARM - Call your local BRP dealership

605355500

Unavailable

26

SCREW M10X20 - Call your local BRP dealership

605640010

Unavailable

27

Handle M8 X 35 | Model-T3

510003533

Unavailable

28

FRAME COVER - Call your local BRP dealership

605255587

Unavailable

29

Black, Rivet

M36036

Unavailable

30

Hex. Screw M6 X 16

207161644

Unavailable

31

SEAT BASE - Call your local BRP dealership

605155585

Unavailable

32

LOCK PIN - Call your local BRP dealership

605452035

Unavailable

33

Elastic Stop Nut M6

232561414

Unavailable

34

FOAM - Call your local BRP dealership

605355635

Unavailable

35

Lock Washer M6, Black

234161471

$0.52

36

Seat Retainer Cable

293750070

$10.23

37

Black Rivet

36037

$1.48

38

Rivet This part replaces M36009.

36009

Unavailable

39

RH SEAT BRACKET - Call your local BRP dealership

605255762

Unavailable

39

Tie for Seat box - Call your local BRP dealership

605255761

Unavailable

40

REAR SEAT SUPPORT - Call your local BRP dealership

605355816

Unavailable

41

CAP - Call your local BRP dealership

605355589

Unavailable
