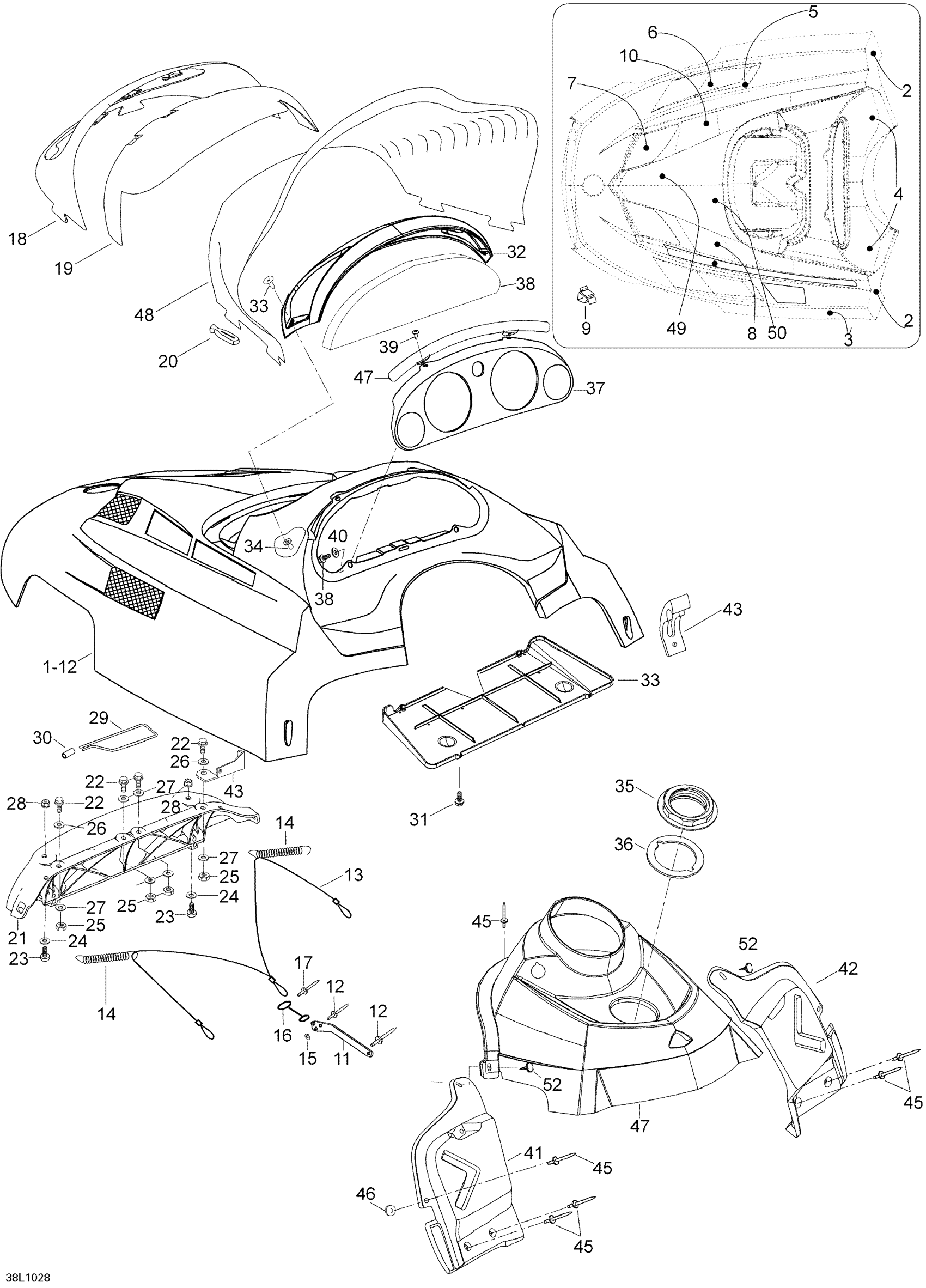

Ski-Doo Skandic WT 600, 2010 Hood Diagram

#

Description
Price

1

HOOD PRE ASS'Y, YELLOW - Call your local BRP dealership

605155308

Unavailable

2

ISOLATION REAR LH - Call your local BRP dealership

605350906

Unavailable

2

ISOLATION REAR RH - Call your local BRP dealership

605350907

Unavailable

3

ISOLATION REAR RH - Call your local BRP dealership

605350908

Unavailable

4

LOWER ISOLATION REAR LH - Call your local BRP dealership

605350909

Unavailable

4

UPPER ISOLATION REAR RH - Call your local BRP dealership

605350910

Unavailable

5

HEAT PROTECTOR - Call your local BRP dealership

605350922

Unavailable

6

LH UPPER GRILL - Call your local BRP dealership

605350923

Unavailable

6

Cover

605355758

Unavailable

7

LH LOWER GRILL - Call your local BRP dealership

605350925

Unavailable

7

RH LOWER GRILL - Call your local BRP dealership

605350926

Unavailable

8

LH GRILL - Call your local BRP dealership

605350927

Unavailable

9

Edge Clip

517302785

Unavailable

10

ISOLATION REAR CENTER LH - Call your local BRP dealership

605350911

Unavailable

11

BRACKET - Call your local BRP dealership

605452657

Unavailable

12

RIVET - Call your local BRP dealership

M36002

Unavailable

13

Retainer Cable

605351372

Unavailable

14

Spring This part replaces M5442675.

5442675

Unavailable

15

Washer

M20001

Unavailable

16

Cable Keeper

M5442870

Unavailable

17

RIVET - Call your local BRP dealership

M36097

Unavailable

18

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

Unavailable

19

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

20

Windshield Latch

570023800

Unavailable

21

Hinge

517302631

Unavailable

22

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Washer

20117

$5.22

25

Elastic Stop Nut M6

232561414

Unavailable

26

Flat Washer 6 mm

234061410

Unavailable

27

Flat Washer 6 mm

234062410

$0.64

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

29

Pin

605454779

Unavailable

30

BUSHING - Call your local BRP dealership

605454780

Unavailable

31

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

32

COVER - Call your local BRP dealership

605151832

Unavailable

33

Screw M4 X 18

M40061

Unavailable

34

Well-nut

M28051

Unavailable

35

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

36

Gasket

M5447116

Unavailable

37

INDICATOR SUPPORT - Call your local BRP dealership

605354134

Unavailable

38

FILTER - Call your local BRP dealership

605352583

Unavailable

VELCRO 1/2? - Call your local BRP dealership

415110900

Unavailable

39

Screw

M40888

Unavailable

40

WASHER - Call your local BRP dealership

M20039

Unavailable

41

LH CONSOLE - Call your local BRP dealership

605251384

Unavailable

42

RH CONSOLE - Call your local BRP dealership

605251922

Unavailable

43

Hood Latch

517302152

Unavailable

44

MAIN CONSOLE - Call your local BRP dealership

605251076

Unavailable

45

Black Rivet

36037

$1.48

46

Washer 5,3 mm

20008

Unavailable

47

SUPPORT PLATE - Call your local BRP dealership

605352586

Unavailable

48

Windshield

605152073

Unavailable

49

ISOLATION CENTER LH - Call your local BRP dealership

605350912

Unavailable

49

ISOLATION CENTER RH - Call your local BRP dealership

605350913

Unavailable

50

HEAT PROTECTOR - Call your local BRP dealership

605350922

Unavailable
