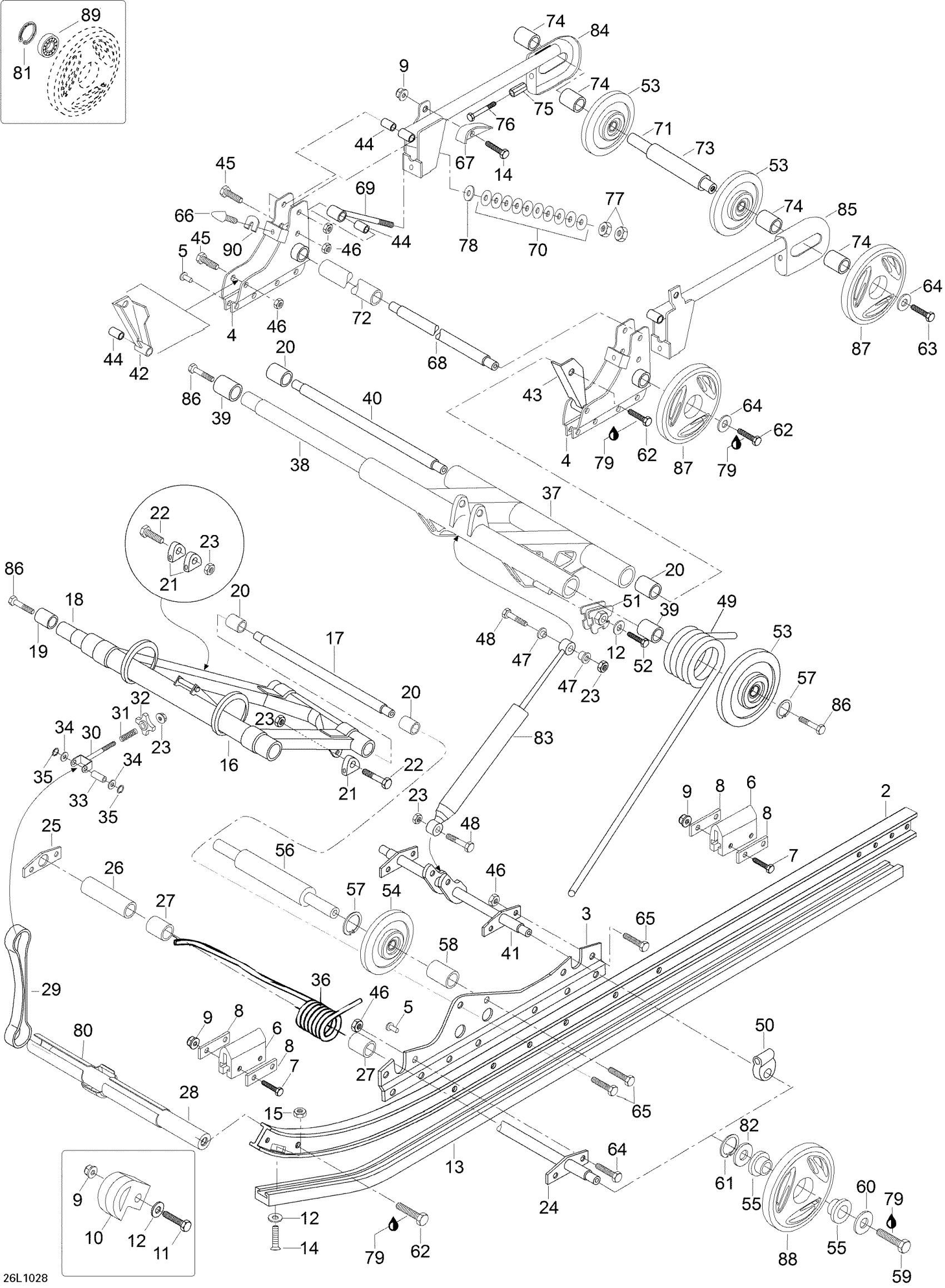

Ski-Doo Skandic WT 600, 2010 Rear Suspension Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

RUNNER - Call your local BRP dealership This part replaces M5142864.

5142864

Unavailable

3

Support Plate Rh This part replaces M5344811.

5344811

Unavailable

3

Support Plate Lh This part replaces M5344810.

5344810

Unavailable

4

Support For Rearaxle Rh This part replaces M539673.

539673

Unavailable

4

Support For Rearaxle Lh This part replaces M539672.

539672

Unavailable

5

RIVET - Call your local BRP dealership

M544212

Unavailable

6

RUBBER STOPPER - Call your local BRP dealership

570023100

Unavailable

7

Hex. Screw M6 X 40

207064044

$1.48

8

Washer

M548387

Unavailable

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

10

Runner Protector

605348954

Unavailable

11

Hex. Screw M6 X 25

207162544

Unavailable

12

Flat Washer 6 mm

234061410

Unavailable

13

Runner Shoe

M549582

Unavailable

14

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

15

Elastic Stop Nut M6

232561414

Unavailable

16

Front arm - Call your local BRP dealership

605255303

Unavailable

17

Shaft This part replaces M549695.

549695

Unavailable

18

Bogie Shaft This part replaces M542793.

542793

Unavailable

20

Shaft Sleeve This part replaces M542770.

542770

Unavailable

21

Spring Roller This part replaces M548799.

548799

Unavailable

22

Hex. Screw M10 X 40

207004044

$4.65

23

Elastic Locking Nut M10 X 1.5

233601416

$1.68

24

Axle

M5345453

Unavailable

25

Plate Support

M548469

Unavailable

26

Sleeve

M5440313

Unavailable

27

Sleeve

M548841

Unavailable

28

Cross Shaft

M549718

Unavailable

29

STOPPER STRAP - Call your local BRP dealership

605454841

Unavailable

30

Bolt-Eye Adjuster

M5441643

Unavailable

31

SPRING - Call your local BRP dealership

414460600

$5.58

32

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

33

Pin

M5441645

Unavailable

34

Flat Washer 10 mm

234001410

Unavailable

35

Circlip

M41035

Unavailable

36

RH Front Arm Spring

605354840

Unavailable

36

LH Spring Front Arm

605354839

Unavailable

37

Reararm - Call your local BRP dealership This part replaces M5343493.

5343493

Unavailable

38

Shaft This part replaces M5343492.

5343492

Unavailable

39

Bearing This part replaces M31023.

31023

Unavailable

40

Swing shaft - Call your local BRP dealership This part replaces M549656.

549656

Unavailable

41

SHAFT - Call your local BRP dealership This part replaces M5345454.

5345454

Unavailable

42

Crank Arm R.H. This part replaces M5440350.

5440350

Unavailable

43

Crank Arm Lh This part replaces M5440349.

5440349

Unavailable

44

Spacer This part replaces M545758.

545758

Unavailable

45

Hex. Screw M8 X 45

207084544

Unavailable

46

Hex. Elastic Stop Nut M8

232581414

Unavailable

47

Shock Spacer - Call your local BRP dealership This part replaces M544417.

544417

Unavailable

48

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

49

Spring R.H. This part replaces M538806.

538806

Unavailable

49

Spring L.H. This part replaces M538805.

538805

Unavailable

50

SPRING SUPPORT - Call your local BRP dealership

M5442112

Unavailable

51

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

51

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

52

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

53

Thin Wheel 165

503189478

Unavailable

54

Wheel 139 mm Ass'y

503190798

Unavailable

55

Cushion

503189534

Unavailable

56

Support Shaft

M549680

Unavailable

57

Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.

31001

Unavailable

58

Sleeve

M546577

Unavailable

59

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

60

Washer

503183100

$3.08

61

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

Unavailable

62

Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.

40335

$3.11

63

Hex. Screw With Nylon Patch

M40050

Unavailable

64

Washer

503183300

$5.68

65

Hex. Screw M8 x 16

207181644

$0.87

66

Rubber Stopper - Call your local BRP dealership This part replaces M535455.

535455

Unavailable

67

Protector

M548262

Unavailable

68

Axle This part replaces M541816.

541816

Unavailable

69

BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.

5440377

Unavailable

70

Cup Spring This part replaces M25004.

25004

Unavailable

71

SHAFT - Call your local BRP dealership

M5343284

Unavailable

72

Sleeve

M541815

Unavailable

73

SLEEVE - Call your local BRP dealership

M5443285

Unavailable

74

Sleeve

M546577

Unavailable

75

Spacer

605633002

Unavailable

76

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

77

Hex. Nut M10 X 1.5

232006414

$1.11

78

Flat Washer 10 mm This part replaces M20011.

234002410

Unavailable

79

Loctite 243, 10 ml

293800060

$20.77

80

Retainer for stopper strap - Call your local BRP dealership

605349381

Unavailable

81

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

Unavailable

82

SHIM - Call your local BRP dealership

M31091

Unavailable

83

SHOCK - Call your local BRP dealership

503189997

Unavailable

84

EXTENSION WELDELD RH - Call your local BRP dealership

605252505

Unavailable

85

EXTENSION WELDELD LH - Call your local BRP dealership

605252504

Unavailable

86

Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.

40314

$2.94

87

Wheel 165 mm Yellow

503190817

Unavailable

88

WHEEL 139 MM - Call your local BRP dealership

503190815

Unavailable

89

Ball Bearing

293350115

Unavailable

90

Adjustment Plate This part replaces M5440645.

5440645

Unavailable
