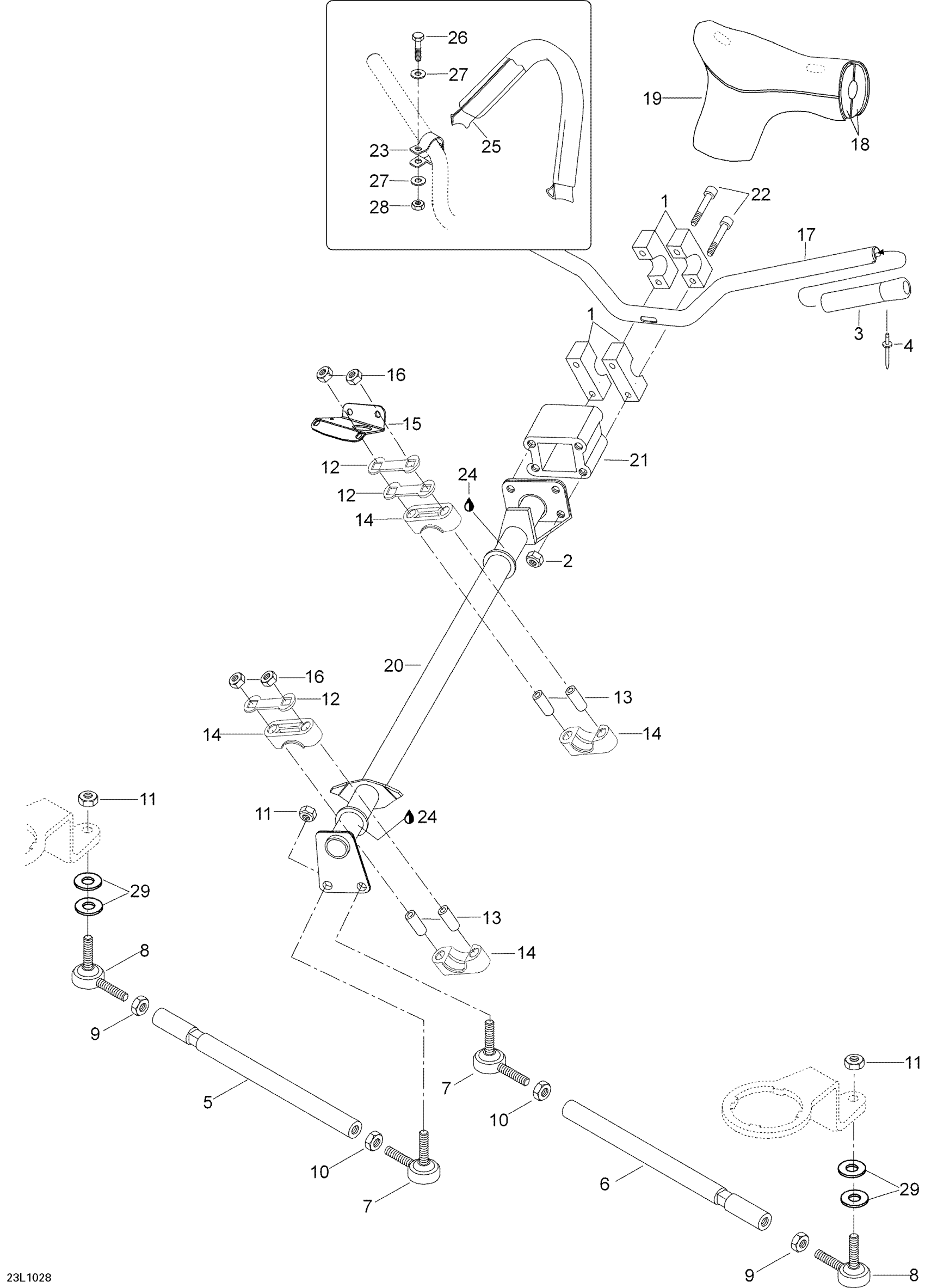

Ski-Doo Skandic WT 600, 2010 Steering Diagram
#
Description
Price
1
Support Guidon *Support-Steer.
M548448
Unavailable
2
Hex. Elastic Stop Nut M8
232581414
Unavailable
4
Rivet
36005
Unavailable
5
ROD_LINK - Call your local BRP dealership
605455619
Unavailable
6
ROD_LINK - Call your local BRP dealership
605455620
Unavailable
7
LH JOINT BALL - Call your local BRP dealership
506151845
Unavailable
8
RH BALL JOINT - Call your local BRP dealership
506151492
Unavailable
9
RH NUT - Call your local BRP dealership
M33019
Unavailable
10
LH NUT - Call your local BRP dealership
M33017
Unavailable
11
Elastic Flange Nut M10
232501416
Unavailable
12
Stopper Plate
506150600
Unavailable
13
Housing Bushing
506150500
Unavailable
14
Housing Half
506150400
Unavailable
15
CONSOLE HOLDER - Call your local BRP dealership
605352322
Unavailable
16
Hex. Flange Elastic Nut M8
233281414
Unavailable
17
HANDLE BAR - Call your local BRP dealership
605251368
Unavailable
18
FOAM, REAR - Call your local BRP dealership
605252111
Unavailable
18
FOAM, FRONT - Call your local BRP dealership
605252110
Unavailable
19
STEERING COVER - Call your local BRP dealership
605254571
Unavailable
20
MAIN TUBE - Call your local BRP dealership
605255608
Unavailable
21
EXTENSION - Call your local BRP dealership
605349584
Unavailable
22
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
M40124
Unavailable
24
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
293550033
Unavailable
26
Hex. Screw M6 X 25
207162544
Unavailable
27
Flat Washer 6 mm
234061410
Unavailable
28
Elastic Stop Nut M6
232561414
Unavailable
29
Washer
M31014
Unavailable
