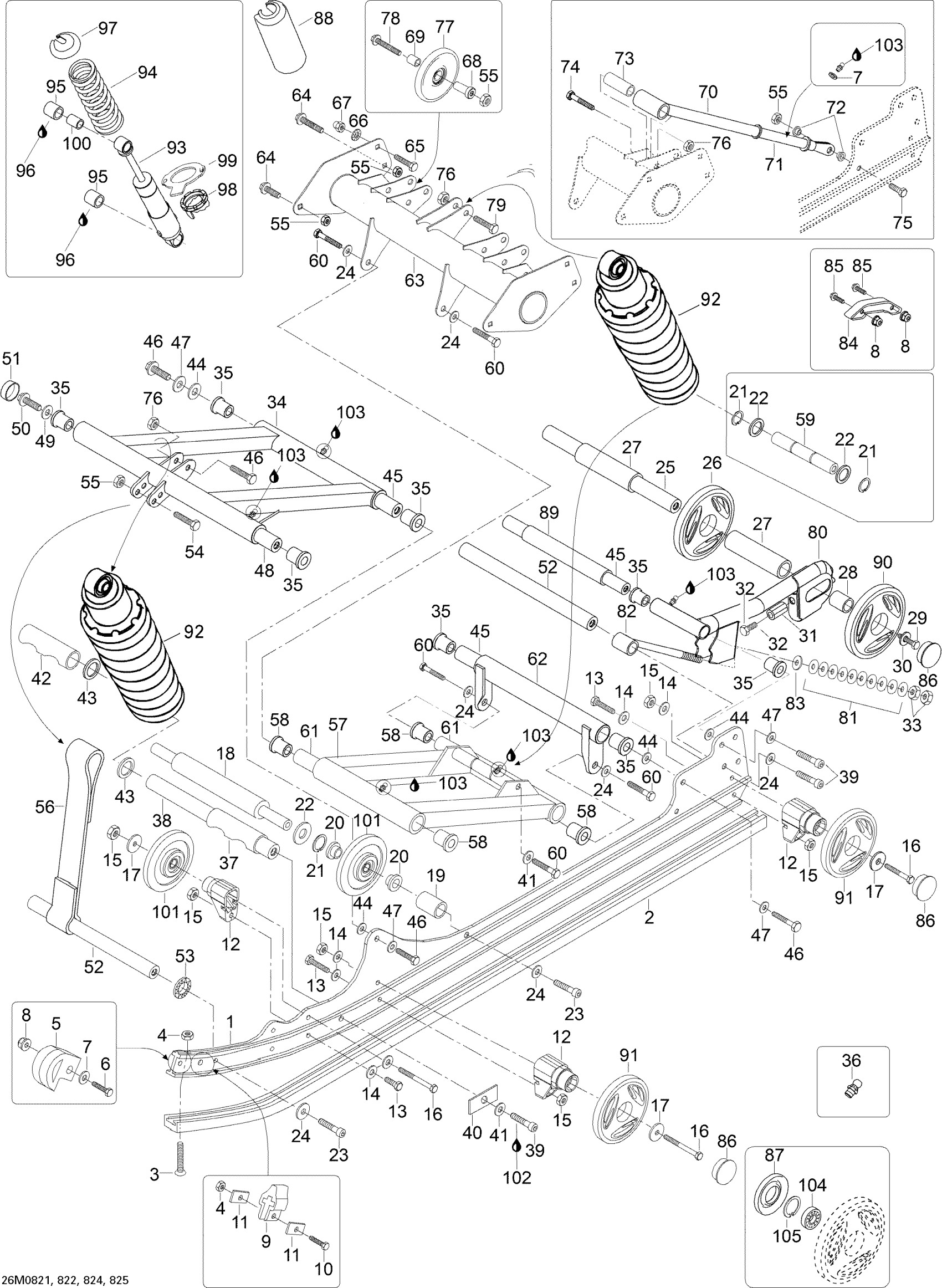

Ski-Doo Skandic WT 600, 2009 Rear Suspension WT 600 Diagram
#
1
RAIL_SUSPENSION MACHINED - Call your local BRP dealership
605253573
Unavailable
2
Slide Shoe
605355362
Unavailable
3
Screw M6X60
M40059
Unavailable
4
Elastic Stop Nut M6
232561414
Unavailable
5
Runner Protector
605348954
Unavailable
6
Hex. Screw M6 X 25
207162544
Unavailable
7
Flat Washer 6 mm
234061410
Unavailable
8
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
9
Rubber Stopper
M5448216
Unavailable
10
Hex. Screw M6 X 30
207063044
Unavailable
11
Plate
M548470
Unavailable
12
SUPPORT - Call your local BRP dealership
605450182
Unavailable
13
Hex. Screw M8 X 25
207182544
Unavailable
14
Flat Washer 8 mm
234081410
Unavailable
15
Hex. Elastic Stop Nut M8
232581414
Unavailable
16
Screw
M40089
Unavailable
18
Shaft, supportwheel - Call your local BRP dealership This part replaces M5347950.
5347950
Unavailable
19
Sleeve - Call your local BRP dealership This part replaces M5447951.
5447951
Unavailable
20
Cushion
503189534
Unavailable
21
Circlip 20X1.75 DIN471 This part replaces M31007.
293370056
Unavailable
22
SHIM - Call your local BRP dealership
M31091
Unavailable
24
WASHER M10 - Call your local BRP dealership
20005
Unavailable
25
SHAFT - Call your local BRP dealership
M5343284
Unavailable
26
Thin Wheel 165
503189478
Unavailable
27
Sleeve This part replaces M5444096.
5444096
Unavailable
28
Sleeve L=29
M5444098
Unavailable
29
Hex. Screw With Nylon Patch
M40050
Unavailable
31
Spacer
605633002
Unavailable
32
SCREW - Call your local BRP dealership
M40239
Unavailable
34
Front arm - Call your local BRP dealership
605255303
Unavailable
35
Cushion This part replaces M31024.
31024
Unavailable
36
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.
34011
Unavailable
37
Limiter - Call your local BRP dealership This part replaces M5347718.
5347718
Unavailable
38
Shaft This part replaces M5347726.
5347726
Unavailable
40
Support plate This part replaces M5447940.
5447940
Unavailable
41
Lock Washer D10
20068
Unavailable
42
SLEEVE - Call your local BRP dealership
M5346649
Unavailable
43
Shim Ring This part replaces M31013.
31013
Unavailable
44
Shim This part replaces M20116.
20116
Unavailable
45
Lower Shaft, Front Arm This part replaces M5347713.
5347713
Unavailable
46
Hex. Screw M10 X 45
207004544
Unavailable
47
Lock Washer
512056700
Unavailable
48
Upper Shaft This part replaces 605348606.
5347719
Unavailable
49
Conical Spring Washer
M20090
Unavailable
50
Screw M12 X 60
M40243
Unavailable
51
Cap
M5448025
Unavailable
52
Shaft This part replaces M5347717.
5347717
Unavailable
53
Washer
M4181158
Unavailable
54
Hex. Screw M8 X 45
207084544
Unavailable
55
Hex. Elastic Stop Nut M8
232581414
Unavailable
56
STOPPER STRAP - Call your local BRP dealership This part replaces M5447919.
5447919
Unavailable
57
Rear Arm Weld Light
605349313
Unavailable
58
Flange Bearing (Cushion) This part replaces M31027.
31027
Unavailable
59
REARSHOCK SHAFT - Call your local BRP dealership
605451897
Unavailable
61
SHAFT - Call your local BRP dealership This part replaces M5346865.
5346865
Unavailable
62
Welded Rear Arm
M5347668
Unavailable
63
UPPER ARM - Call your local BRP dealership
605249988
Unavailable
64
Carriage Bolt, M8 X 20
207782044
Unavailable
65
Screw
M40056
Unavailable
66
Not Available As Spare Parts
XXX
Unavailable
67
Nut
M33044
Unavailable
68
FLANGED SLEEVE - Call your local BRP dealership
605450372
Unavailable
69
SLEEVE - Call your local BRP dealership
605450373
Unavailable
70
Poker tube This part replaces M5347851.
5347851
Unavailable
71
Axe *Shaft
M5347852
Unavailable
72
Insert
M5447853
Unavailable
73
Bearing sleeve - Call your local BRP dealership This part replaces M5447848.
5447848
Unavailable
74
HEX. SCREW M8 X 60 - Call your local BRP dealership
207086044
Unavailable
75
Hex. Screw M10 X 35
207103544
Unavailable
77
Idler Wheel
M46027
Unavailable
78
Hex. Screw M8 X 70
M40088
Unavailable
79
Hex. Screw M10 X 1.5 X 50
207005044
Unavailable
80
EXTENSION WELDELD RH - Call your local BRP dealership
605252505
Unavailable
80
EXTENSION WELDELD LH - Call your local BRP dealership
605252504
Unavailable
81
Cup Spring This part replaces M25004.
25004
Unavailable
82
Eye bolt adjuster This part replaces M5447373.
5447373
Unavailable
83
Flat Washer 10 mm This part replaces M20011.
234002410
Unavailable
84
Sliding Pad
503192731
Unavailable
85
BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.
207764044
Unavailable
86
Wheel Cap
570063600
Unavailable
87
LABYRINTH SEAL - Call your local BRP dealership
572089000
Unavailable
88
Shock Protector
M5346754
Unavailable
89
Sleeve
605448429
Unavailable
90
Wheel 165 mm
503190856
Unavailable
91
WHEEL 139 MM ASS'Y, FULL MOON - Call your local BRP dealership
503190796
Unavailable
92
CENTER SHOCK - Call your local BRP dealership
605350536
Unavailable
92
Shock Ass'y, Rear | Rear, Includes 92 to 99
605348909
Unavailable
93
Center Shock
M23204
Unavailable
93
REAR SHOCK - Call your local BRP dealership
M23162
Unavailable
94
SPRING, FRONT ARM - Call your local BRP dealership This part replaces M25065.
25065
Unavailable
94
White Spring
M25060
Unavailable
95
Cushion This part replaces M31094.
31094
Unavailable
96
Not Available As Spare Parts
XXX
Unavailable
97
Spring Seat
230076
Unavailable
98
CAM - Call your local BRP dealership
M230078
Unavailable
99
ARM ADJUSTING ASS'Y - Call your local BRP dealership
605348748
Unavailable
100
Bushing This part replaces M5446652.
5446652
Unavailable
101
Wheel 139 mm Ass'y
503190798
Unavailable
103
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
104
Ball Bearing
293350115
Unavailable
105
CIRCLIP - Call your local BRP dealership
371901700
Unavailable
