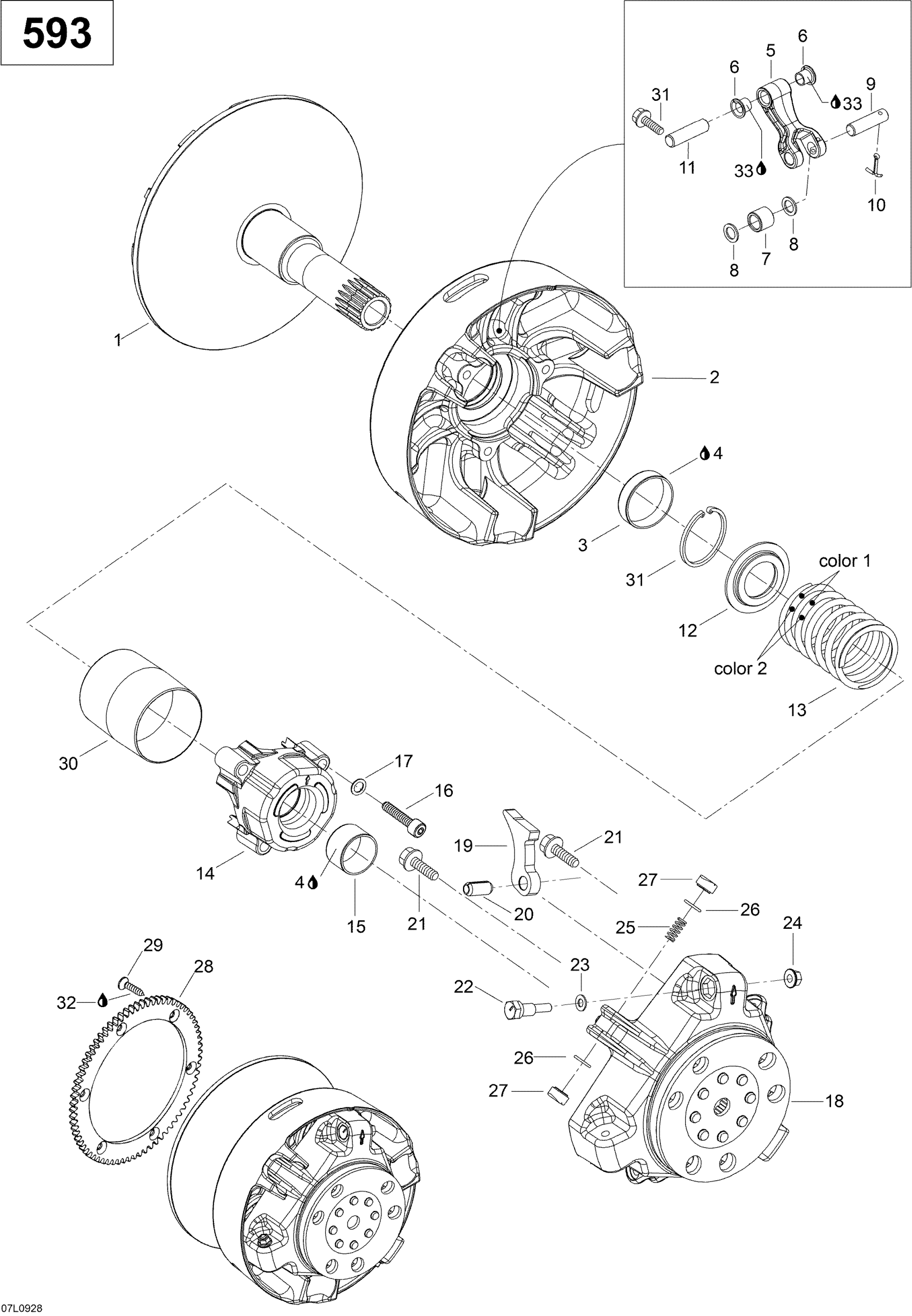

Ski-Doo Skandic WT 600, 2009 Drive Pulley Diagram

#

Description
Price

—

Not Available As Spare Part - Friction Washer

Unavailable

1

Fixed Flange Ass'y

417222937

$226.12

2

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

3

Bushing

417004201

Unavailable

4

Loctite 609, 10 ml

413703100

$24.58

5

Lever | Includes 10f to 10g

417222671

$32.28

6

Bushing

417004305

Unavailable

7

Roller

417222947

$19.97

8

Stopper Washer

417004302

$15.99

9

Pin

417222594

$14.11

10

Cotter Pin

250400060

$1.60

11

Lever Axle

417223164

$4.25

12

Spring Seat

417222312

$8.28

13

Tra Spring

414993000

$14.75

14

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

15

Bushing

417009204

$16.12

16

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

17

Lock Washer 8 mm

250200009

Unavailable

18

Governor Cup

417222213

Unavailable

19

Ramp 600

417222444

$32.28

20

Spring Pin M10 X 22

250400050

$2.38

21

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

22

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

23

Washer

417005600

$3.86

24

Hex. Flange Nut M6

233061414

Unavailable

25

Spring

417005700

Unavailable

26

O-Ring

732401030

$0.95

27

Slider Shoe This part replaces 420460045.

417223021

$6.09

28

Ring Gear_Starter This part replaces 417223738.

417225070

Unavailable

29

Hex. Screw M8 X 16

236281684

Unavailable

30

Guard

417009205

$16.89

31

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

32

Loctite 271, 10 ml

293800005

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable
