Description

Price

—

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$158.93

1

Flange Connector

420810868

$83.55

2

Socket Head Screw M6 x 16

420241237

$2.12

3

Starter Housing

420910256

$86.54

4

Rewind Spring

420939115

$29.07

5

Rope Sheave

420852288

$38.78

6

Was 412500100 Rope-Starter

219704403

$9.85

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Pawl

420852633

$31.31

9

Pawl Lock | Includes no. 8-9

420852640

$5.34

10

Stage Sleeve

420847926

$14.10

11

O-Ring

420250407

$1.79

12

Lock Ring

420852520

$8.09

13

Locking Element

420845560

$1.97

14

Torx Flange Screw M6 X 20

420441386

$2.00

15

Not Available As Spare Part - Friction Washer

Unavailable

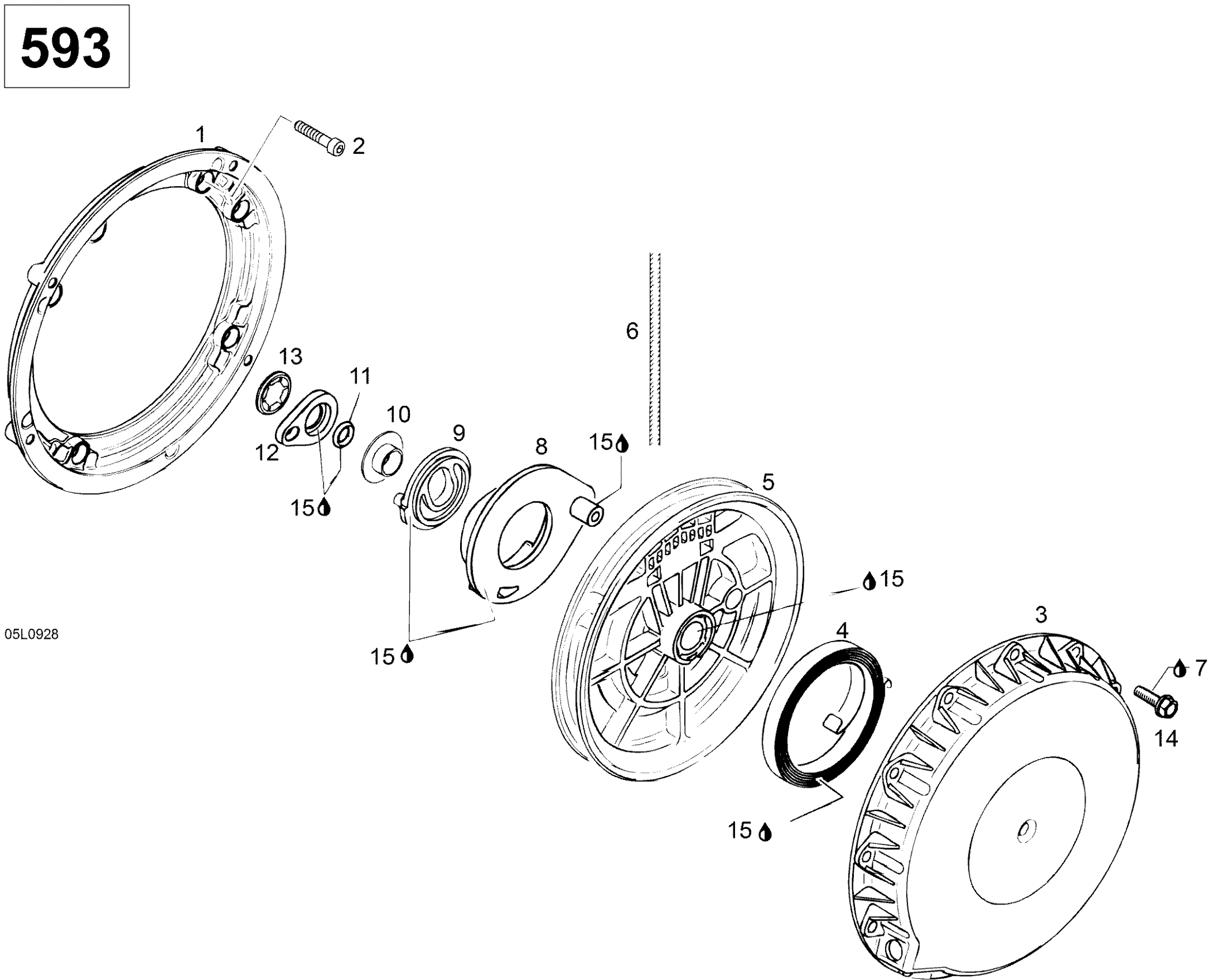

Ski-Doo Skandic WT 600, 2009 Rewind Starter Diagram

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

Flange Connector

Socket Head Screw M6 x 16

Starter Housing

Rewind Spring

Rope Sheave

Was 412500100 Rope-Starter

Not Available As Spare Part - Friction Washer

Pawl

Pawl Lock | Includes no. 8-9

Stage Sleeve

O-Ring

Lock Ring

Locking Element

Torx Flange Screw M6 X 20

Not Available As Spare Part - Friction Washer
