Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate A

420889905

Unavailable

3

Flywheel

420665722

$516.89

4

Pickup Ass'y

410922948

Unavailable

5

Socket Head Screw M6 X 30

205063044

Unavailable

6

Torx Screw M6 X 16

420640324

$2.06

7

Starting Pulley

420852590

$28.43

8

Flat Washer

420827405

$1.66

9

Socket Head Screw M8 X 12

420841520

$1.68

10

Loctite 243, 10 ml

293800060

$20.77

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Female Terminal

278000632

Unavailable

13

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

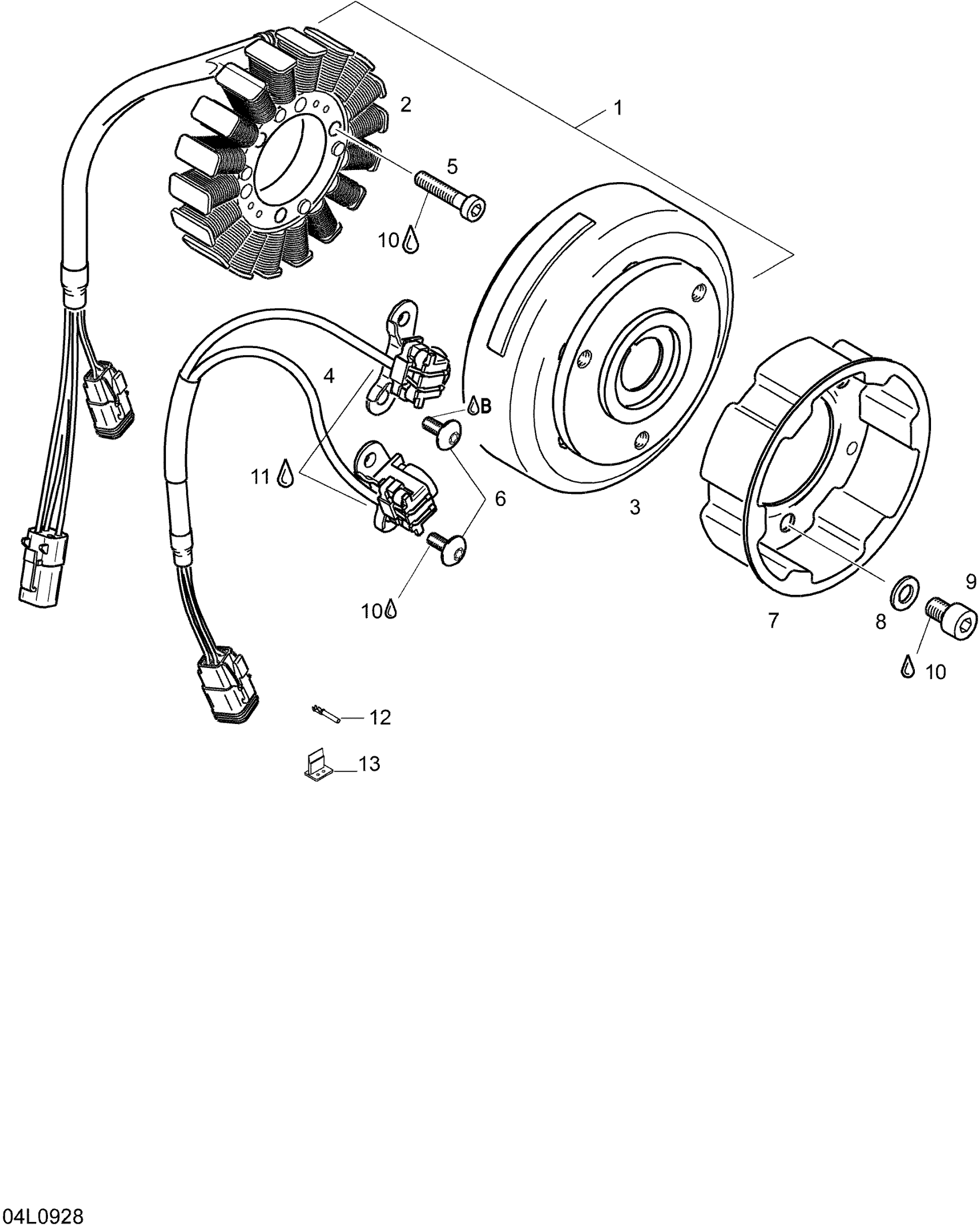

Ski-Doo Skandic WT 600, 2009 Magneto Diagram

Not Available As Spare Part - Friction Washer

Stator Plate A

Flywheel

Pickup Ass'y

Socket Head Screw M6 X 30

Torx Screw M6 X 16

Starting Pulley

Flat Washer

Socket Head Screw M8 X 12

Loctite 243, 10 ml

Not Available As Spare Part - Friction Washer

Female Terminal

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership
