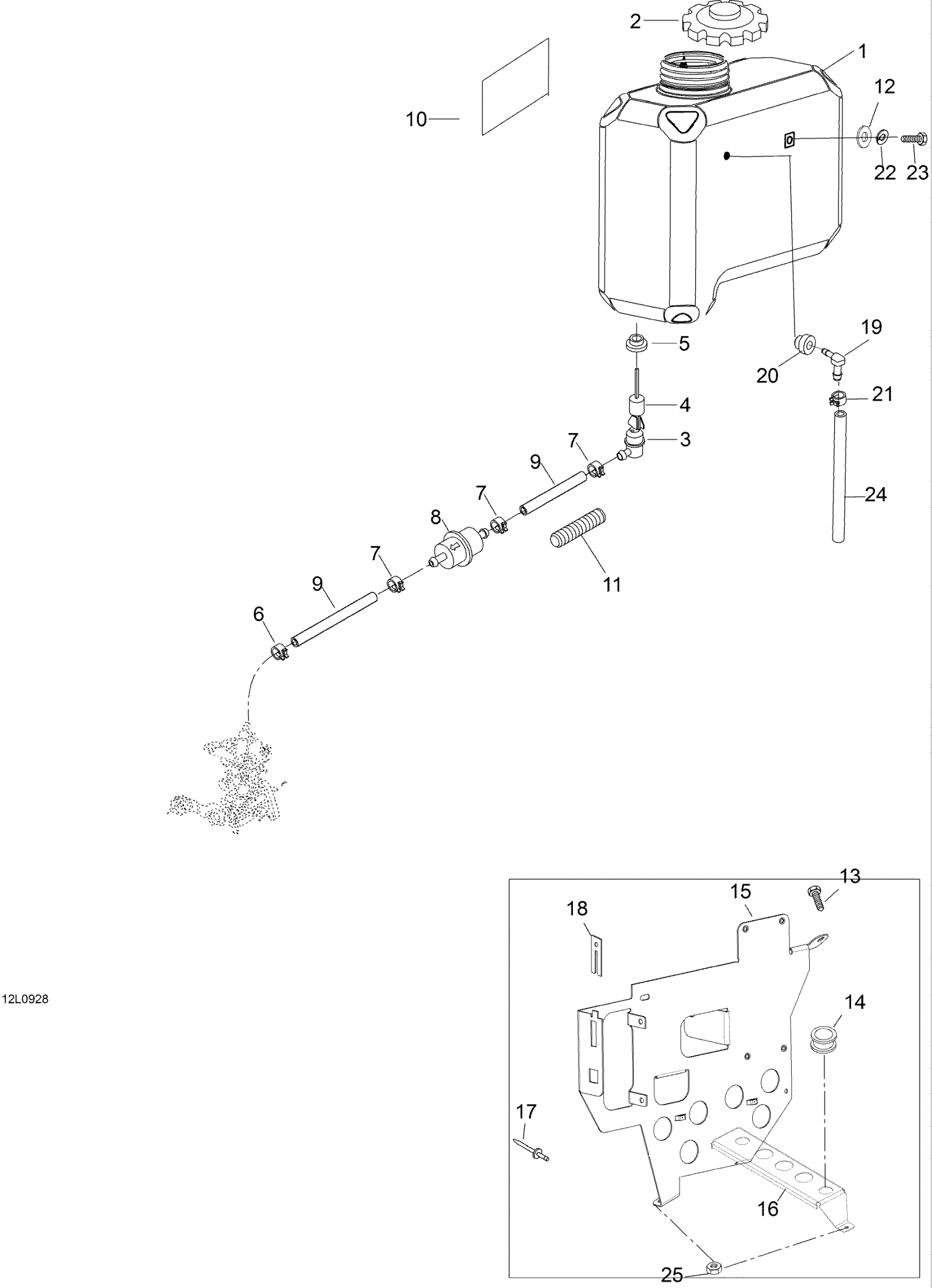

Ski-Doo Skandic WT 600, 2009 Oil System Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

605155569

Unavailable

2

CAP - Call your local BRP dealership

519000044

Unavailable

3

OIL SENSOR - Call your local BRP dealership

605452095

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Insulating Ring

570023000

Unavailable

6

Spring Clamp

414420700

Unavailable

7

Spring Clamp

414415200

$0.83

8

Filter

414536500

$3.25

9

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

10

Reflecting Sheet

M5443578

Unavailable

11

HOUSING - Call your local BRP dealership

M28015

Unavailable

12

Flat Washer 6 mm

234062410

$0.64

13

SCREW-M6X12 - Call your local BRP dealership

M40327

Unavailable

14

Passe-Fils *Grommet

M5446766

Unavailable

15

RESERVOIR SUPPORT - Call your local BRP dealership

605255412

Unavailable

16

AIR INTAKE SILENCER SUPPORT - Call your local BRP dealership

605355414

Unavailable

17

Rivet

36108

$1.85

18

LOCK - Call your local BRP dealership

M5447032

Unavailable

19

Male Connector

414580700

Unavailable

20

Grommet

709200285

$8.38

21

Spring Clamp

414554800

$0.83

22

Lock Washer M6, Black

234161471

$0.52

23

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

24

Polyurethane Hose 10000Mm Long

219704410

Unavailable

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
