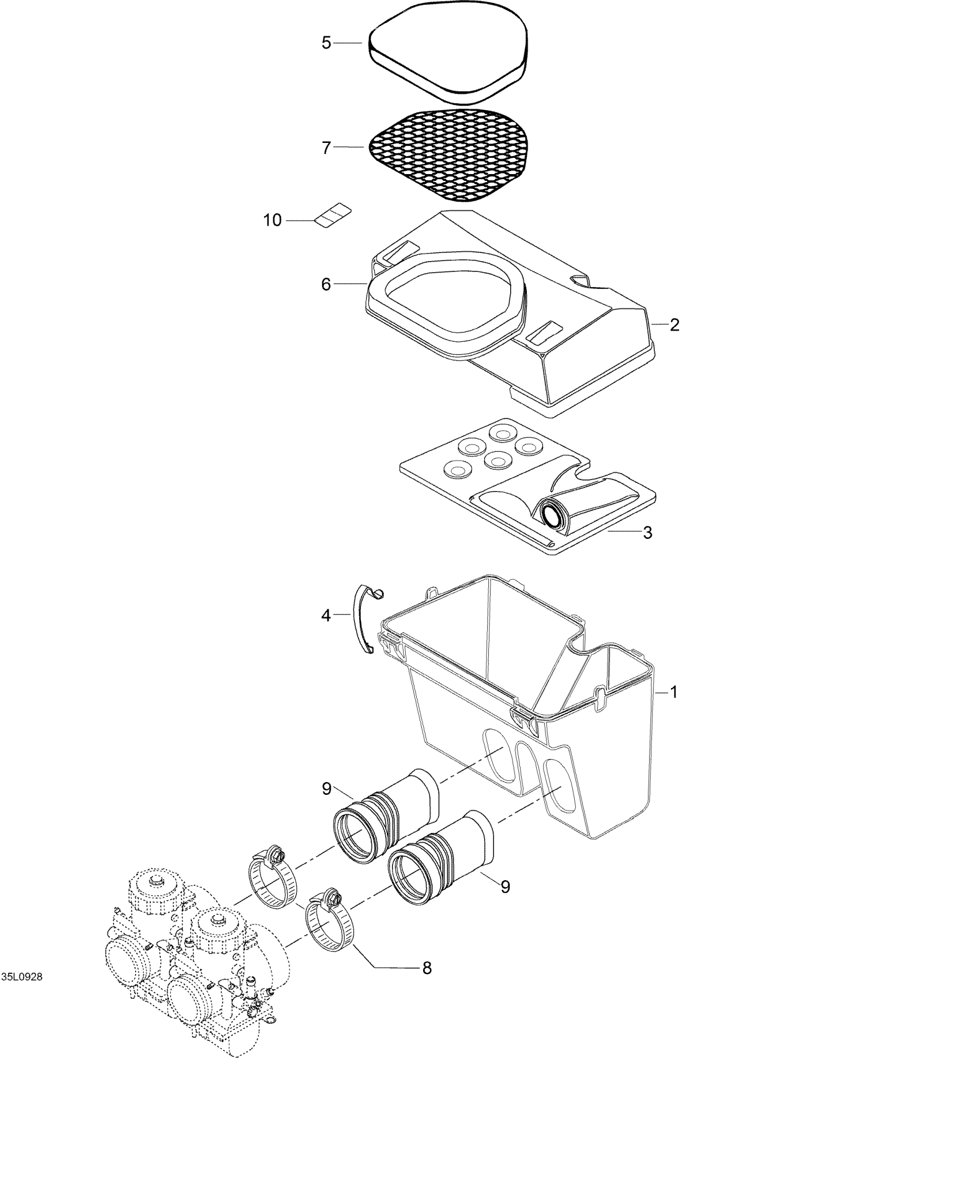

Ski-Doo Skandic WT 600, 2009 Air Intake System Diagram

#

Description

Price

1

Air Intake

M5148040

Unavailable

2

Intake Cover

M5147636

Unavailable

3

Tube Plate

M5346744

Unavailable

4

Lock Spring

M5448209

Unavailable

5

AIR FILTER - Call your local BRP dealership

605349057

Unavailable

6

Sealing foam This part replaces M5342959.

5342959

Unavailable

7

Intake Grill

M5342960

Unavailable

8

Clamp - Call your local BRP dealership This part replaces M27018.

27018

Unavailable

9

RH Air Intake Adaptor

570134300

Unavailable

9

ADAPTOR CARBURATOR - Call your local BRP dealership This part replaces M5346828.

5346828

Unavailable

10

CLAMP - Call your local BRP dealership

605628003

Unavailable
