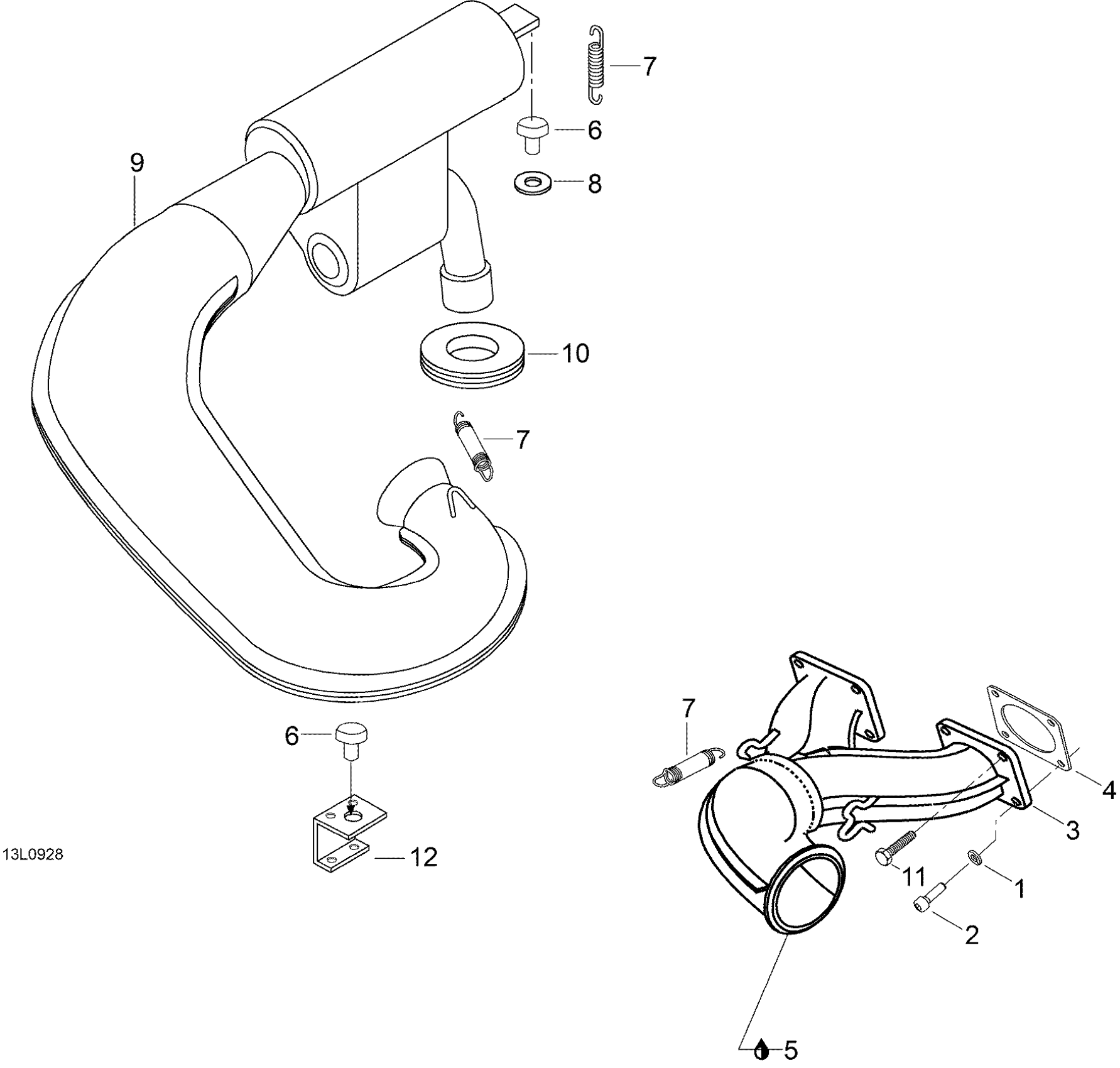

Ski-Doo Skandic WT 600, 2009 Exhaust System Diagram

#

Description

Price

1

Lock Washer 8 mm

234181401

Unavailable

2

Socket Head Screw M8 X 30

M40135

Unavailable

3

Branch-Y This part replaces M5245177.

5245177

Unavailable

4

Gasket

420931610

$11.38

5

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

6

Rubber Bumper

514053654

$49.20

7

Spring This part replaces 420938795.

420938796

Unavailable

8

Washer

M20087

Unavailable

9

EXHAUST ASS'Y - Call your local BRP dealership

605155511

Unavailable

10

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

11

Hex. Screw M8 X 20

207182044

$0.61

12

Support

M5442681

Unavailable
