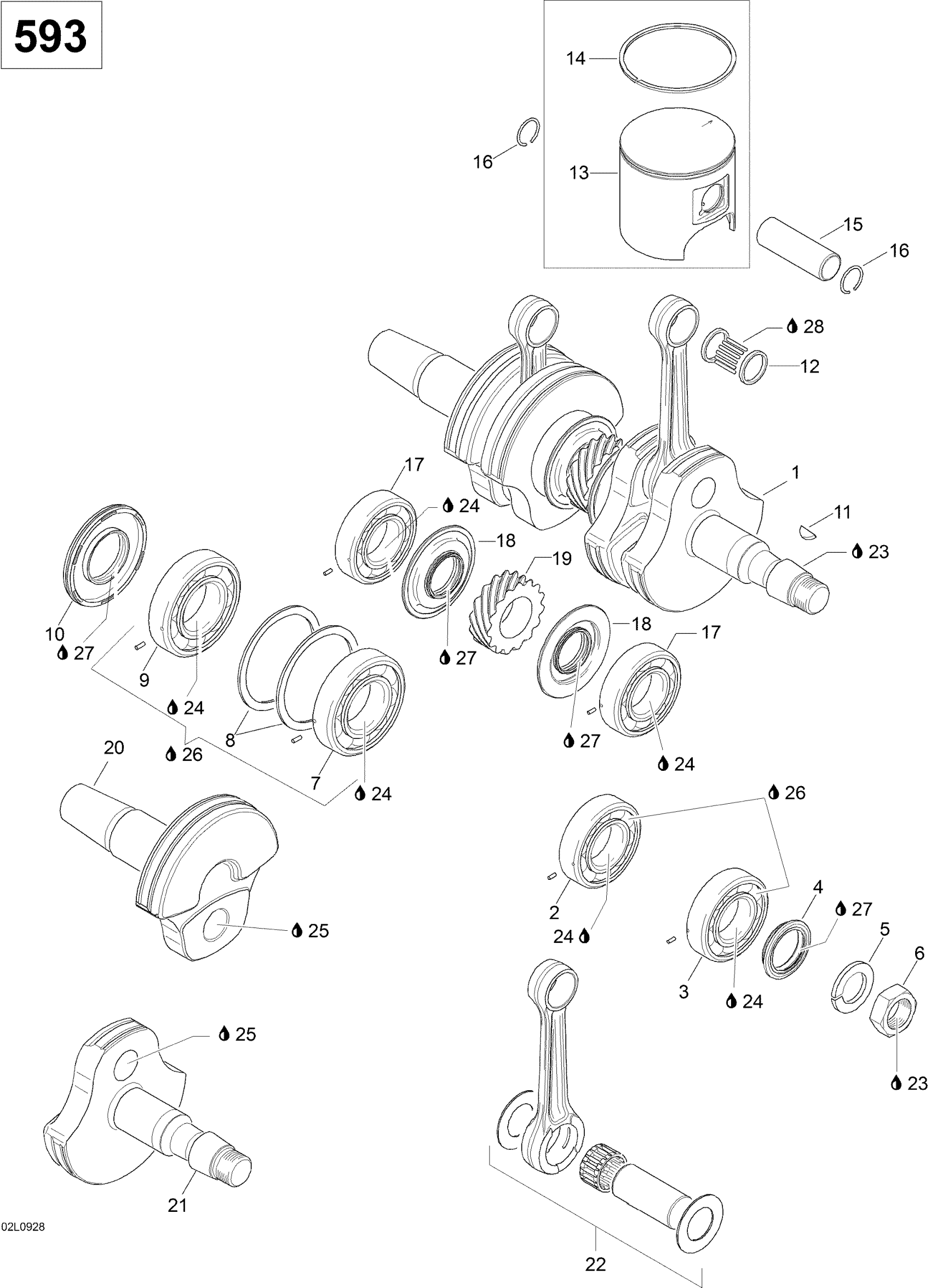

Ski-Doo Skandic WT 600, 2009 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 9

420890971

$869.99

1

Crankshaft Ass'y | Includes 1 to 9

420890971

$869.99

2

Ball Bearing

420832596

$93.05

3

Ball Bearing 6206

420832590

$46.12

4

Oil Seal

420931795

$16.89

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Ball Bearing Sealed, 6207

420832673

$96.89

8

Retaining Disk

420927710

Unavailable

9

Ball Bearing 6207 | With drive pin

420832575

Unavailable

10

Oil Seal This part replaces 290831952.

420831952

Unavailable

11

Woodruff Key

420246015

Unavailable

12

Needle Bearing

420832445

Unavailable

13

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

420889173

Unavailable

14

Semi-Trapez Ring, Standard

420815155

Unavailable

13

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

420889174

$174.58

14

Semi-Trapez Ring, 1st

420815156

Unavailable

15

Piston Pin

420916412

Unavailable

16

Piston Circlip

420845106

Unavailable

17

Ball Bearing 6206

420832590

$46.12

18

Oil Seal | Included in gasket kit

420931940

$29.97

19

Central Gear, 15 Teeth

420834350

$93.82

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Rod Repair Kit, MAG Side

420890973

$319.99

22

Rod Repair Kit, PTO Side

420890974

$319.99

23

Loctite 243, 10 ml

293800060

$20.77

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Sealant Loctite 648

219703000

Unavailable

26

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable

27

Petamo Grease, GHY133N, 400 g

420899271

Unavailable

28

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable
