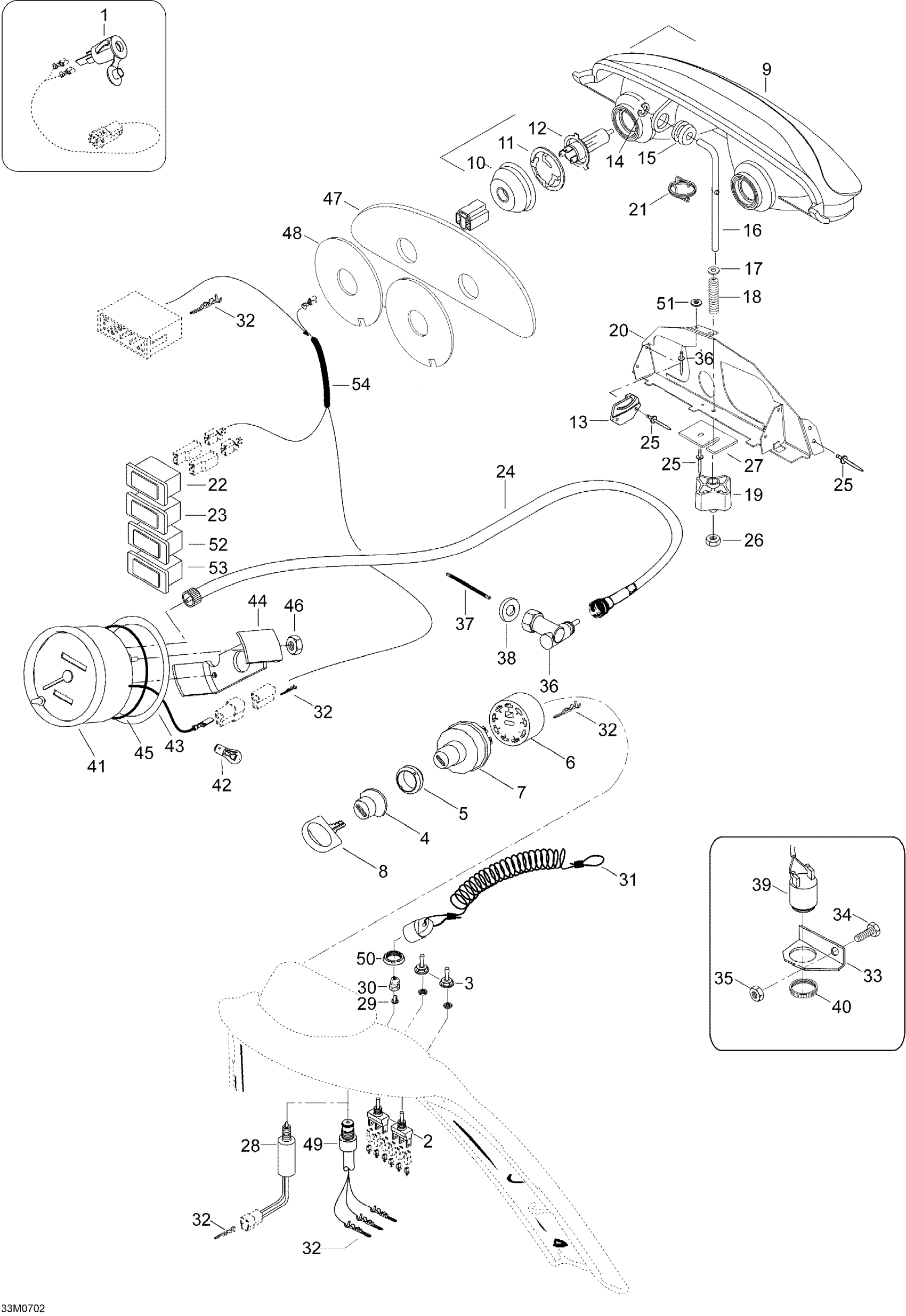

Ski-Doo Skandic WT 600, 2007 Electrical System WT 600 Diagram

#

Description
Price

1

DC Outlet

710001248

$31.17

2

Switch (Heating Grip) | FREERIDE

410107300

$34.58

3

Switch Cover

515175281

$15.03

4

Switch Boot

570013700

$10.82

5

FACE NUT - Call your local BRP dealership

410112100

$14.29

6

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

$8.77

7

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

8

Blank Key

415129350

Unavailable

9

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$288.43

12

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

11

BULB HOLDER - Call your local BRP dealership

515176385

$9.57

10

COVER - Call your local BRP dealership

515175911

Unavailable

13

RH Support

517289300

Unavailable

13

LH Support

517289400

Unavailable

14

Push Nut

732610072

$1.72

15

Grommet - Call your local BRP dealership

415100800

$3.97

16

ADJUSTER ROD - Call your local BRP dealership

M5448100

$23.05

17

Not Available As Spare Parts

XXX

Unavailable

18

SPRING - Call your local BRP dealership

415100600

$3.17

19

Handle - Call your local BRP dealership

515175548

$5.57

20

Support

M5248092

$21.51

21

Spring

M5445737

$11.06

22

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

$11.97

23

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

$12.43

24

Speedometer Cable This part replaces M5344162.

5344162

$76.89

25

Rivet

36005

$2.02

26

Elastic Stop Nut M6

232561414

$1.55

27

Washer 6mm

M5448320

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

Not Available As Spare Parts

XXX

Unavailable

31

DESS

515178284

$81.51

32

CONNECTOR - Call your local BRP dealership

605642628

$6.89

33

Support

M549459

$13.86

34

Hex. Screw M6 X 16

207161644

$0.61

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

36

Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.

35021

$129.20

37

Tige Vitesse *Branch-Key This part replaces M45009.

45009

Unavailable

38

Washer

M5444186

Unavailable

39

Back-Up Alarm

414792102

$143.05

40

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

41

Speedometer Kmh/mph

605152889

Unavailable

42

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

43

Washer

517258500

Unavailable

44

Case Holder

414806500

Unavailable

45

O-Ring

414807100

Unavailable

46

NUT M5 - Call your local BRP dealership

M33062

$1.35

47

Foam

M5247817

$12.65

48

Plastic Plate

M5447818

$7.74

49

DESS Switch

515177249

$106.12

50

Safety Nut (DESS Switch)

278002963

$2.72

51

Washer 5,3 mm

20008

$0.72

52

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable

53

PILOT LAMP D.E.S.S. - Call your local BRP dealership | SUV 600

605450484

Unavailable

54

Harness Ass'y

M5247805

Unavailable
