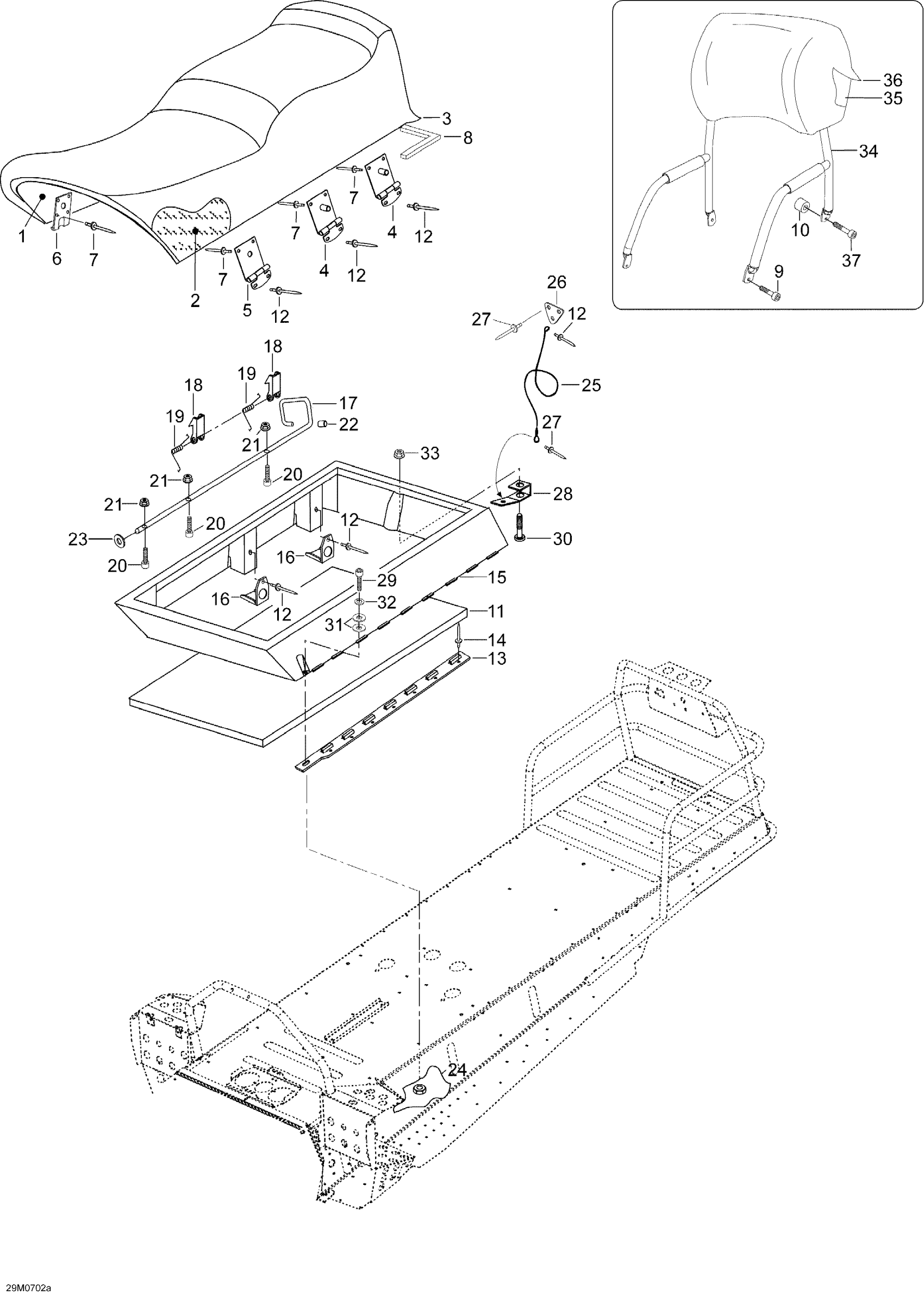

Ski-Doo Skandic WT 600, 2007 Seat WT 600 Diagram

#

Description
Price

1

Sub Seat

M519394

$99.99

2

Foam Seat

605150323

Unavailable

3

COVER - Call your local BRP dealership

605153063

Unavailable

4

HINGE - Call your local BRP dealership

M549874

Unavailable

5

HINGE - Call your local BRP dealership

M5440581

$31.51

6

Lock Plate

M549732

$20.97

7

Rivet

M36071

Unavailable

8

SEALING STRIP PROFIL - Call your local BRP dealership

M5440059

$8.68

9

SCREW-SOCKET - Call your local BRP dealership

M40388

$1.35

10

Spacer

M5440665

Unavailable

11

Foam | SUV 600

M5346079

$32.28

12

Rivet

M36489

Unavailable

13

RH Support

M5144029

Unavailable

13

LH Support

M5144028

$15.02

14

Rivet

36108

$1.85

15

Welded Seat Base Weld

M5142066

Unavailable

16

Support

M5443661

Unavailable

17

Pivot Pin

M5344987

$36.89

18

CAM LOCK - Call your local BRP dealership

605451589

Unavailable

19

SPRING - Call your local BRP dealership

M5444439

$8.43

20

Screw M4 X 16

M40144

$1.51

21

Elastic Stop Nut M4

232541414

$0.48

22

Cap

M28019

Unavailable

23

Flat Washer 8 mm

234081410

$0.69

24

NUT M6 - Call your local BRP dealership

M33066

$1.60

25

Retainer Cable | SUV 600

M5447746

Unavailable

26

SUPPORT - Call your local BRP dealership

605452535

$8.68

27

Rivet

M36038

$1.51

28

Not Available As Spare Parts

XXX

Unavailable

29

Socket Head Screw M6 X 20

M40052

Unavailable

30

Not Available As Spare Parts

XXX

Unavailable

31

Flat Washer 6 mm

234062410

$0.64

32

Lock Washer M6, Black

234161471

$0.52

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

34

Backrest

M5245664

Unavailable

35

Backrest Foam

M539399

$103.05

36

COVER-BACKREST - Call your local BRP dealership This part replaces M5340917.

5340917

Unavailable

37

Allen Screw

M40389

$1.37
