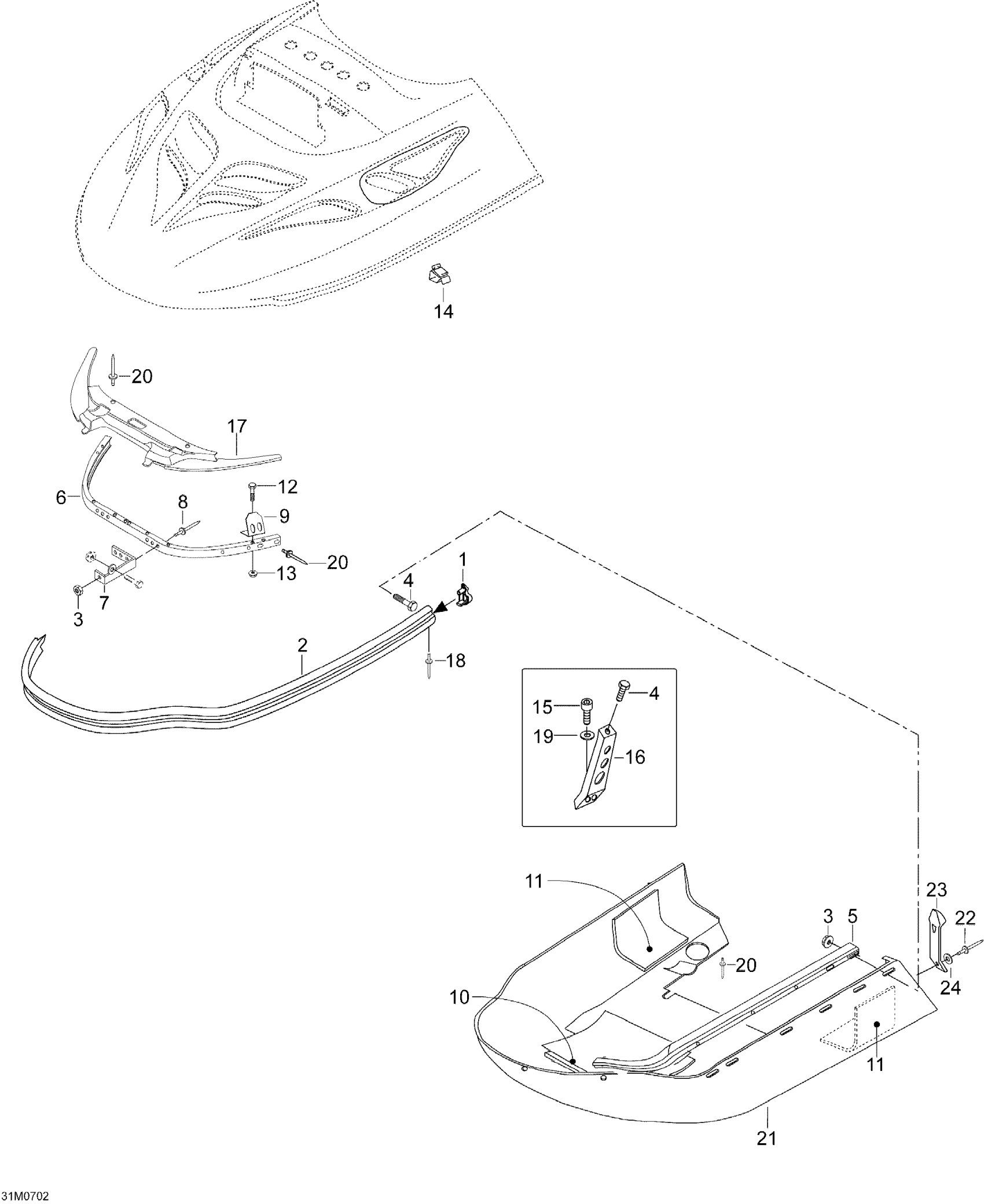

Ski-Doo Skandic WT 600, 2007 Bottom Pan WT 600 Diagram

#

Description
Price

1

RH Cap

M549096R

Unavailable

1

LH Cap

M549096L

$5.51

2

Front Bumper

M5242798

Unavailable

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4

Vis *Screw

M40078

Unavailable

5

RH Hood Guide

M5242804

$62.99

5

LH Hood Guide

M5242803

Unavailable

6

SUPPORT-FRONT - Call your local BRP dealership | Includes 6 to 8 This part replaces M5246120.

5246120

Unavailable

7

Hinge

M5342234

Unavailable

7

Hinge

M5342345

$22.15

8

Rivet

36108

$1.85

9

Hood Guide

M5443217

Unavailable

10

Acoustic Foam

M5345088

$18.18

11

Foam Acoustic

M5345089

$13.05

12

Screw M5 X 16

M40247

Unavailable

13

NUT M5 - Call your local BRP dealership

M33062

$1.35

14

Clip

414227300

$1.45

15

SCREW - Call your local BRP dealership

M40332

Unavailable

16

SUPP.-BUMPER - Call your local BRP dealership

M5342509

Unavailable

17

COVER - Call your local BRP dealership

605252352

$98.43

18

RIVET - Call your local BRP dealership

M36097

Unavailable

19

Lock Washer M6, Black

234161471

$0.52

20

Black, Rivet

M36036

$1.65

21

BOTTOM PAN - Call your local BRP dealership

605152310

$403.82

22

Rivet This part replaces M36009.

36009

$1.06

23

Hood Latch

5342952

$22.28

24

Washer 5,3 mm

20008

$0.72
