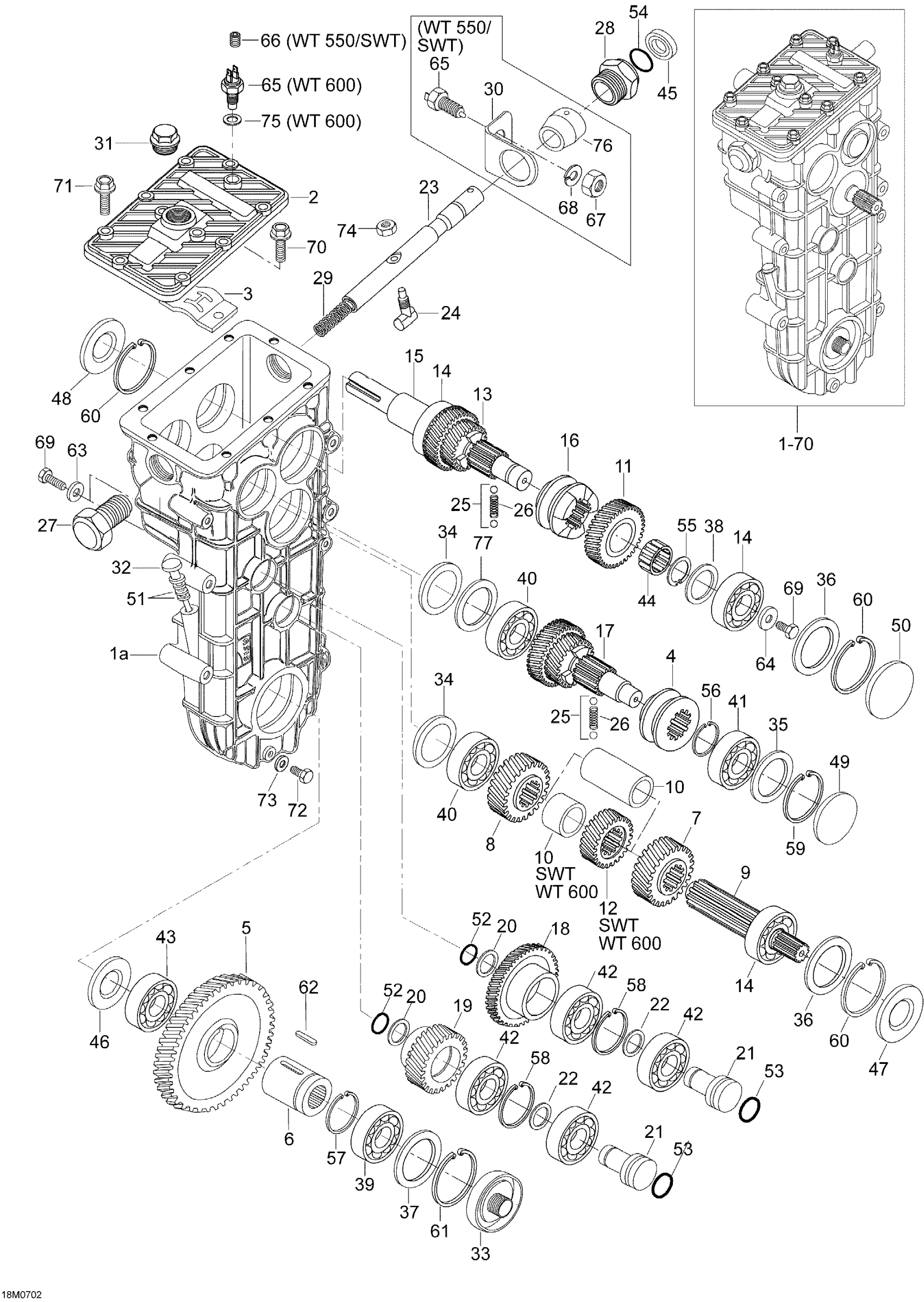

Ski-Doo Skandic WT 600, 2007 Transmission WT 600 Diagram

#

Description
Price

1

Transmission Ass'y | SUV 600, Includes 1 to 71

M870156150

Unavailable

1a

HOUSING - Call your local BRP dealership This part replaces M875156138.

875156138

$1,373.82

2

COVER - Call your local BRP dealership

M875156043

Unavailable

3

H-SCHEME - Call your local BRP dealership This part replaces M875156111.

875156111

Unavailable

4

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

5

Sprocket 53 Th

M875156114

$456.12

6

SHAFT - Call your local BRP dealership

M875156218

Unavailable

7

Sprocket 27 Th

M875156136

$343.82

8

Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054.

875156054

$503.82

9

SHAFT - Call your local BRP dealership This part replaces M875156069.

875156069

$509.20

10

SLEEVE - Call your local BRP dealership

M875156088

$37.66

11

Sprocket 29 Th

M875156135

$374.58

12

Sprocket 29Th

M875156151

Unavailable

13

COUNTER SHAFT - Call your local BRP dealership | Includes 11 to 12 This part replaces M875156063.

875156063

$1,387.66

14

BEARING 6305 - Call your local BRP dealership This part replaces M610063050.

610063050

Unavailable

15

Sleeve

M875156089

Unavailable

16

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

17

Shaft - Call your local BRP dealership This part replaces M875156068.

875156068

$1,450.74

18

Sprocket 28Th

M875156206

$479.20

19

Sprocket 31 Th

M875156156

Unavailable

20

Shim This part replaces M875156094.

875156094

$19.97

21

Axe *Shaft This part replaces M875147204.

875147204

$129.20

22

Washer

M875147205

Unavailable

23

Shaft - Call your local BRP dealership This part replaces M875156072.

875156072

Unavailable

24

Pin - Call your local BRP dealership This part replaces M875156073.

875156073

Unavailable

25

Ball This part replaces M616810064.

616810064

$25.35

26

Spring - Call your local BRP dealership This part replaces M875156105.

875156105

$10.06

27

SLEEVE - Call your local BRP dealership This part replaces M875156076.

875156076

$32.28

28

SLEEVE - Call your local BRP dealership This part replaces M875156077.

875156077

Unavailable

29

Spring This part replaces M875156078.

875156078

$102.28

30

Not Available As Spare Parts

XXX

Unavailable

31

Oilplug - Call your local BRP dealership This part replaces M875156098.

875156098

Unavailable

32

Filler Cap Ass'y

M875156097

Unavailable

33

Bouchon *Plug

M875156104

Unavailable

34

Plug This part replaces M875152953.

875152953

$39.97

35

Shim

M617394252

$9.97

36

Shim 0,3mm - Call your local BRP dealership This part replaces M617395065.

617395065

Unavailable

37

ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.

617395568

$14.35

38

WASHER-AXIAL - Call your local BRP dealership

M616092542

$27.66

39

Bearing - Call your local BRP dealership This part replaces M6008.

6008

Unavailable

40

BEARING 6304 - Call your local BRP dealership This part replaces M610063044.

610063044

Unavailable

41

Bearing - Call your local BRP dealership This part replaces M6304.

6304

Unavailable

42

BALL BEARING - Call your local BRP dealership This part replaces M610063036.

610063036

$54.58

43

Bearing - Call your local BRP dealership This part replaces M6008.

6008

Unavailable

44

Needle bearing This part replaces M611002529.

611002529

$26.12

45

Oil seal - Call your local BRP dealership This part replaces M614102031.

614102031

Unavailable

46

Oil seal This part replaces M614102852.

614102852

$25.35

47

Oil seal This part replaces M614102562.

614102562

$50.74

48

Oil seal This part replaces M614103562.

614103562

$53.99

49

Plug This part replaces M614100052.

614100052

$27.66

50

PLUG - Call your local BRP dealership This part replaces M614100062.

614100062

Unavailable

51

O-ring - Call your local BRP dealership This part replaces M614600725.

614600725

$8.69

52

O-RING - Call your local BRP dealership This part replaces M614601224.

614601224

Unavailable

53

O-ring This part replaces M614602431.

614602431

$10.52

54

O-ring This part replaces M614601523.

614601523

$10.52

55

CIRCLIP - Call your local BRP dealership This part replaces M617450025.

617450025

$4.14

56

CIRCLIP - Call your local BRP dealership This part replaces M617450028.

617450028

Unavailable

57

CIRCLIP - Call your local BRP dealership

M617300040

$2.92

58

Circlip - Call your local BRP dealership This part replaces M617330047.

617330047

$9.51

59

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

$7.31

60

CIRCLIP - Call your local BRP dealership This part replaces M617330062.

617330062

Unavailable

61

Snapring - Call your local BRP dealership This part replaces M617330068.

617330068

$9.71

62

KEY - Call your local BRP dealership

M603345080

$8.51

63

WASHER - Call your local BRP dealership

M501150902

$5.29

64

WASHER - Call your local BRP dealership

M875156112

Unavailable

65

Switch - Call your local BRP dealership This part replaces M654100225.

654100225

$103.82

66

Not Available As Spare Parts

XXX

Unavailable

67

Not Available As Spare Parts

XXX

Unavailable

68

Not Available As Spare Parts

XXX

Unavailable

69

Hex. Screw M8 X 20

207182044

$0.61

70

Hex. Screw

M40337

Unavailable

71

Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402.

537001402

Unavailable

72

HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342.

528801342

Unavailable

73

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

74

NUT M10 - Call your local BRP dealership This part replaces M510611002.

510611002

Unavailable

75

Shim

M617391218

$12.28

76

Not Available As Spare Parts

XXX

Unavailable

77

Shim 0.5 mm - Call your local BRP dealership This part replaces M617394352.

617394352

Unavailable
