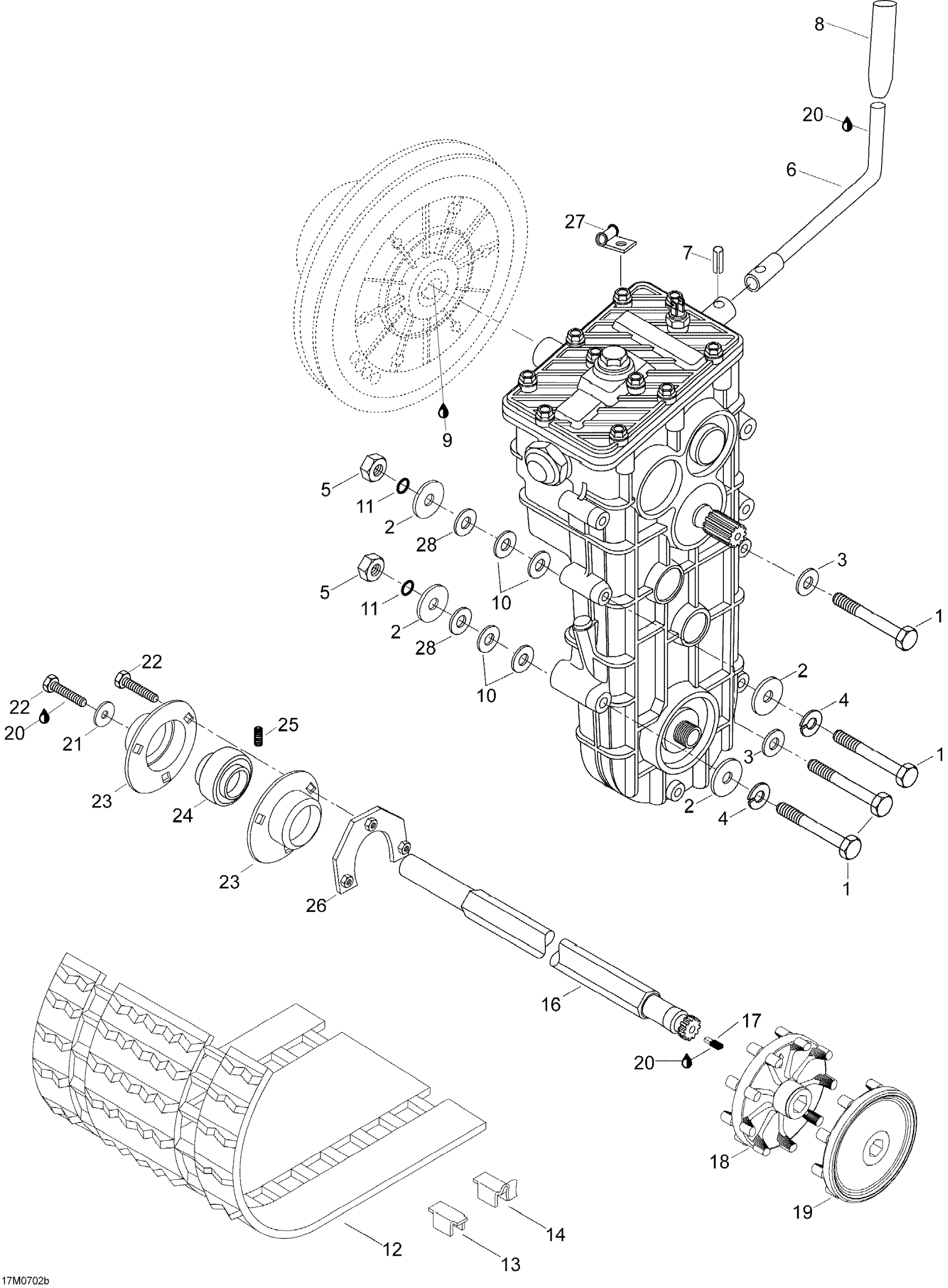

Ski-Doo Skandic WT 600, 2007 Drive System WT 600 Diagram

#

Description
Price

1

Screw M8 X 80

M40012

$3.32

2

Flat Washer 8 mm

234082410

$1.11

3

Flat Washer 8 mm

234081410

$0.69

4

Lock Washer 8 mm

234181401

$0.89

5

Hex. Elastic Stop Nut M8

232581414

$0.47

6

Bras Vitesse *Arm-Shifter

M5340902

Unavailable

7

PIN SPRING - Call your local BRP dealership

M41007

Unavailable

8

Shift button This part replaces M28247.

28247

$29.97

9

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

10

M8 Washer This part replaces M20077.

20077

$1.48

11

O-RING - Call your local BRP dealership

506151140

$6.51

12

Track ass'y | Includes 10 to 12 This part replaces M13070.

13070

$1,249.99

13

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

14

CLEAT - Call your local BRP dealership

M5318322

Unavailable

16

Drive Axle This part replaces M5345117.

5345117

Unavailable

17

Speed Drive Insert This part replaces M542013.

542013

Unavailable

18

SPROCKET - Call your local BRP dealership

414931800

$63.82

19

HALF SPROCKET - Call your local BRP dealership

415067400

$43.99

20

Loctite 243, 10 ml

293800060

$20.77

21

Washer

M546336

Unavailable

22

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

23

Bearing House This part replaces M534430.

534430

Unavailable

24

BALL BEARING - Call your local BRP dealership | Includes 24 to 25

M31UC205

Unavailable

25

BALL BEARING - Call your local BRP dealership | Includes 24 to 25

M31UC205

Unavailable

26

Fasten Ring Weld This part replaces M546421.

546421

Unavailable

27

WIRE-HOLDER - Call your local BRP dealership

M5443134

$6.12

28

Not Available As Spare Part - Friction Washer

Unavailable
