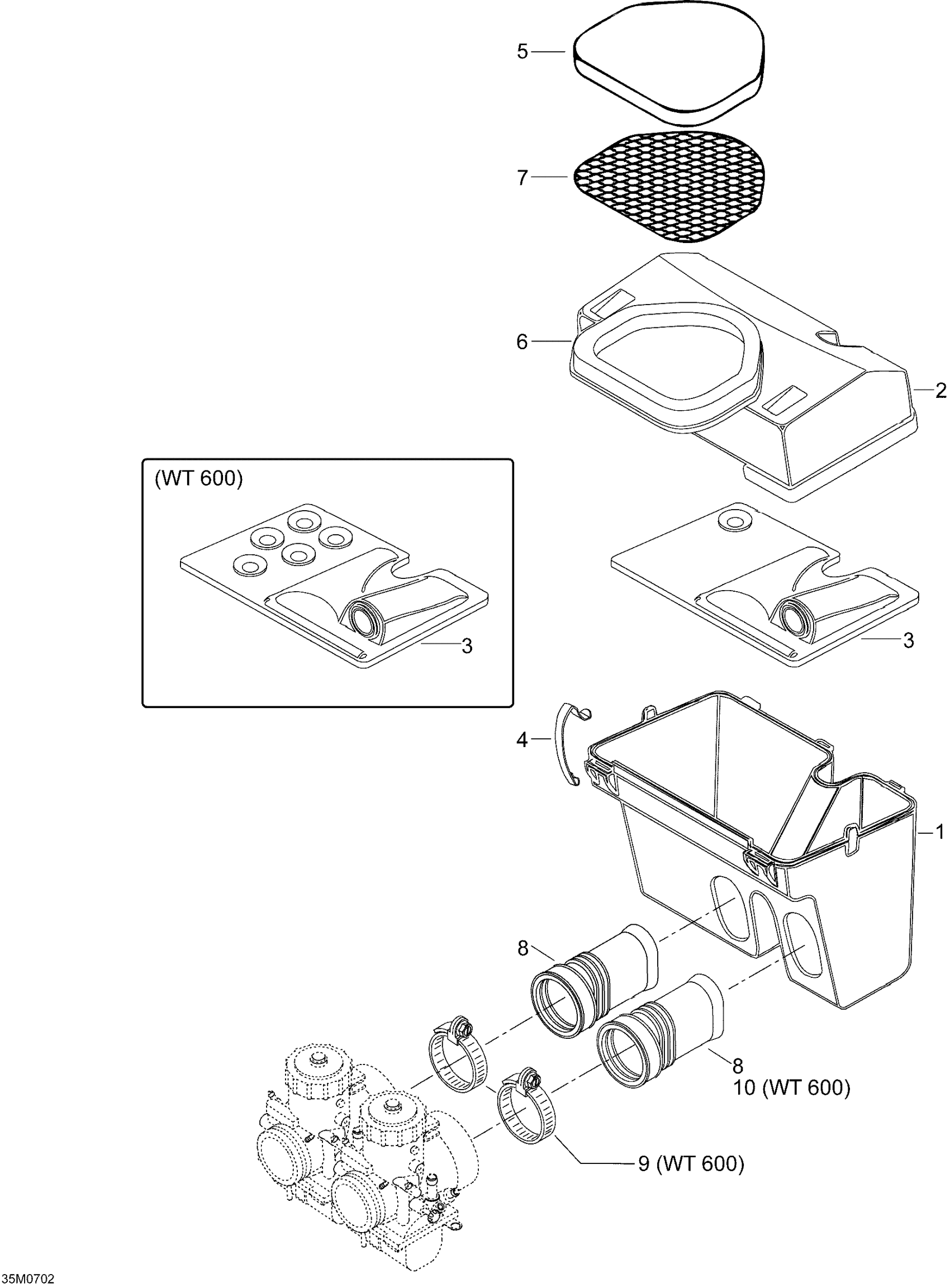

Ski-Doo Skandic WT 600, 2007 Air Intake System WT 600 Diagram

#

Description

Price

1

Air Intake

M5148040

$33.05

2

Intake Cover

M5147636

$46.89

3

Tube Plate

M5346744

$83.82

4

Lock Spring

M5448209

$14.72

5

AIR FILTER - Call your local BRP dealership

605349057

Unavailable

6

Sealing foam This part replaces M5342959.

5342959

$18.43

7

Intake Grill

M5342960

Unavailable

8

RH Air Intake Adaptor

570134300

$37.66

9

Clamp - Call your local BRP dealership This part replaces M27018.

27018

$13.05

10

ADAPTOR CARBURATOR - Call your local BRP dealership This part replaces M5346828.

5346828

Unavailable
