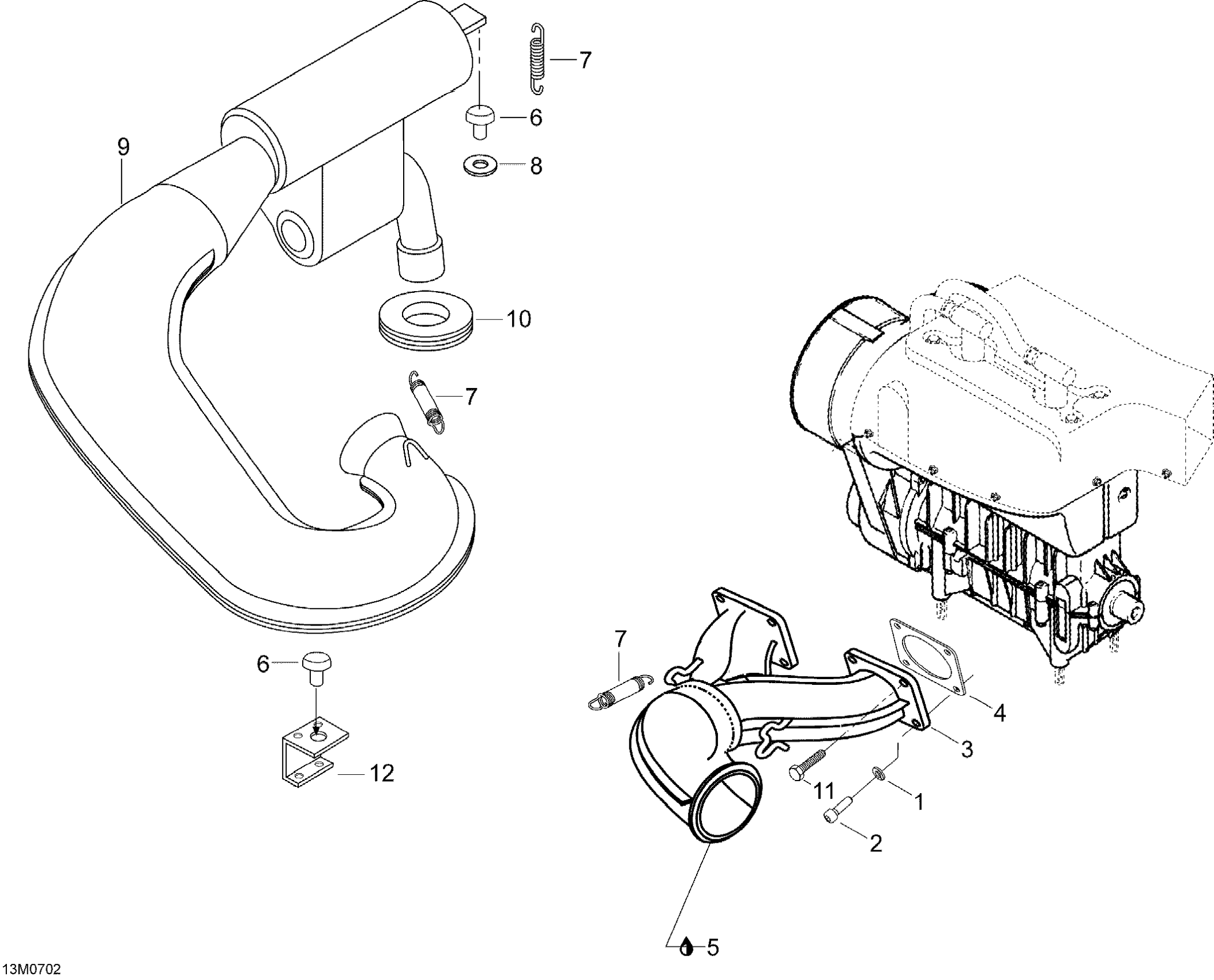

Ski-Doo Skandic WT 600, 2007 Exhaust System 600 Diagram

#

Description

Price

1

Lock Washer 8 mm

234181401

$0.89

2

Socket Head Screw M8 X 30

M40135

$0.92

3

Branch-Y This part replaces M5245177.

5245177

Unavailable

4

Gasket

420931610

$11.38

5

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

6

Rubber Bumper

514053654

$49.20

7

Spring This part replaces 420938795.

420938796

$8.34

8

Washer

M20087

Unavailable

9

TUNED PIPE - Call your local BRP dealership

420979856

Unavailable

10

EXHAUST GROMMET - Call your local BRP dealership

570039000

$23.05

11

Hex. Screw M8 X 20

207182044

$0.61

12

Support

M5442681

$13.95
