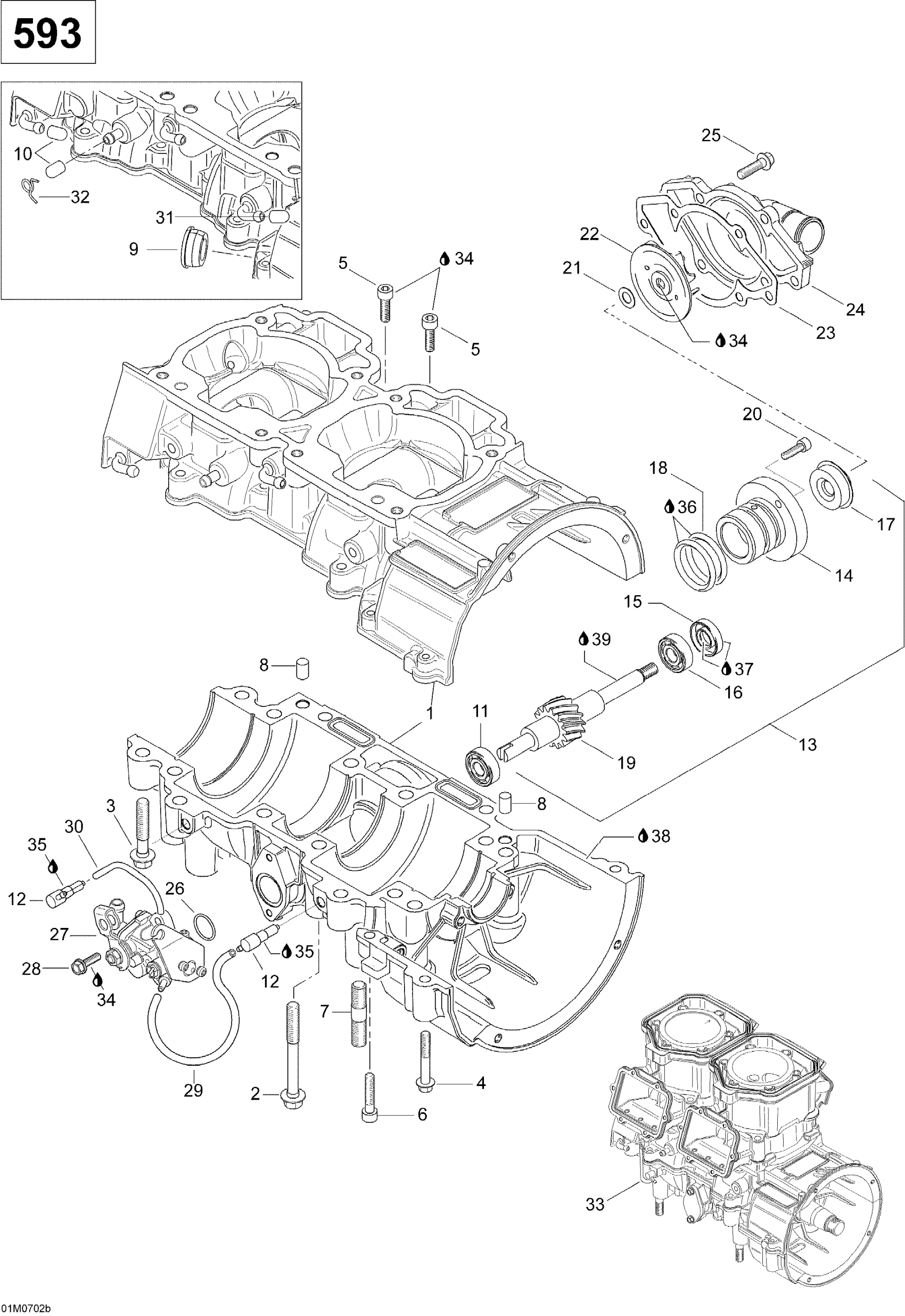

Ski-Doo Skandic WT 600, 2007 Crankcase (600) Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership

420888769

Unavailable

2

Hex. Collar Screw M8 X 75

420640836

$1.88

3

Hex. Collar Screw M8 x 45

420640432

$1.88

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.15

5

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.43

6

Socket Head Screw M6 X 30

205063044

$1.63

7

STUD M10 X 29 - Call your local BRP dealership

420641834

Unavailable

8

Center Pin 8 X 12

420632010

$3.52

9

Cable Grommet

420860965

$13.18

10

Cap

420960770

$3.88

11

Ball Bearing

420232100

$17.88

12

Check Valve

420956511

$32.81

13

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$332.06

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Oil Seal

420230195

$14.52

16

Ball Bearing

420232100

$17.88

17

Rotary Seal

420650371

$41.01

18

O-Ring

420950890

$4.15

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Allen Screw M5 x 16

420840514

$1.79

21

Thrust Washer

420227945

$3.75

22

Water Impeller

420222505

$17.13

23

Gasket This part replaces 420931810.

420931811

$12.87

24

Water Pump Housing

420922630

$57.43

25

Hex. Screw M6 X 25

420240034

$1.79

26

O-Ring

293300041

$8.09

27

Oil Pump Ass’Y, 600

420888260

$442.51

28

Taptite Screw M5 X 16

420941928

Unavailable

29

Oil Hose 1500Mm Long

219704404

$15.64

30

Oil Hose 1500Mm Long

219704404

$15.64

31

CAP - Call your local BRP dealership

420960777

Unavailable

32

CLAMP - Call your local BRP dealership

420938190

Unavailable

33

REBUILD-SHORT-BLOCK PACKAGE 593 - Call your local BRP dealership

421000616

Unavailable

34

Loctite 243, 10 ml

293800060

$21.49

35

Sealant Loctite 648

219703000

$41.01

36

Dow Corning 111, 150 g

413707000

$59.99

37

Petamo Grease, GHY133N, 400 g

420899271

$65.64

38

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

39

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.33
