Description

Price

-

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2,149.99

1

Counter Shaft Ass'y | Gear Box 2.30

619230044

Unavailable

2

Oil seal

619230010

Unavailable

3

Main Shaft Ass'y | Gear Box 2.30

619230054

$563.82

4

Reverse Shaft Ass'y (Slow Ratio) | Gear Box 2.30

619230073

$593.05

5

Fork, Forwards

619230055

$140.74

6

Fork, reverse

619230015

Unavailable

7

Shaft

619230016

Unavailable

8

Spring

619230017

$14.34

9

Shifting Drum

619230056

$210.74

10

Oil seal This part replaces 619230052.

619230019

Unavailable

11

Bushing

619230020

$9.37

12

Locking lever

619230021

$57.66

13

Middle gear

619230022

$219.20

14

Lower gear

619230023

$406.89

15

Magnetic Cap

504152821

Unavailable

16

Gearbox Cover Rh This part replaces 504153194.

504153477

Unavailable

17

Gearbox Casing This part replaces 504153192.

504153475

Unavailable

18

Oil Plug

619230027

$40.74

19

O-Ring

619230028

$4.28

20

Screw

619230029

Unavailable

21

Washer

619230030

$7.82

22

Oil seal

619230031

$19.20

23

SCREW M6 X 20 - Call your local BRP dealership

619230033

Unavailable

24

Sealing Compound Loctite 5366 310Ml

420297907

Unavailable

25

SYNTHETIC OIL 75W-140 - Call your local BRP dealership

293600140

Unavailable

26

Allen Screw M8 x 10

619230037

$5.89

27

Allen Screw M10 x 16

619230038

$3.92

28

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

29

Seal Ring

619230047

$3.92

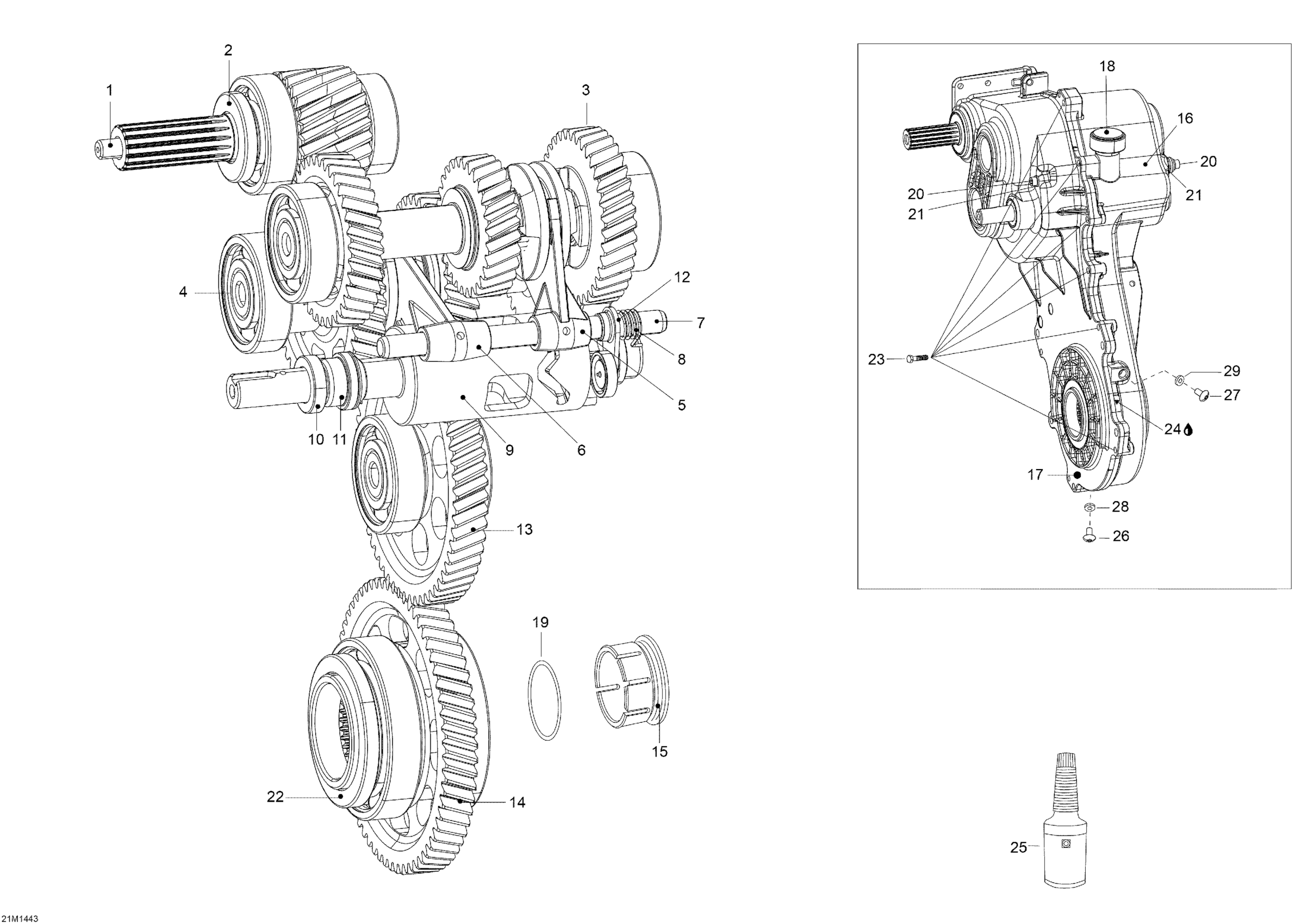

Ski-Doo Skandic WT 550F XU, 2014 Transmission Diagram

Counter Shaft Ass'y | Gear Box 2.30

Oil seal

Fork, reverse

Shaft

Oil seal This part replaces 619230052.

Magnetic Cap

Gearbox Cover Rh This part replaces 504153194.

Gearbox Casing This part replaces 504153192.

Screw

SCREW M6 X 20 - Call your local BRP dealership

Sealing Compound Loctite 5366 310Ml

SYNTHETIC OIL 75W-140 - Call your local BRP dealership

Gasket-ring - Call your local BRP dealership
