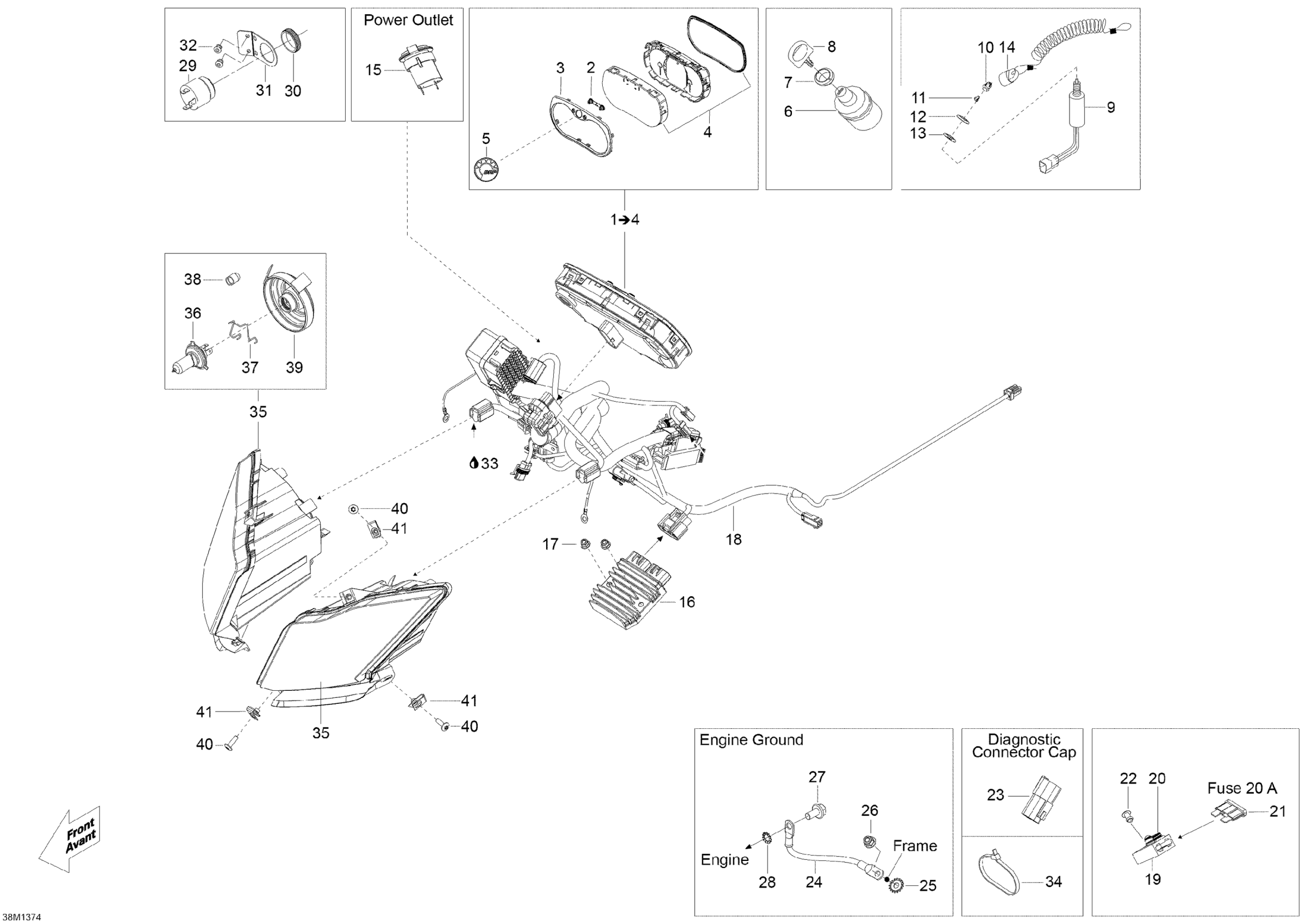

Ski-Doo Skandic WT 550F XU, 2013 Electrical System Diagram

#

Description
Price

1

Indicator | Includes 10 to 10c

515177279

$519.37

2

Speedometer Button | XTP

415129355

$13.52

3

Gauge Ring

415129370

$10.34

4

Lens | XTP

415129349

$22.36

5

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

6

Ignition Swirch

515177063

$47.73

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Brake Switch

515175653

$17.88

10

Switch Nut

515145900

$10.51

11

Plunger Cap

570151100

$9.13

12

Flat Washer

250200084

$3.16

13

RH Threaded Hex. Jam Nut M10

732610010

$0.70

14

Cap Ass'y

515178283

$36.54

15

DC Outlet

710001248

$35.79

16

Voltage Regulator

515176699

$146.24

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

18

FRAME HARNESS - Call your local BRP dealership | Includes 1 to VC

515177074

Unavailable

19

Lock

515176681

$17.88

20

Clip

270000141

$9.57

21

Fuse, 20 Amperes

409003900

$3.12

22

Avdel Rivet 3/16"

293150037

$0.54

23

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

24

Ground Wire

515176745

$26.84

25

Lock Washer Serrated M6

250200041

$1.06

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

27

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.00

28

Serrated Lock Washer 8 mm

234481608

$1.06

29

Back-Up Alarm

414792102

$133.55

30

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

31

REVERSE BUZZ HOLDER - Call your local BRP dealership

515176822

Unavailable

32

Screw M4 X 16

250000725

$3.30

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Tie Wrap 94 mm | 4X4

293750001

$0.96

34

Tie Wrap 142 mm

293750002

$1.01

34

Tie-Rap 180 mm

414115200

$0.10

34

Tie Wrap 368 mm

293750008

$0.97

35

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$135.79

35

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$135.79

36

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Cap

515176498

$11.82

39

Rubber Cap Protector

219800280

$17.13

40

Torx Screw M6 X 20

250000722

$1.54

41

Panel Nut M6 X 1.0

250100198

$1.99
