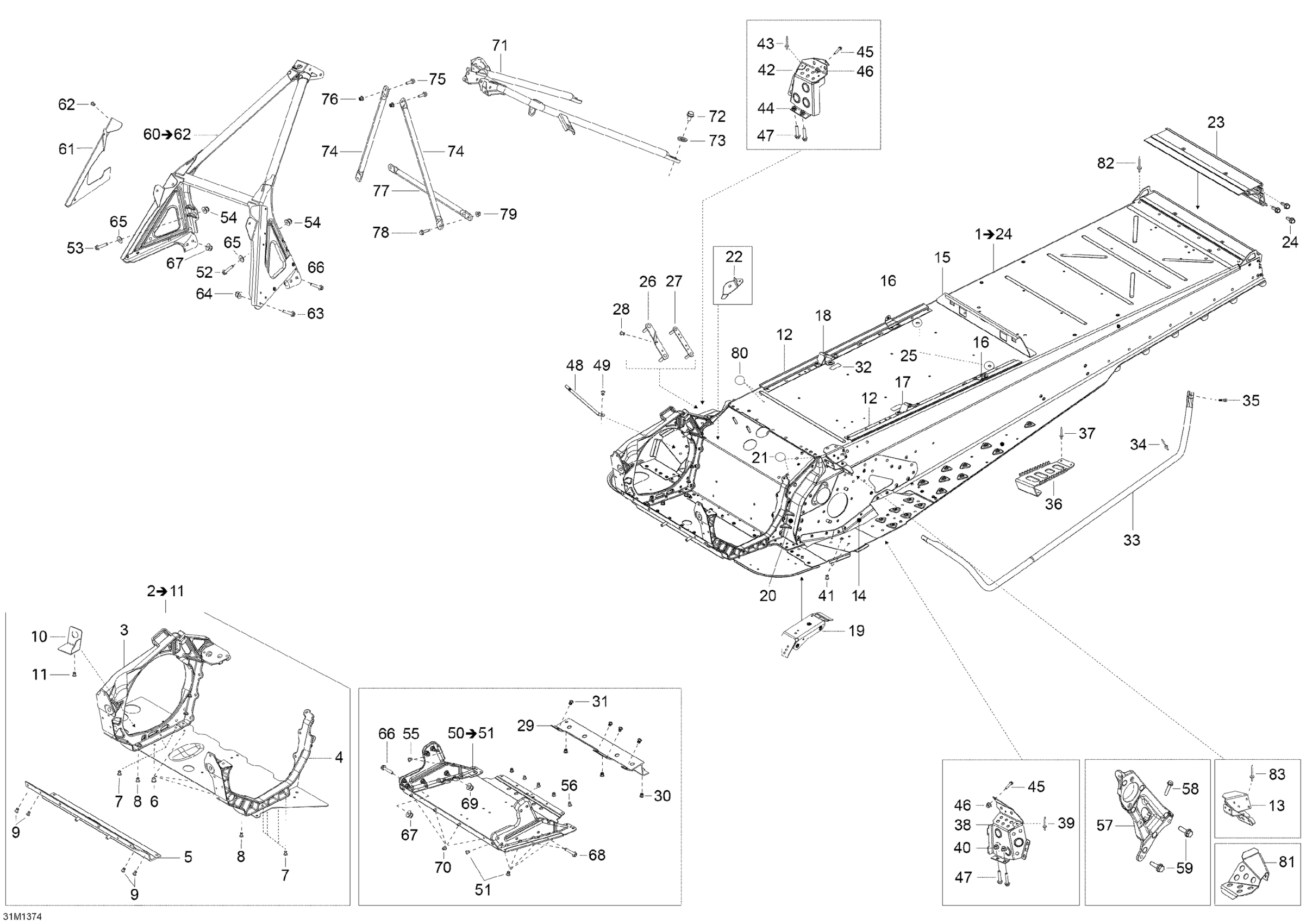

Ski-Doo Skandic WT 550F XU, 2013 Frame Diagram

#

Description
Price

1

Frame Xu 552 Fc Sc- | Includes 1 To 24

518326965

Unavailable

2

MODULE E - Call your local BRP dealership | Includes 2 To 11

518328189

Unavailable

3

RH Member

518326795

Unavailable

4

LH Member

518325558

Unavailable

5

Front Member | Includes 10as to 10at

518325818

Unavailable

6

Clinch Nut Hexsert M8

605636002

$7.31

7

Avex Rivet

390909100

$0.29

8

Hemlock Rivet 6.5 mm

293150120

$7.23

9

Hemlock Rivet, 6.5 mm

293150119

$4.00

10

Muffler Support

518327219

Unavailable

11

Rivet Hucklok

293150163

$2.82

12

Fastening rail

518326107

$15.35

13

Fastening Bracket

605355235

Unavailable

14

Drive Axle Cover L.H.

518326658

Unavailable

14

DRIVE AXLE COVER R.H. - Call your local BRP dealership

518326659

Unavailable

15

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$73.05

16

Seat Box Bracket

518325987

Unavailable

17

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

$40.74

18

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

$40.74

19

Clinch Nut plate

518326430

$45.99

20

LH Frame Corner

518325524

$52.28

20

FRAME CORNER RH - Call your local BRP dealership

518325526

Unavailable

21

Adhesive Patch

518325560

Unavailable

22

RH Support

518326520

Unavailable

23

Rear Profile

518328748

$217.66

24

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

25

Adhesive Patch

518325560

Unavailable

26

Gearbox Front Plate

518326123

Unavailable

27

Gearbox Rear Plate

518326124

Unavailable

28

Pop Rivet 3/16"

390402200

$0.26

29

Engine Support

518326719

Unavailable

30

MONOBOLT RIVET 4.8 - Call your local BRP dealership

293150179

Unavailable

31

Avex Rivet

390909200

Unavailable

32

RUBBER COVER - Call your local BRP dealership

518326357

$9.69

33

LH Footboard Support Tube

518326963

$126.89

33

RH Footboard Support Tube

518326964

$126.89

34

Avex Rivet

390909100

$0.29

35

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

36

Footrest

520000492

$18.43

37

Avex Rivet

390909100

$0.29

38

TOE HOOK LH - Call your local BRP dealership

518326671

Unavailable

39

Avex Rivet

390909200

Unavailable

40

Clinch Nut M6 Hexsert

605636003

$4.12

41

Black, Dart

414644300

$0.78

42

TOE HOOK RH - Call your local BRP dealership

518326672

Unavailable

43

Avex Rivet

390909200

Unavailable

44

Clinch Nut M6 Hexsert

605636003

$4.12

45

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

47

Torx Screw M6 X 20

250000722

Unavailable

48

Spring Bracket

514054846

$4.34

49

Avex Rivet

390909200

Unavailable

50

S Module | Includes 300 to 300a

518326213

Unavailable

51

Avex Rivet

390909200

Unavailable

52

Hex. Flange Screw M6 X 25

207662544

Unavailable

53

Hex. Flange Screw M6 X 25

207662544

Unavailable

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

55

Avex Rivet

390909100

$0.29

56

Avex Rivet

390909200

Unavailable

57

PULLEY SUPPORT - Call your local BRP dealership

518326714

Unavailable

58

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

59

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

60

Front Member Ass'y | Includes 700 to 700d

518327004

Unavailable

61

LH Bumper Fastener

502007077

Unavailable

61

RH Bumper Fastener

502007078

Unavailable

62

Avex Rivet

390909200

Unavailable

63

Hex. Flange Screw M6 X 20

207662044

Unavailable

64

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

65

Flat Washer

224061201

Unavailable

66

Hex. Flange Screw M6 X 20

207662044

Unavailable

67

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

68

Hex. Flange Screw M6 X 20

207662044

Unavailable

69

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

70

Avex Rivet

390909200

Unavailable

71

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

72

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

73

Not Available As Spare Part - Friction Washer

Unavailable

74

Upper Lateral Column Support

518325114

Unavailable

75

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

76

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

77

Center Column Support

518325115

Unavailable

78

Hex Flange Screw M6 x 25

250000522

Unavailable

79

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

80

Adhesive Patch

518325560

Unavailable

81

Brake Hose Cover | Except Package SWT

518325626

$28.43

82

Hemlock Rivet, 6.4 mm

293150174

$6.43

83

Avex Rivet

390909200

Unavailable
