Description

Price

1

Torx Flange Screw M6 X 30

420440647

$1.97

2

Starter

515178473

$319.49

3

Starter Relay

515176011

$51.97

4

Hex. Flange Screw M6 X 16

207661644

$0.61

5

Elastic Stop Nut M6

232561434

$1.55

6

Battery Cable

515176967

Unavailable

7

Ground Wire

515176780

Unavailable

8

HOUSING - Call your local BRP dealership

M28015

Unavailable

9

BATTERY WIRE - Call your local BRP dealership | DELE

515175905

Unavailable

10

Protector Cap

710000495

$10.14

11

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

12

Battery Bolt Kit

250000282

$2.95

13

Battery Cover

510005079

$17.66

14

Battery Strap

510005143

$74.58

15

Battery Support

515176804

$74.58

16

Strap Cover

510005146

$26.89

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Elastic Stop Nut M6

232561434

$1.55

20

Protector Cap

710000495

$10.14

21

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

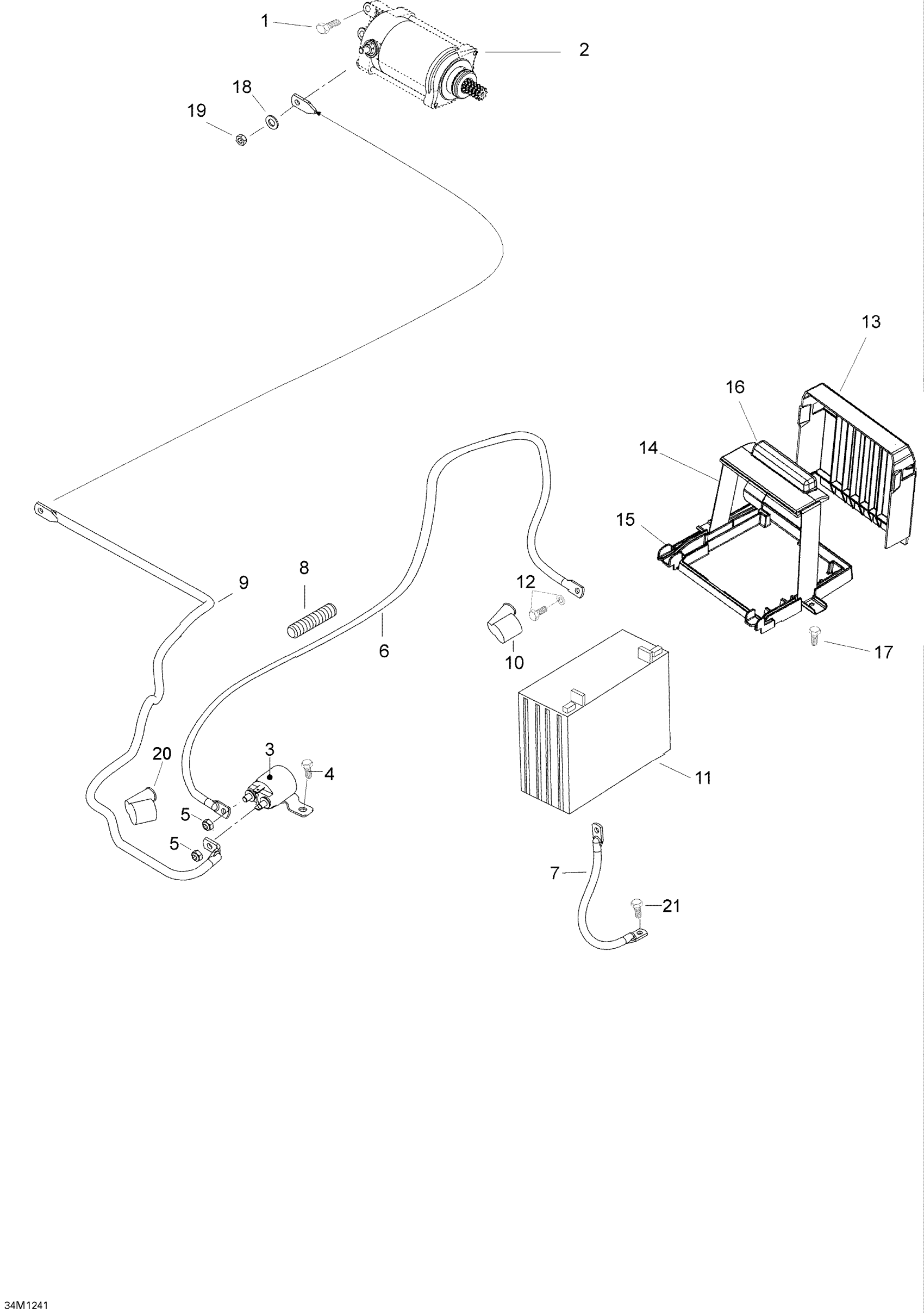

Ski-Doo Skandic WT 550F XU, 2012 Battery And Starter Diagram

Torx Flange Screw M6 X 30

Starter

Starter Relay

Hex. Flange Screw M6 X 16

Elastic Stop Nut M6

Battery Cable

Ground Wire

HOUSING - Call your local BRP dealership

BATTERY WIRE - Call your local BRP dealership | DELE

Protector Cap

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

Battery Bolt Kit

Battery Cover

Battery Strap

Battery Support

Strap Cover

Hex. Flange Screw M6 X 16, Scotch Grip

Not Available As Spare Part - Friction Washer

Elastic Stop Nut M6

Protector Cap

Hex. Flange Screw M6 X 16, Scotch Grip

Hex. Flange Elastic Nut M6 x 1.0
