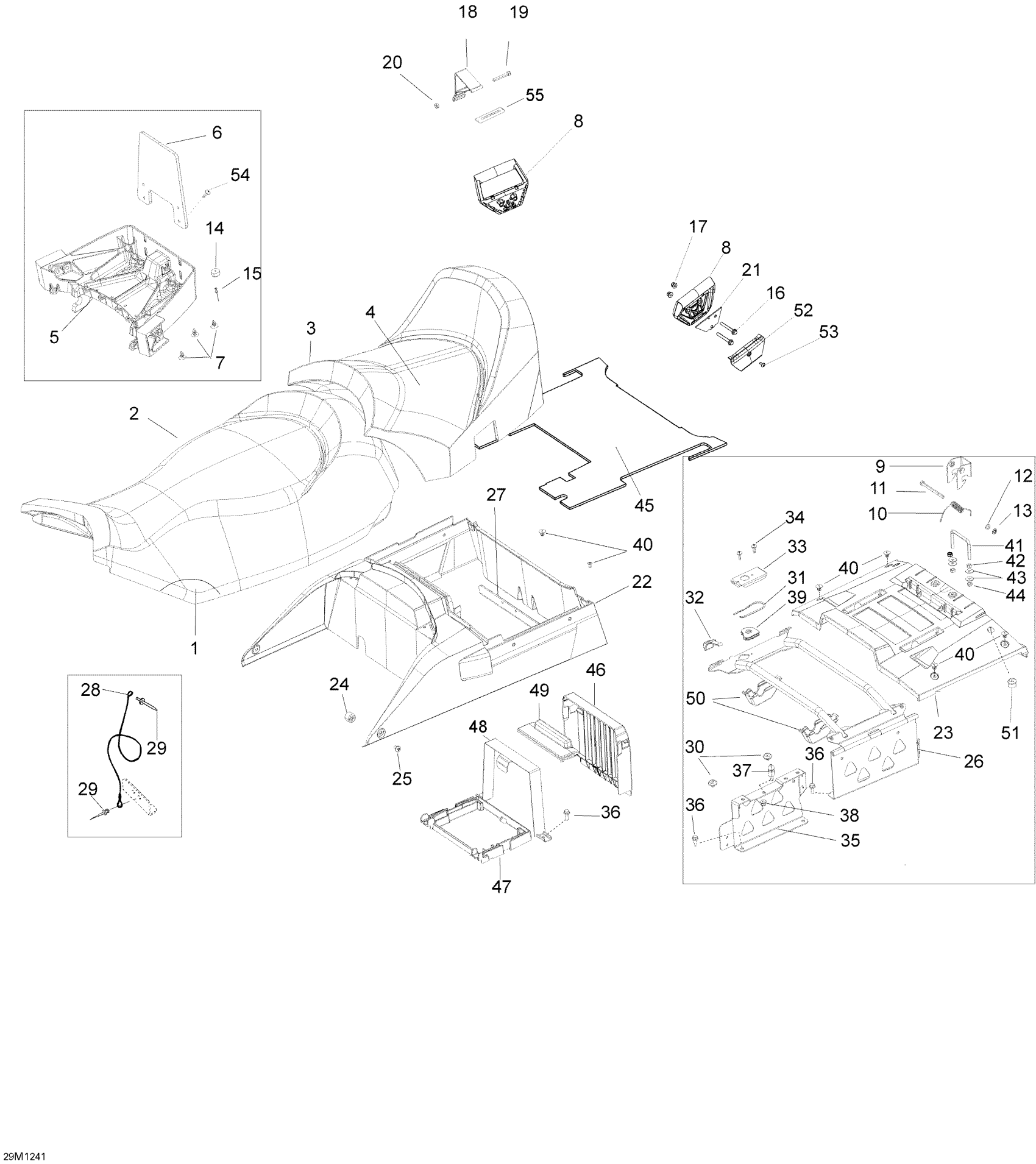

Ski-Doo Skandic WT 550F XU, 2012 Seat Diagram

#

Description
Price

1

Front Seat Foam | Model-550F

510005807

$424.58

2

Cover, front

510005722

Unavailable

3

Rear Seat Cover XU

510005320

Unavailable

4

Rear Seat Foam | Model-550F

510005811

$379.97

5

Seat Base

510004816

$90.74

6

Backrest Plate

510005330

$66.12

7

Black, Dart

414644300

$0.78

8

Handle

510005409

$57.99

9

Latch, Black

708000144

$11.09

10

Spring

708000369

$8.60

11

Hex. Screw M6 X 80

207068044

$3.39

12

Push Nut

732610072

Unavailable

13

Flat Washer 6 mm

234061410

Unavailable

14

RUBBER STOPPER - Call your local BRP dealership

510004903

Unavailable

15

Pop Rivet 1/8”

293150015

$0.34

16

Hex. Flange Screw, M8 X 65

207686544

$9.74

17

Hex. Flange Elastic Nut M8

233281414

Unavailable

18

Security Lock

510005139

$55.35

19

Socket Screw HD.DIN.912

205064044

$2.06

20

Elastic Stop Nut M6

232561434

$1.55

21

Support Plate, Painted

510005463

Unavailable

22

Storage Box

510006243

$218.43

23

Storage Box Cover

510006244

$39.99

24

Bushing

510005147

$9.91

25

Screw M6 X 12

250000389

Unavailable

26

Lock tube

510005714

$402.28

27

Cable Support Plate

510005156

$17.66

28

Seat Retainer Cable

293750070

$10.23

29

Pop Rivet 3/16"

390402200

$0.26

30

Plug

605452114

$8.60

31

Latch Spring

269700017

$7.27

32

Puller

510005072

$18.43

33

Lock Pin Cover

510005698

$19.20

34

Forming Screw M5 x 16

250000676

$0.83

35

LOCKING PLATE (FRAME) - Call your local BRP dealership

510004998

Unavailable

36

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

37

LOCK PIN - Call your local BRP dealership

605452035

Unavailable

38

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

39

Lock Pin Guide

510005044

$14.02

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

41

FASTENER PIN - Call your local BRP dealership

510004876

Unavailable

42

Hex. Nut M6

250000135

$0.51

43

Washer

20117

$5.22

44

Elastic Stop Nut M6

232561434

$1.55

45

Foam

510005043

Unavailable

46

Battery Cover

510005079

$17.66

47

Battery Support

515176804

$74.58

48

Battery Strap

510005143

$74.58

49

Strap Cover

510005146

$26.89

50

Cover

510004999

$16.12

51

Cap

572051500

$5.38

52

Handle Cover

510005444

$36.12

53

Forming Screw M5 x 16

250000676

$0.83

54

Rivet | Model-T3

293150067

$2.29

55

SCREEN PLATE - Call your local BRP dealership

510005480

Unavailable
