Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

HOOD B-190 - Call your local BRP dealership | Yellow 2000

517305521

Unavailable

3

Hood Grille

517304843

$82.28

4

Insulator

517304330

$34.58

5

Insulator

517304214

$29.97

6

Latch Pannel

517304289

$9.91

7

Intake Grille

517306981

$26.89

8

Intake Grille

517304584

$26.89

9

Black, Console

517304820

$170.74

10

INSULATOR - Call your local BRP dealership

517304317

Unavailable

11

Insulator

517304318

$49.20

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Yellow, RH Side Access Panel | Yellow 2000

517305525

Unavailable

14

RH Access Panel Grille

517304015

$33.82

15

RH Lower Acces Grille

517304016

$29.20

16

Insulator

517304311

$63.05

17

Insulator

517304312

$29.97

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Yellow, LH Side Access Panel | Yellow 2000

517305527

Unavailable

20

Insulator

517304313

$63.05

21

Gauge Support

517304002

Unavailable

22

Insulator

517304314

$63.82

23

Insulator

517304315

$29.97

24

Insulator

517304316

$29.97

25

Insulator

517304319

$29.97

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Black, RH Side Panel

517306977

Unavailable

28

Foam Right

517304709

Unavailable

29

RH Rear Foam

517304310

$62.28

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Black, LH Side Panel

517306979

Unavailable

32

Foam LH

517304707

Unavailable

33

LH Rear Foam

517304309

$62.28

34

Handle Fastener Quarter-Turn

517304297

$14.62

35

Quarter-Turn Handle

517304296

Unavailable

36

Locking Plate

517304538

$4.29

37

Side Panel Support | Except Package SWT

517304497

$18.43

38

Rivet

36005

Unavailable

39

Black Latch Kit | Includes 390 to 400

860200239

$16.12

40

Latch-Panel

517306057

$19.47

41

Air Out Deflec

509000687

Unavailable

42

Foam-In

509000831

Unavailable

43

Screw Plastofast Mp 6 X 16 Pz

293700048

Unavailable

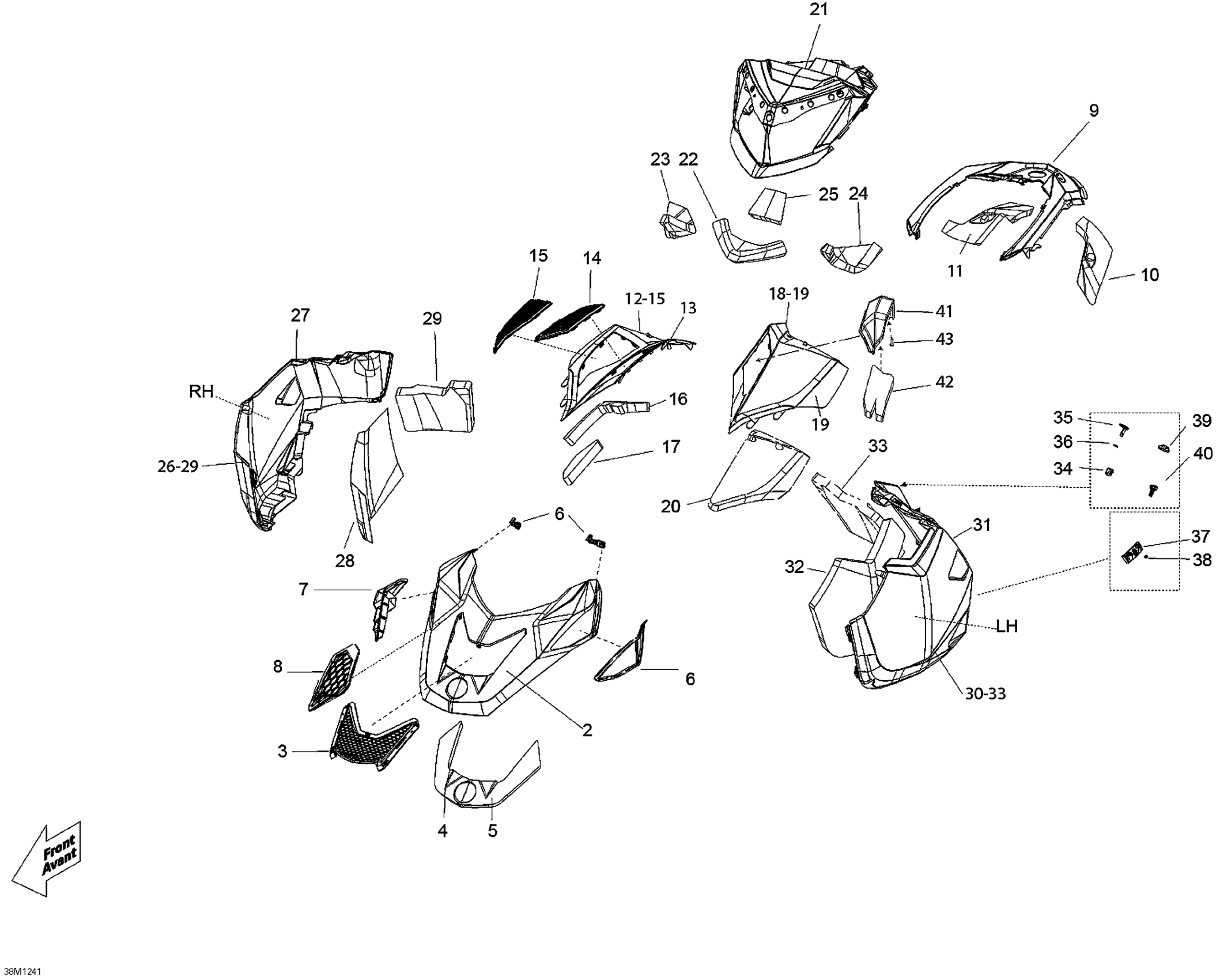

Ski-Doo Skandic WT 550F XU, 2012 Hood Diagram
