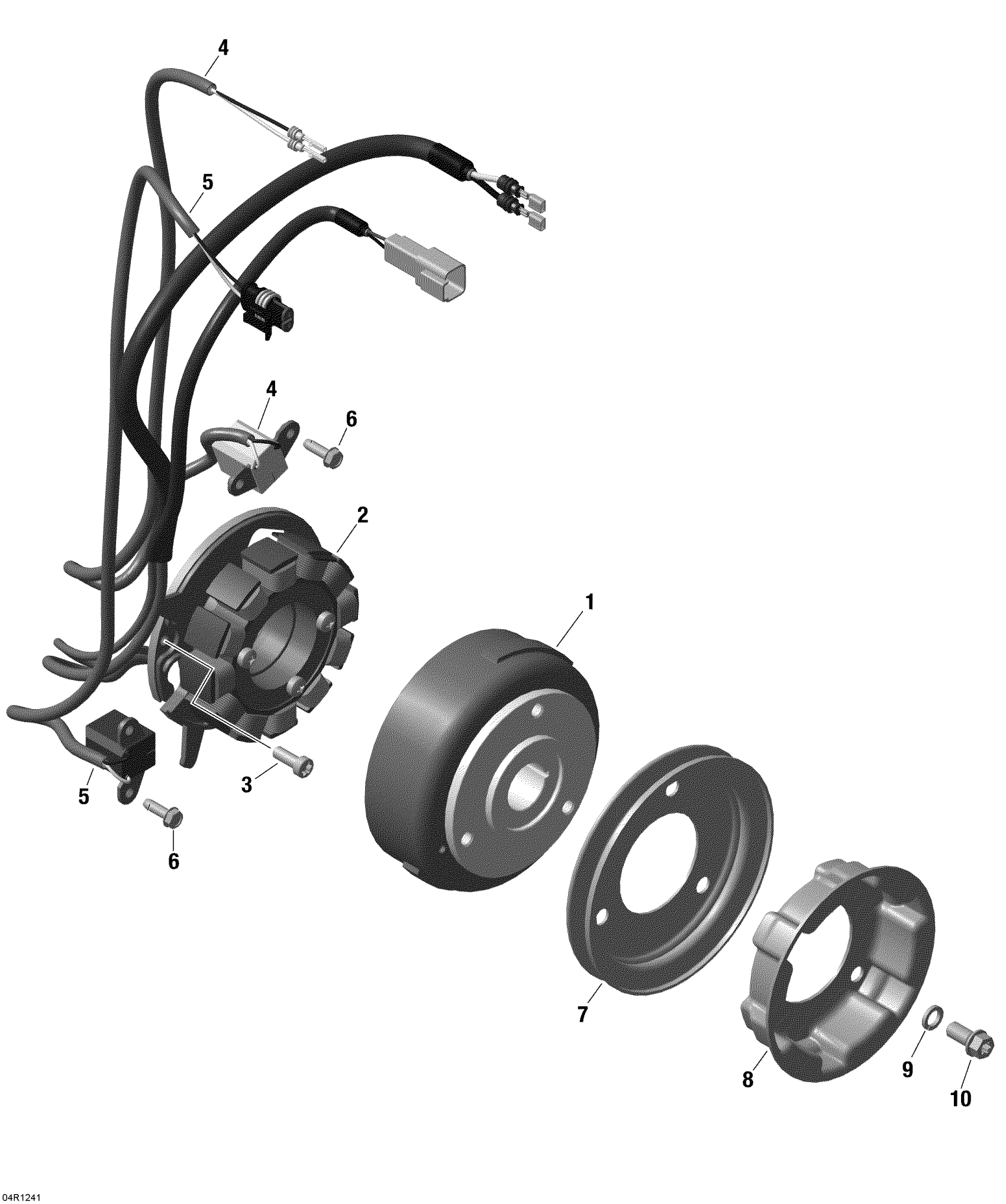

Ski-Doo Skandic WT 550F XU, 2012 Magneto Diagram

#

Description

Price

-

Not Available As Spare Part - Friction Washer

Unavailable

1

Flywheel

420889376

Unavailable

2

Stator Plate

420889367

Unavailable

3

Screw

420641521

Unavailable

4

Pick-Up

420665163

Unavailable

5

Pick-Up

420665161

Unavailable

6

Taptite Screw M5 X 16

420941928

Unavailable

7

V-Belt Pulley

420980486

Unavailable

8

Rope Sheave

420852414

Unavailable

9

Lock Washer

420845311

Unavailable

10

Torx Flange Screw M8 X 16

420440852

Unavailable
