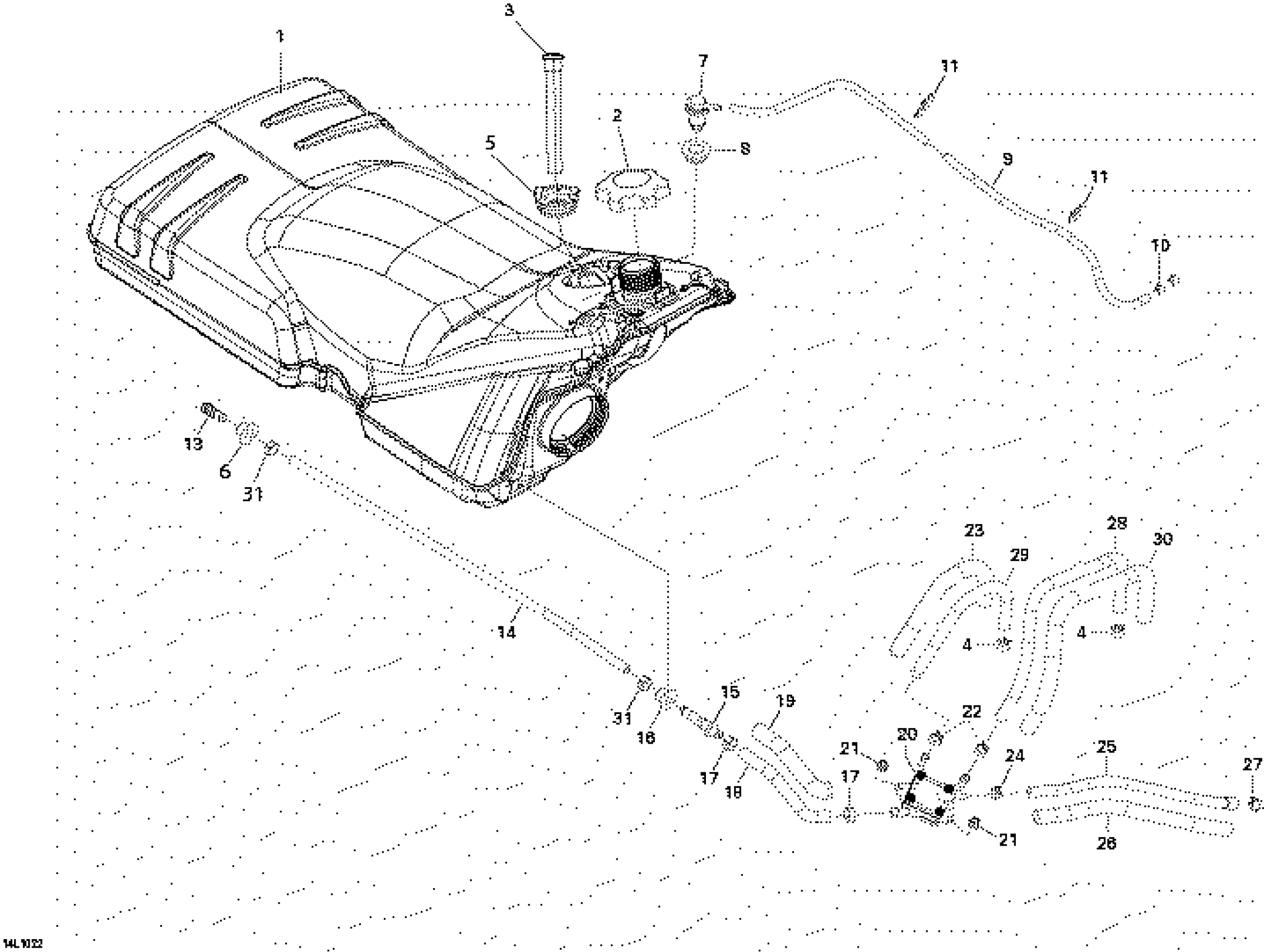

Ski-Doo Skandic WT 550F XU, 2012 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033632

Unavailable

2

Fuel Tank Cap

513033025

$19.47

3

Fuel Sensor

513033538

$77.66

4

Crimp Clamp, 15.3-706R

293650047

$2.64

5

Grommet

293720058

$11.00

6

Grommet

280000674

$4.42

7

Check Valve

513033842

$33.82

8

Grommet

513033596

$18.43

9

Polyurethane Hose 10000Mm Long

219704410

$46.12

10

Clip

414227300

$1.45

11

Tie-Rap 180 mm

414115200

$0.09

13

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

14

Polyurethane Hose 1000Mm Long

219704391

Unavailable

15

Male Connector

414872700

$1.86

16

Grommet

513033435

$3.73

17

Crimp Clamp

293650053

$2.42

18

Molded Hose - 3/8 I.D.

513033626

$12.74

19

Tubing 16 Mm 1000Mm Long

219704408

$6.23

20

Fuel Pump

403901813

$84.99

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

22

Universal Spring Clamp

513033029

$5.11

23

Tubing 16 Mm 1000Mm Long

219704408

$6.23

24

Spring Clamp

414415200

$0.83

25

Formed Hose

513033553

$23.82

26

Tubing 16 Mm 1000Mm Long

219704408

$6.23

27

CLAMP MINI ABA 13 - Call your local BRP dealership

605627005

Unavailable

28

Hose 3000Mm Long

219704612

$79.97

29

Hose 3000Mm Long

219704612

$79.97

30

Tubing 16 Mm 1000Mm Long

219704408

$6.23

31

Norma Spring Clamp

513033010

$8.68
