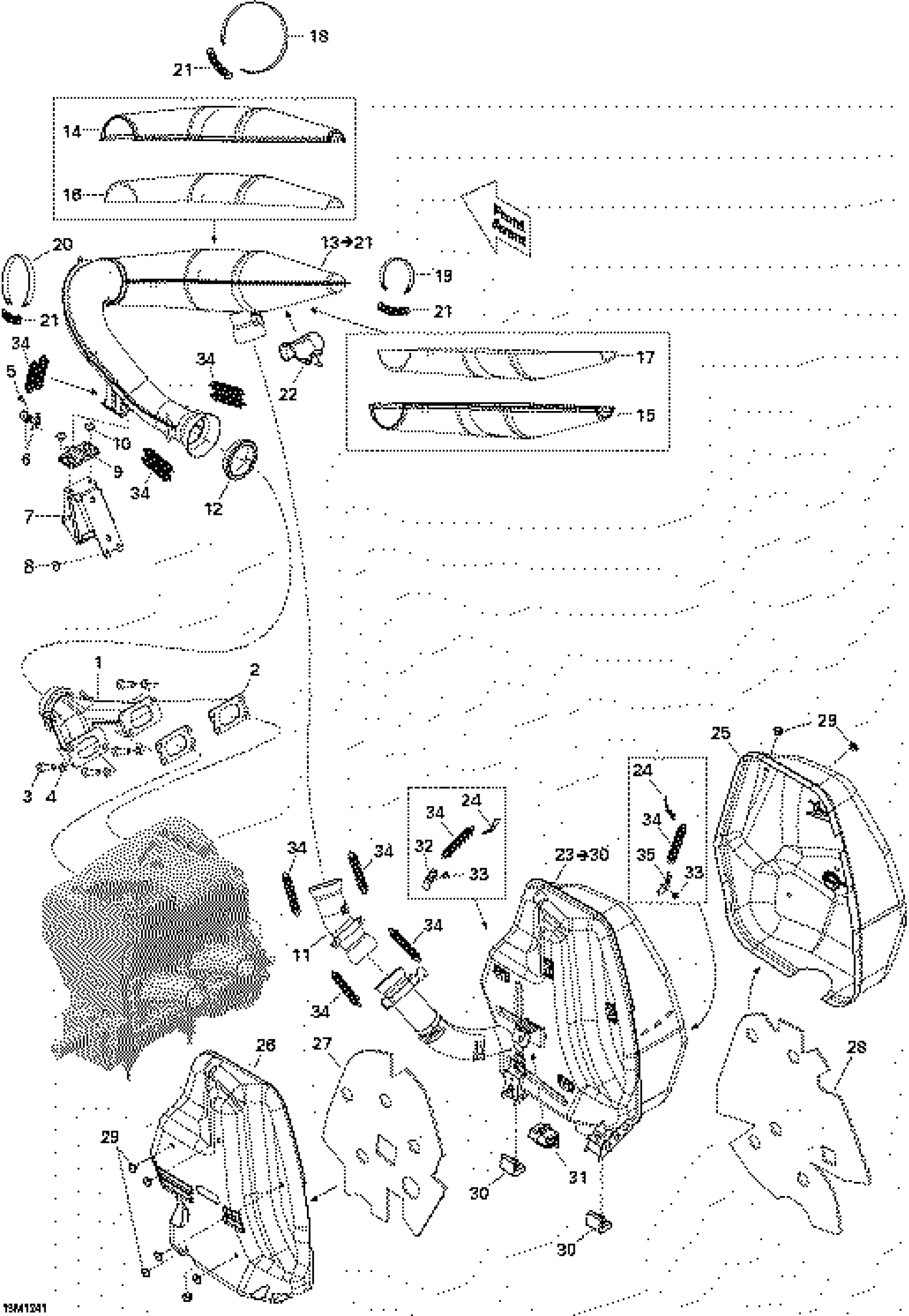

Ski-Doo Skandic WT 550F XU, 2012 Exhaust System Diagram

#

Description
Price

1

Exhaust Manifold

420673065

Unavailable

2

Gasket 1.0 mm

420831849

Unavailable

3

Socket Head Screw M8 X 30

205083044

Unavailable

4

Washer

514053837

$4.28

5

Avex Rivet

390909100

$0.29

6

Spring Bracket

514053436

$8.35

7

Exhaust Muffler Support

514054767

$18.43

8

Hemlock Rivet, 6.5 mm

293150096

$3.17

9

Bumper

514054617

$14.65

10

Pop Rivet 3/16"

293150103

Unavailable

11

Exhaust Elbow

514054411

$77.66

12

Exhaust Gasket

514053644

$25.35

13

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 200 to 200h

514054414

Unavailable

14

Rear Upper Half-enveloppe

514054208

$50.74

15

Rear Lower Half Envellope

514054210

$54.58

16

Upper Insulating Wool

514054244

$12.65

17

Lower Insulating Wool

514054243

$12.65

18

Retaining Strap

514053502

$8.35

19

RETAINING STRAP - Call your local BRP dealership

514053491

Unavailable

20

Retaining Strap

514053498

$8.35

21

Spring

514053643

$6.20

22

Bumper

514054513

$19.20

23

Muffler Ass'y | Includes 400 to 400g

514055055

Unavailable

24

Spring Bracket

514054522

$6.28

25

RH Deflector

514054984

$54.58

26

LH DEFLECTOR - Call your local BRP dealership

514054420

$42.28

27

LH Insulated Wool

514054421

$18.43

28

RH Insulating Wool

514054711

$18.43

29

Pop Rivet 3/16”

390910000

$0.48

30

Lower Stopper

514054529

$17.66

31

Upper Stopper

514054606

$14.92

32

Spring Bracket

514054155

Unavailable

33

Avex Rivet

390909200

Unavailable

34

Spring

415107100

$6.20

35

SPRING BRACKET - Call your local BRP dealership

514054616

$8.78
