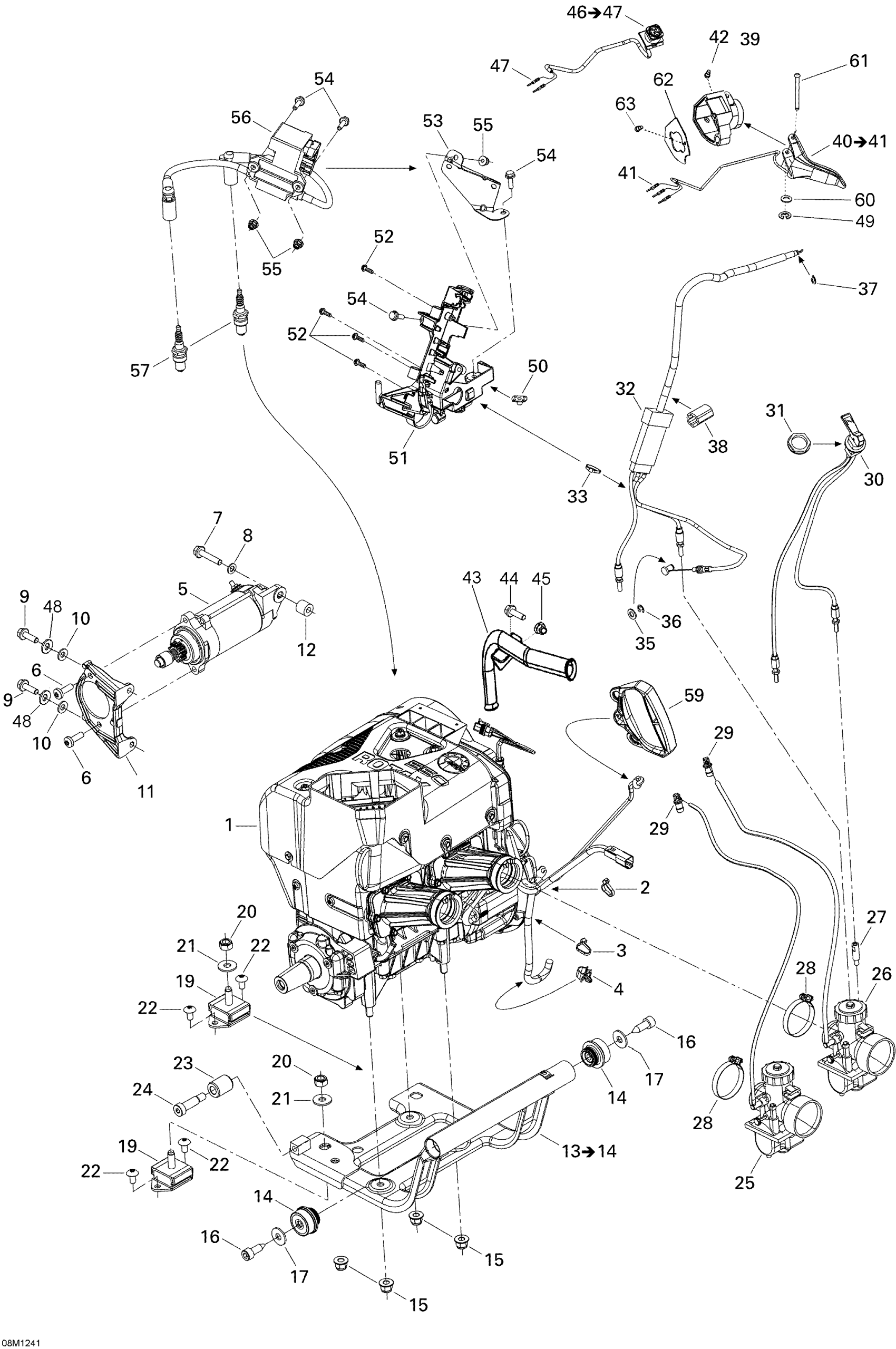

Ski-Doo Skandic WT 550F XU, 2012 Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Tie-Rap 180 mm

414115200

$0.09

3

Tie-Rap 180 mm

414115200

$0.09

4

Tie Rap Mount (screwable)

515176795

$5.11

5

Starter

515178473

$319.49

6

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

7

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

8

Flat Washer With Teflon 8 mm

250200008

Unavailable

9

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

10

Conical Spring Washer M8

234281474

$1.25

11

Support

512060656

Unavailable

12

Spacer

515176597

$13.58

13

Engine Support Ass'y | Includes 1000 to 1000a

512060637

$189.99

14

Rubber Mount

512059691

$44.58

15

Hex. Flange Elastic Nut M10

233201414

$1.26

16

Screw M10 X 30

250000094

$23.05

17

Flat Washer M10 | 4X4

250200014

$1.17

19

Rubber Mount

512060564

$39.97

20

Elastic Stop Nut M10

232500416

$1.56

21

Flat Washer M10 | 4X4

250200014

$1.17

22

Torx Truss Screw M8 X 16

250000746

$2.78

23

Stopper

512060395

$17.66

24

Socket Head Screw, Scotch Grip

250000463

$7.31

25

Carburetor VM30-219, PTO

403138814

$299.20

26

Carburetor VM30-218, MAG

403138813

$304.58

27

EXTENSION - Call your local BRP dealership

512060562

Unavailable

28

Gemi Clamp | Not Shown

512059834

$10.52

29

Male Connector

414814100

$2.18

30

Choke Cable

512060674

$46.12

31

Plastic Nut

512060671

$0.98

32

Throttle Cable

512060885

Unavailable

33

Tie Wrap 142 mm

293750002

Unavailable

35

Flat Washer 8 mm, Nylon

234081100

$1.00

36

Circlip

414753500

$0.59

37

Circlip

414274500

Unavailable

38

Protector

512060313

$9.31

39

Throttle Housing

512060603

$10.57

40

Handle Ass'y | Includes 3820 to 3820a

512061251

$89.97

41

Male Terminal

515175232

$1.49

42

Socket Set Screw M8 X 10

414440800

$4.00

43

Tubing

512060451

$44.58

44

Hex. Flange Screw M6 X 25

207662544

Unavailable

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

46

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

47

Male Terminal

515175232

$1.49

48

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

49

Circlip

293370050

$0.46

50

Nut Welded, M6

293100003

Unavailable

51

Coils Support

512060924

$9.31

52

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

53

Coils Support

512060460

$18.43

54

Hex. Flange Screw M6 X 20

207662044

Unavailable

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

56

Calibrated Module

512060324

$579.99

57

Spark Plug NGK BR9ECS-5

512059552

$9.70

59

Starter Grip

512060136

$14.54

60

Flat Washer M5, Stainless

234051600

$0.64

61

Lever Pin

414438700

$11.14

62

Plate

512060390

$9.31

63

TORX SCREW M2.9 X 12 - Call your local BRP dealership

250000265

Unavailable
