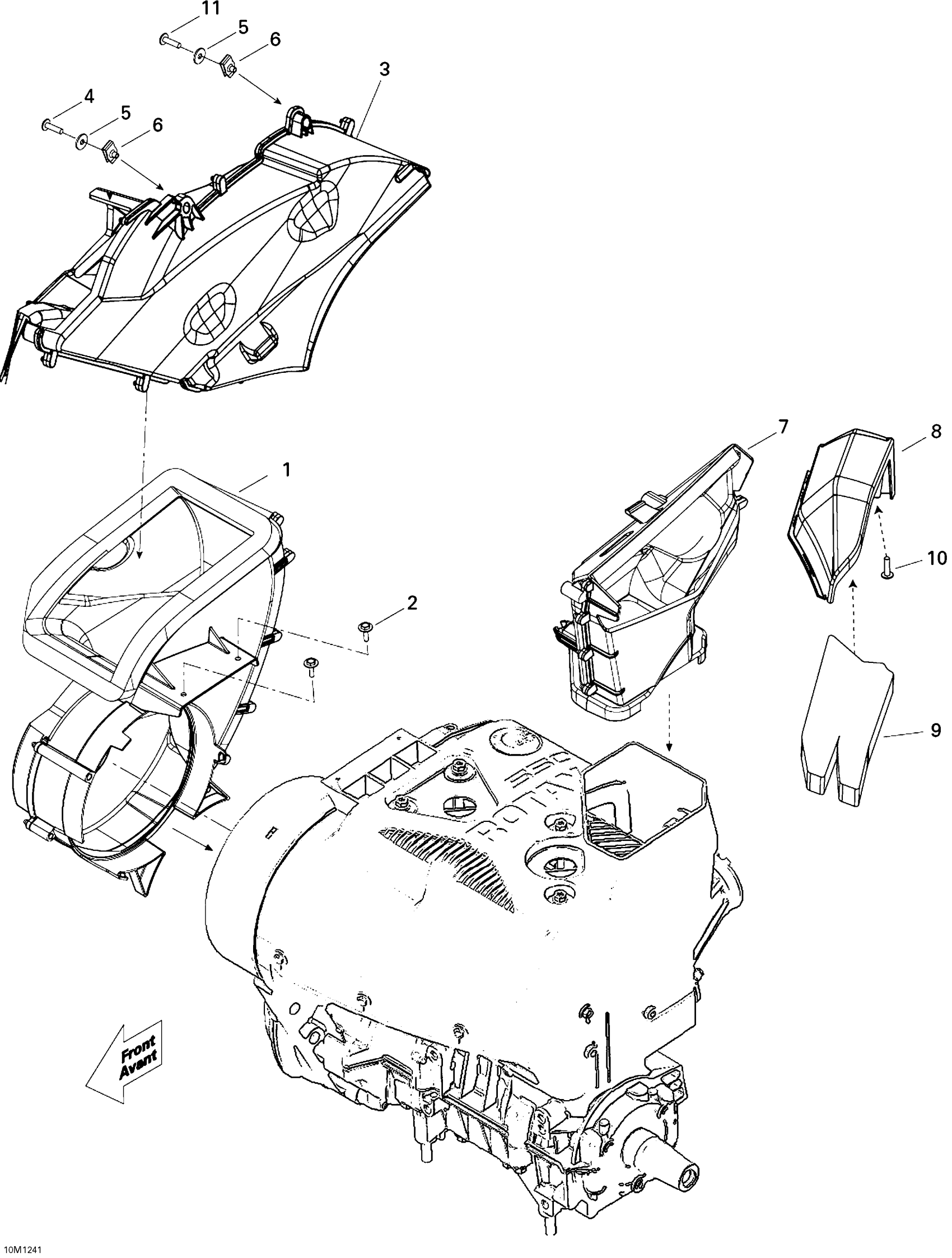

Ski-Doo Skandic WT 550F XU, 2012 Cooling System Diagram

#

Description

Price

1

Inlet Duct

509000840

$102.28

2

PLASTITE SCREW TYPE K-40 M4 X 16 - Call your local BRP dealership

250000377

$3.82

3

Air Chamber Ass'y | Includes 200 to 200a

509001176

Unavailable

4

Torx Screw M5 X 20

250000724

Unavailable

5

Washer | DS 650 X

391301600

Unavailable

6

Panel Nut M5 X 0.8

250000958

Unavailable

7

Duct Outlet Ass'y

509001175

Unavailable

8

Air Out Deflec

509000687

Unavailable

9

Foam-In

509000831

Unavailable

10

Screw Plastofast Mp 6 X 16 Pz

293700048

Unavailable

11

Torx Screw M5 X 25

250000762

$1.74
