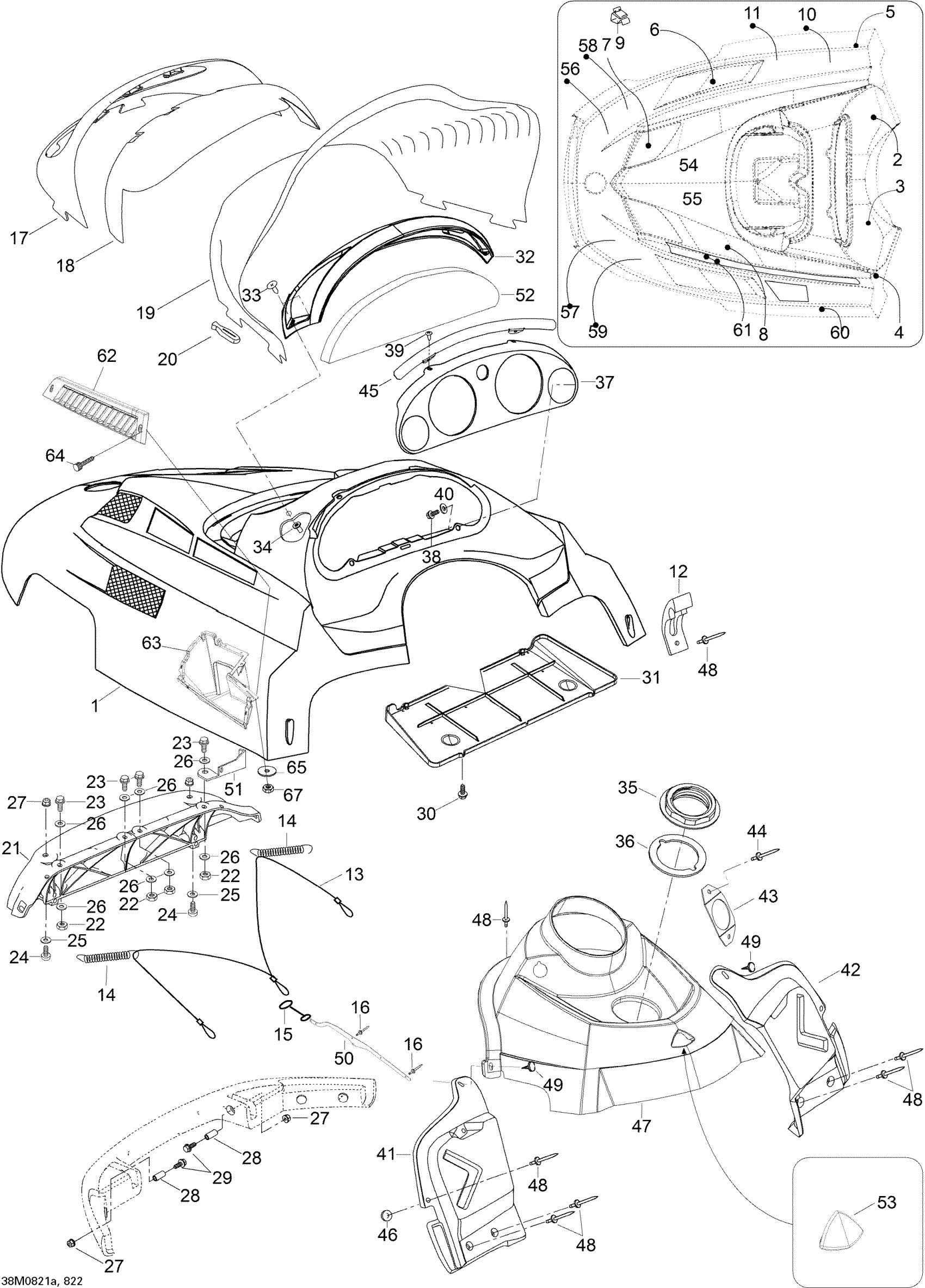

Ski-Doo Skandic WT 550F, 2008 Hood WT 550F Diagram
#
1
Hood Pre Ass'y, YETI Yellow | Includes 1-8, 10-11, 54-55
605354829
Unavailable
2
ISOLATION REAR LH - Call your local BRP dealership
605350906
Unavailable
3
ISOLATION REAR RH - Call your local BRP dealership
605350907
Unavailable
4
ISOLATION REAR RH - Call your local BRP dealership
605350908
Unavailable
5
LOWER ISOLATION REAR LH - Call your local BRP dealership
605350909
Unavailable
6
LH UPPER GRILL - Call your local BRP dealership
605350923
Unavailable
6
RH UPPER GRILL - Call your local BRP dealership
605350924
Unavailable
7
LH LOWER GRILL - Call your local BRP dealership
605350925
Unavailable
7
RH LOWER GRILL - Call your local BRP dealership
605350926
Unavailable
8
LH GRILL - Call your local BRP dealership
605350927
Unavailable
10
UPPER ISOLATION REAR RH - Call your local BRP dealership
605350910
Unavailable
11
ISOLATION REAR CENTER LH - Call your local BRP dealership
605350911
Unavailable
12
Hood Latch
517302152
Unavailable
13
Retainer Cable
605351372
Unavailable
14
Spring This part replaces M5442675.
5442675
Unavailable
15
Cable Keeper
M5442870
Unavailable
16
RIVET - Call your local BRP dealership
M36002
Unavailable
17
HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership
517302158
Unavailable
18
WINDSHIELD SUPPORT - Call your local BRP dealership
517302003
Unavailable
19
Windshield
605152073
Unavailable
20
Windshield Latch
570023800
Unavailable
21
Hinge
517302631
Unavailable
22
Elastic Stop Nut M6
232561414
Unavailable
24
Screw M6X20
M40381
Unavailable
27
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
28
BUSHING - Call your local BRP dealership
605454780
Unavailable
29
Hex. Screw
M40003
Unavailable
30
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
31
INTAKE PLATE - Call your local BRP dealership
605354612
Unavailable
32
COVER - Call your local BRP dealership
605151832
Unavailable
33
Screw M4 X 18
M40061
Unavailable
34
Well-nut
M28051
Unavailable
35
CONSOLE NUT - Call your local BRP dealership
517302043
Unavailable
36
Gasket
M5447116
Unavailable
37
INDICATOR SUPPORT - Call your local BRP dealership
605354134
Unavailable
38
Screw Plastofast 4x10 - Call your local BRP dealership
M40611
Unavailable
39
Screw
M40888
Unavailable
40
WASHER - Call your local BRP dealership
M20039
Unavailable
41
LH CONSOLE - Call your local BRP dealership
605251384
Unavailable
42
RH CONSOLE - Call your local BRP dealership
605251922
Unavailable
43
Support, LH Console
605352405
Unavailable
44
Rivet
36005
Unavailable
45
SUPPORT PLATE - Call your local BRP dealership
605352586
Unavailable
46
Washer 5,3 mm
20008
Unavailable
47
Central Console
605252075
Unavailable
50
BRACKET - Call your local BRP dealership
605452657
Unavailable
51
RH HOOD SUPPORT - Call your local BRP dealership
605351464
Unavailable
51
LH HOOD SUPPORT - Call your local BRP dealership
605351463
Unavailable
52
FILTER - Call your local BRP dealership
605352583
Unavailable
53
PLUG - Call your local BRP dealership
605453896
Unavailable
54
ISOLATION CENTER LH - Call your local BRP dealership
605350912
Unavailable
55
ISOLATION CENTER RH - Call your local BRP dealership
605350913
Unavailable
56
Not Available As Spare Parts
XXX
Unavailable
57
Not Available As Spare Parts
XXX
Unavailable
58
Not Available As Spare Parts
XXX
Unavailable
59
Not Available As Spare Parts
XXX
Unavailable
60
Not Available As Spare Parts
XXX
Unavailable
61
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.
44001
Unavailable
62
Cooling channel - Call your local BRP dealership
605354586
Unavailable
63
Cooling channel - Call your local BRP dealership
605354585
Unavailable
64
Self Tapping Screw #8 X 5/8
250000202
Unavailable
65
Washer | DS 650 X
391301600
Unavailable
66
Torx Screw M5 X 20
250000724
Unavailable
67
Elastic Stop Nut M5
232551414
Unavailable
