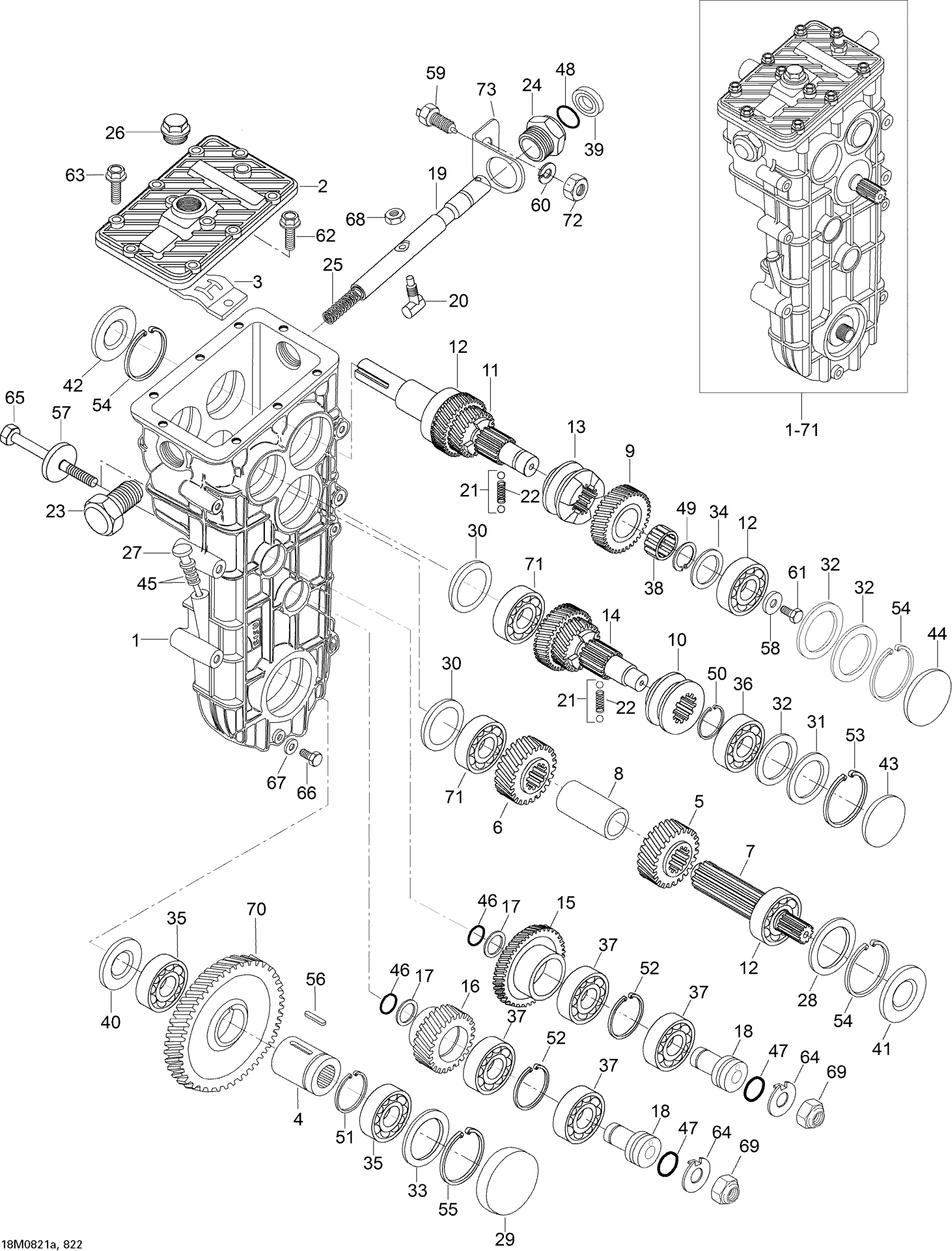

Ski-Doo Skandic WT 550F, 2008 Transmission WT 550F Diagram
#
—
GEAR BOX - Call your local BRP dealership | Includes 1 to 71
605612000
Unavailable
1
HOUSING - Call your local BRP dealership This part replaces M875156138.
875156138
Unavailable
2
COVER - Call your local BRP dealership
M875156043
Unavailable
3
H-SCHEME - Call your local BRP dealership This part replaces M875156111.
875156111
Unavailable
4
SHAFT - Call your local BRP dealership
M875156218
Unavailable
5
Gear Z=29 - Call your local BRP dealership
875156276
Unavailable
6
Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054.
875156054
Unavailable
7
SHAFT - Call your local BRP dealership This part replaces M875156069.
875156069
Unavailable
8
SLEEVE - Call your local BRP dealership
M875156087
Unavailable
9
SPROCKET Z=27 L.H. - Call your local BRP dealership This part replaces M875156052.
875156052
Unavailable
10
Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.
875156005
Unavailable
11
COUNTER SHAFT - Call your local BRP dealership | Includes 11 to 12 This part replaces M875156063.
875156063
Unavailable
12
BEARING 6305 - Call your local BRP dealership This part replaces M610063050.
610063050
Unavailable
13
Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.
875156005
Unavailable
14
Shaft - Call your local BRP dealership This part replaces M875156068.
875156068
Unavailable
15
SPROCKET-28 - Call your local BRP dealership This part replaces M875156050.
875156050
Unavailable
16
SPROCKET 31 TH - Call your local BRP dealership
M875156049
Unavailable
17
Washer - Call your local BRP dealership This part replaces M875156328.
875156328
Unavailable
18
SHAFT - Call your local BRP dealership
619230005
Unavailable
19
Shaft - Call your local BRP dealership This part replaces M875156072.
875156072
Unavailable
20
Pin - Call your local BRP dealership This part replaces M875156073.
875156073
Unavailable
21
Ball This part replaces M616810064.
616810064
Unavailable
22
Spring - Call your local BRP dealership This part replaces M875156105.
875156105
Unavailable
23
SLEEVE - Call your local BRP dealership This part replaces M875156076.
875156076
Unavailable
24
SLEEVE - Call your local BRP dealership This part replaces M875156077.
875156077
Unavailable
25
Spring This part replaces M875156078.
875156078
Unavailable
26
Oilplug - Call your local BRP dealership This part replaces M875156098.
875156098
Unavailable
27
DIPSTICK - Call your local BRP dealership This part replaces M875156278.
875156278
Unavailable
28
Shim 0.5 mm - Call your local BRP dealership This part replaces M617395067.
617395067
Unavailable
29
Plug - Call your local BRP dealership This part replaces M614100068.
614100068
Unavailable
30
Plug This part replaces M875152953.
875152953
Unavailable
31
Shim 0.5 mm - Call your local BRP dealership This part replaces M617394352.
617394352
Unavailable
31
Shim
M617394252
Unavailable
32
Shim 0,3mm - Call your local BRP dealership This part replaces M617395065.
617395065
Unavailable
33
ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.
617395568
Unavailable
34
WASHER-AXIAL - Call your local BRP dealership
M616092542
Unavailable
35
Bearing - Call your local BRP dealership This part replaces M6008.
6008
Unavailable
36
Bearing - Call your local BRP dealership This part replaces M6304.
6304
Unavailable
37
BEARING - Call your local BRP dealership This part replaces M612030303.
612030303
Unavailable
38
Needle bearing This part replaces M611002529.
611002529
Unavailable
39
Oil seal - Call your local BRP dealership This part replaces M614102031.
614102031
Unavailable
40
Oil seal This part replaces M614102852.
614102852
Unavailable
41
Oil seal This part replaces M614102562.
614102562
Unavailable
42
Oil seal This part replaces M614103562.
614103562
Unavailable
43
Plug This part replaces M614100052.
614100052
Unavailable
44
PLUG - Call your local BRP dealership This part replaces M614100062.
614100062
Unavailable
45
O-ring - Call your local BRP dealership This part replaces M614600725.
614600725
Unavailable
46
O-RING - Call your local BRP dealership This part replaces M614601224.
614601224
Unavailable
47
O-ring This part replaces M614602431.
614602431
Unavailable
48
O-ring This part replaces M614601523.
614601523
Unavailable
49
CIRCLIP - Call your local BRP dealership This part replaces M617450025.
617450025
Unavailable
50
CIRCLIP - Call your local BRP dealership This part replaces M617450028.
617450028
Unavailable
51
CIRCLIP - Call your local BRP dealership
M617300040
Unavailable
52
Circlip - Call your local BRP dealership This part replaces M617330047.
617330047
Unavailable
53
Retaining Ring (1=10Pcs) This part replaces M31002.
31002
Unavailable
54
CIRCLIP - Call your local BRP dealership This part replaces M617330062.
617330062
Unavailable
55
Snapring - Call your local BRP dealership This part replaces M617330068.
617330068
Unavailable
56
KEY - Call your local BRP dealership
M603345080
Unavailable
57
WASHER - Call your local BRP dealership
619230004
Unavailable
58
WASHER - Call your local BRP dealership
M875156112
Unavailable
59
Switch - Call your local BRP dealership This part replaces M654100225.
654100225
Unavailable
60
WASHER - Call your local BRP dealership
M20016
Unavailable
62
Hex. Screw
M40337
Unavailable
63
Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402.
537001402
Unavailable
64
Washer - Call your local BRP dealership This part replaces M875156327.
875156327
Unavailable
65
SCREW - Call your local BRP dealership
619230003
Unavailable
66
HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342.
528801342
Unavailable
67
Gasket-ring - Call your local BRP dealership
615580812
Unavailable
68
NUT M10 - Call your local BRP dealership This part replaces M510611002.
510611002
Unavailable
69
NUT M10 - Call your local BRP dealership This part replaces M510600802.
510600802
Unavailable
70
SPROCKET-55 - Call your local BRP dealership This part replaces M875156048.
875156048
Unavailable
71
BEARING 6304 - Call your local BRP dealership This part replaces M610063044.
610063044
Unavailable
72
NUT - Call your local BRP dealership
M33021
Unavailable
73
BRACKET - Call your local BRP dealership
M5346698
Unavailable
