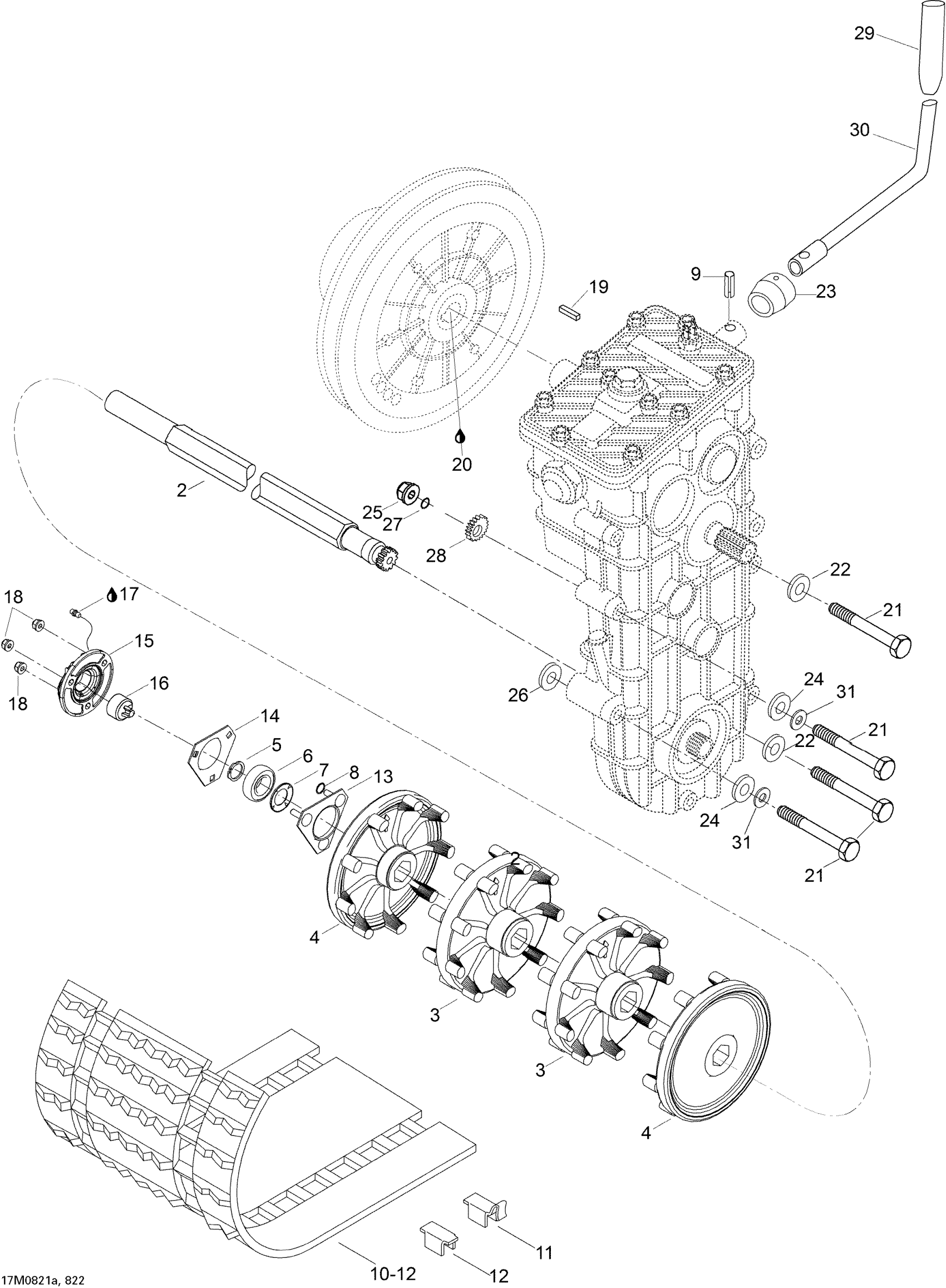

Ski-Doo Skandic WT 550F, 2008 Drive System WT 550F Diagram
#
Description
Price
1
Not Available As Spare Parts
XXX
Unavailable
2
DRIVE AXLE - Call your local BRP dealership
605253104
Unavailable
4
HALF SPROCKET - Call your local BRP dealership
415067400
Unavailable
5
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
6
Ball Bearing
293350060
Unavailable
7
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
9
Pin Spring
M41008
Unavailable
10
Track ass'y | Includes 10 to 12 This part replaces M13070.
13070
Unavailable
11
CLEAT-GUIDE - Call your local BRP dealership
M5318323
Unavailable
12
CLEAT - Call your local BRP dealership
M5318322
Unavailable
13
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
14
FLANGE - Call your local BRP dealership
501025000
Unavailable
15
Flange, Speedo
504152173
Unavailable
16
MAGNETIC ADAPTOR - Call your local BRP dealership
504152040
Unavailable
17
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
18
Hex. Flange Elastic Nut M8
233281414
Unavailable
19
KEY - Call your local BRP dealership This part replaces M418763.
619690074
Unavailable
20
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
21
Screw M8 X 80
M40012
Unavailable
22
Flat Washer 8 mm
234081410
Unavailable
23
SLEEVE - Call your local BRP dealership
M5446699
Unavailable
25
Hex. Flange Elastic Nut M8
233281414
Unavailable
26
M8 Washer This part replaces M20077.
20077
Unavailable
27
O-RING - Call your local BRP dealership
506151140
Unavailable
28
TOOLS - Call your local BRP dealership
605454017
Unavailable
29
Shift button This part replaces M28247.
28247
Unavailable
30
SHIFT HANDLE - Call your local BRP dealership
605350153
Unavailable
31
Lock Washer 8 mm
234181401
Unavailable
