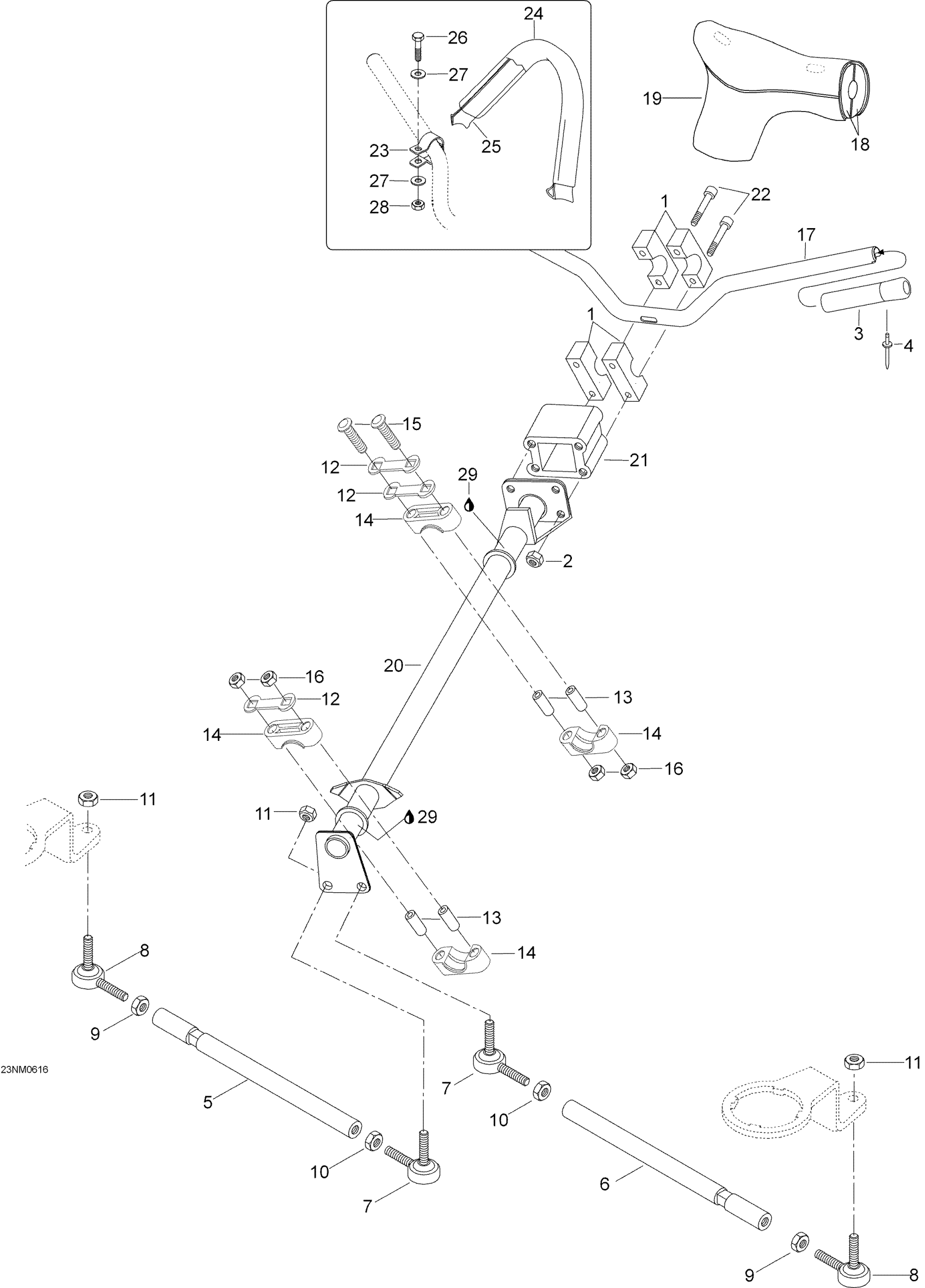

Ski-Doo Skandic WT 550F, 2006 Steering System WT 550F Diagram
#
Description
Price
1
Support Guidon *Support-Steer.
M548448
Unavailable
2
Hex. Elastic Stop Nut M8
232581414
Unavailable
4
Rivet
36005
Unavailable
5
Tie Rod LH
M5441066
Unavailable
6
Rh Tie Rod
M548983
Unavailable
7
LH JOINT BALL - Call your local BRP dealership
506151845
Unavailable
8
RH BALL JOINT - Call your local BRP dealership
506151492
Unavailable
9
RH NUT - Call your local BRP dealership
M33019
Unavailable
10
LH NUT - Call your local BRP dealership
M33017
Unavailable
11
Elastic Flange Nut M10
232501416
Unavailable
12
Stopper Plate
506150600
Unavailable
13
Housing Bushing
506150500
Unavailable
14
Housing Half
506150400
Unavailable
15
Carriage Bolt M8 X 70
207787044
Unavailable
16
Hex. Flange Elastic Nut M8
233281414
Unavailable
17
HANDLE BAR - Call your local BRP dealership
605249033
Unavailable
18
REAR PADDING STEERING - Call your local BRP dealership
605250306
Unavailable
18
Front Padding Steering
605250305
Unavailable
19
Handle Bar Cover
605250279
Unavailable
20
MAIN TUBE - Call your local BRP dealership
605249849
Unavailable
21
EXTENSION - Call your local BRP dealership
605349584
Unavailable
22
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
M40124
Unavailable
26
Hex. Screw M6 X 25
207162544
Unavailable
27
Flat Washer 6 mm
234061410
Unavailable
28
Elastic Stop Nut M6
232561414
Unavailable
29
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
