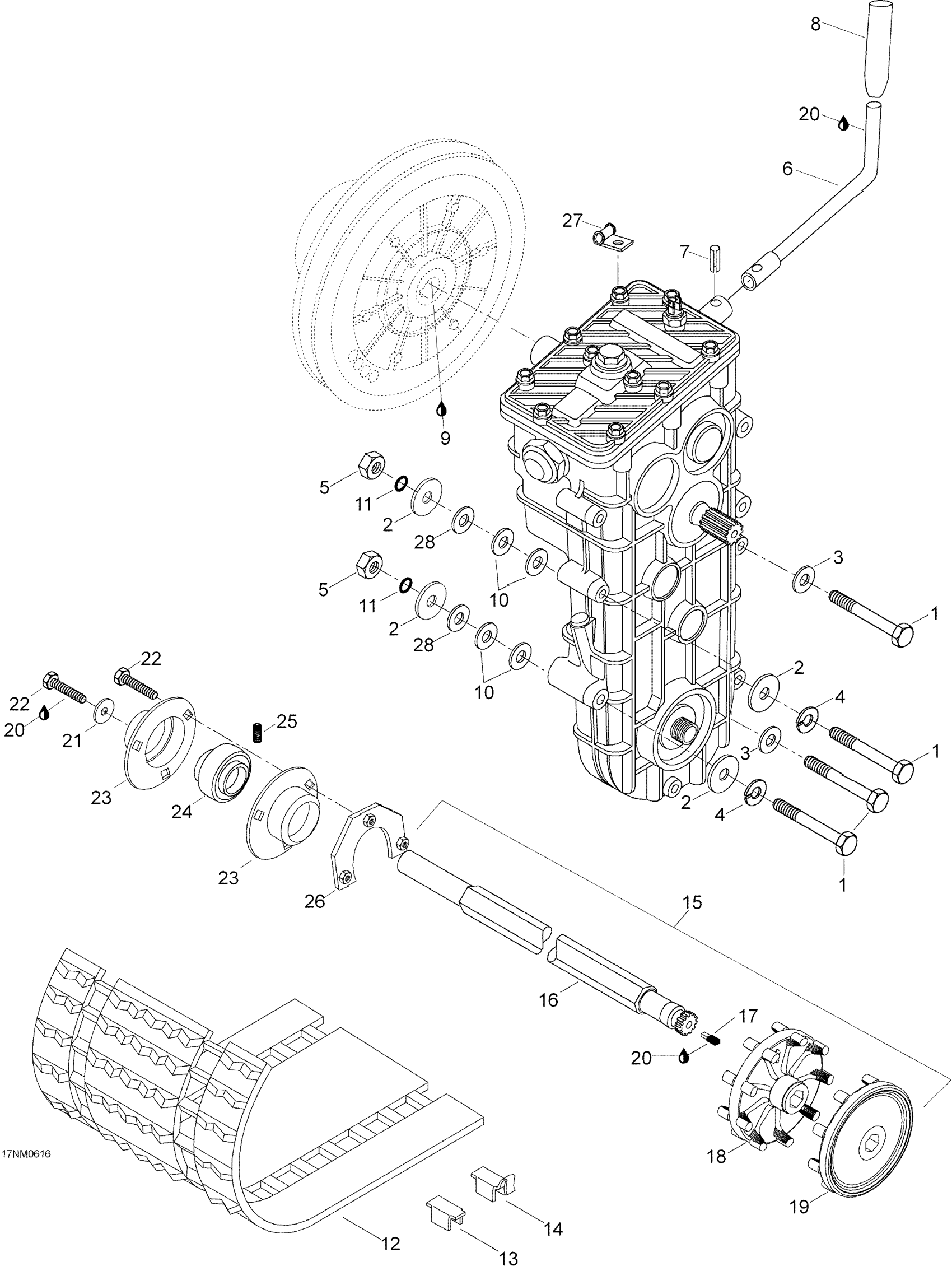

Ski-Doo Skandic WT 550F, 2006 Drive System 550 WT Diagram
#
Description
Price
1
Screw M8 X 80
M40012
Unavailable
3
Flat Washer 8 mm
234081410
Unavailable
4
Lock Washer 8 mm
234181401
Unavailable
5
Hex. Elastic Stop Nut M8
232581414
Unavailable
6
Bras Vitesse *Arm-Shifter
M5340902
Unavailable
7
Pin Spring
M41008
Unavailable
8
Shift button This part replaces M28247.
28247
Unavailable
9
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
10
M8 Washer This part replaces M20077.
20077
Unavailable
11
O-RING - Call your local BRP dealership
506151140
Unavailable
12
Track ass'y | Includes 10 to 12 This part replaces M13070.
13070
Unavailable
13
CLEAT - Call your local BRP dealership
M5318322
Unavailable
14
CLEAT-GUIDE - Call your local BRP dealership
M5318323
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Drive Axle This part replaces M5345117.
5345117
Unavailable
17
Speed Drive Insert This part replaces M542013.
542013
Unavailable
19
HALF SPROCKET - Call your local BRP dealership
415067400
Unavailable
21
Washer
M546336
Unavailable
22
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.
40336
Unavailable
23
Bearing House This part replaces M534430.
534430
Unavailable
24
BALL BEARING - Call your local BRP dealership | Includes 24 to 25
M31UC205
Unavailable
25
BALL BEARING - Call your local BRP dealership | Includes 24 to 25
M31UC205
Unavailable
26
Fasten Ring Weld This part replaces M546421.
546421
Unavailable
27
Not Available As Spare Parts
XXX
Unavailable
28
Not Available As Spare Parts
XXX
Unavailable
