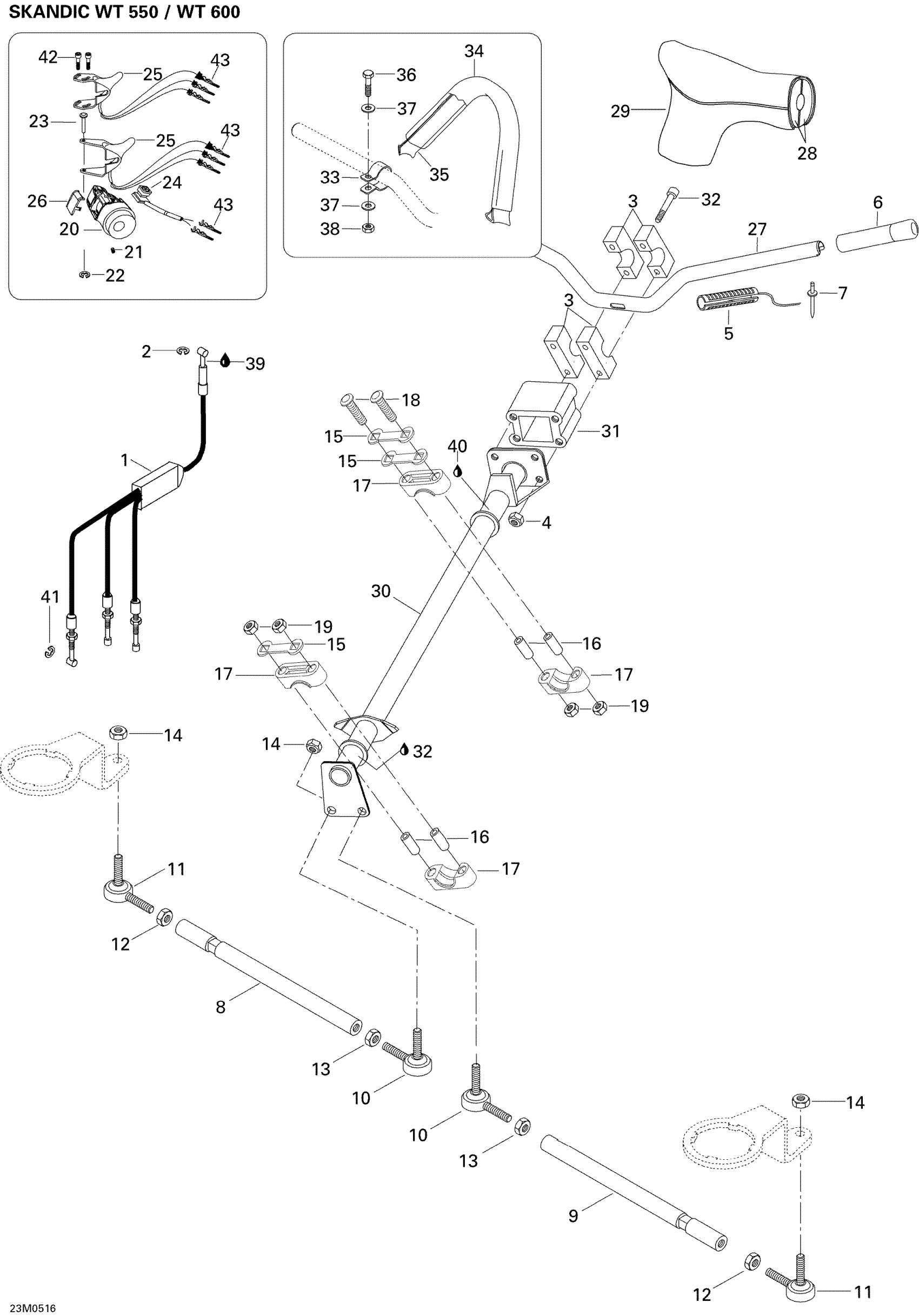

Ski-Doo Skandic WT 550F, 2005 Steering System 550F WT Diagram
#
1
Throttle Cable
605249117
Unavailable
2
Circlip
M31038
Unavailable
3
Support Guidon *Support-Steer.
M548448
Unavailable
4
Hex. Elastic Stop Nut M8
232581414
Unavailable
5
Heating Grip
515175664
Unavailable
7
Rivet
36005
Unavailable
8
Tie Rod LH
M5441066
Unavailable
9
Rh Tie Rod
M548983
Unavailable
10
LH JOINT BALL - Call your local BRP dealership
506151845
Unavailable
11
RH BALL JOINT - Call your local BRP dealership
506151492
Unavailable
12
RH NUT - Call your local BRP dealership
M33019
Unavailable
13
LH NUT - Call your local BRP dealership
M33017
Unavailable
14
Elastic Flange Nut M10
232501416
Unavailable
15
Stopper Plate
506150600
Unavailable
16
Housing Bushing
506150500
Unavailable
17
Housing Half
506150400
Unavailable
18
Carriage Bolt M8 X 70
207787044
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
THROTTLE HOUSING - Call your local BRP dealership
512059489
Unavailable
22
Circlip | Model-RS
414439000
Unavailable
24
Kill Switch
515175410
Unavailable
25
Handle Ass'y
512060214
Unavailable
26
Switch Cover
572100901
Unavailable
27
HANDLE BAR - Call your local BRP dealership
605249033
Unavailable
28
REAR PADDING STEERING - Call your local BRP dealership
605250306
Unavailable
28
Front Padding Steering
605250305
Unavailable
29
Handle Bar Cover
605250279
Unavailable
30
MAIN TUBE - Call your local BRP dealership
605249849
Unavailable
31
EXTENSION - Call your local BRP dealership
605349584
Unavailable
32
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
M40124
Unavailable
33
Support Plate
506148200
Unavailable
36
Hex. Screw M6 X 25
207162544
Unavailable
37
Flat Washer 6 mm
234061410
Unavailable
38
Elastic Stop Nut M6
232561414
Unavailable
39
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
40
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
42
Not Available As Spare Parts
XXX
Unavailable
43
CONNECTOR - Call your local BRP dealership
605642628
Unavailable
