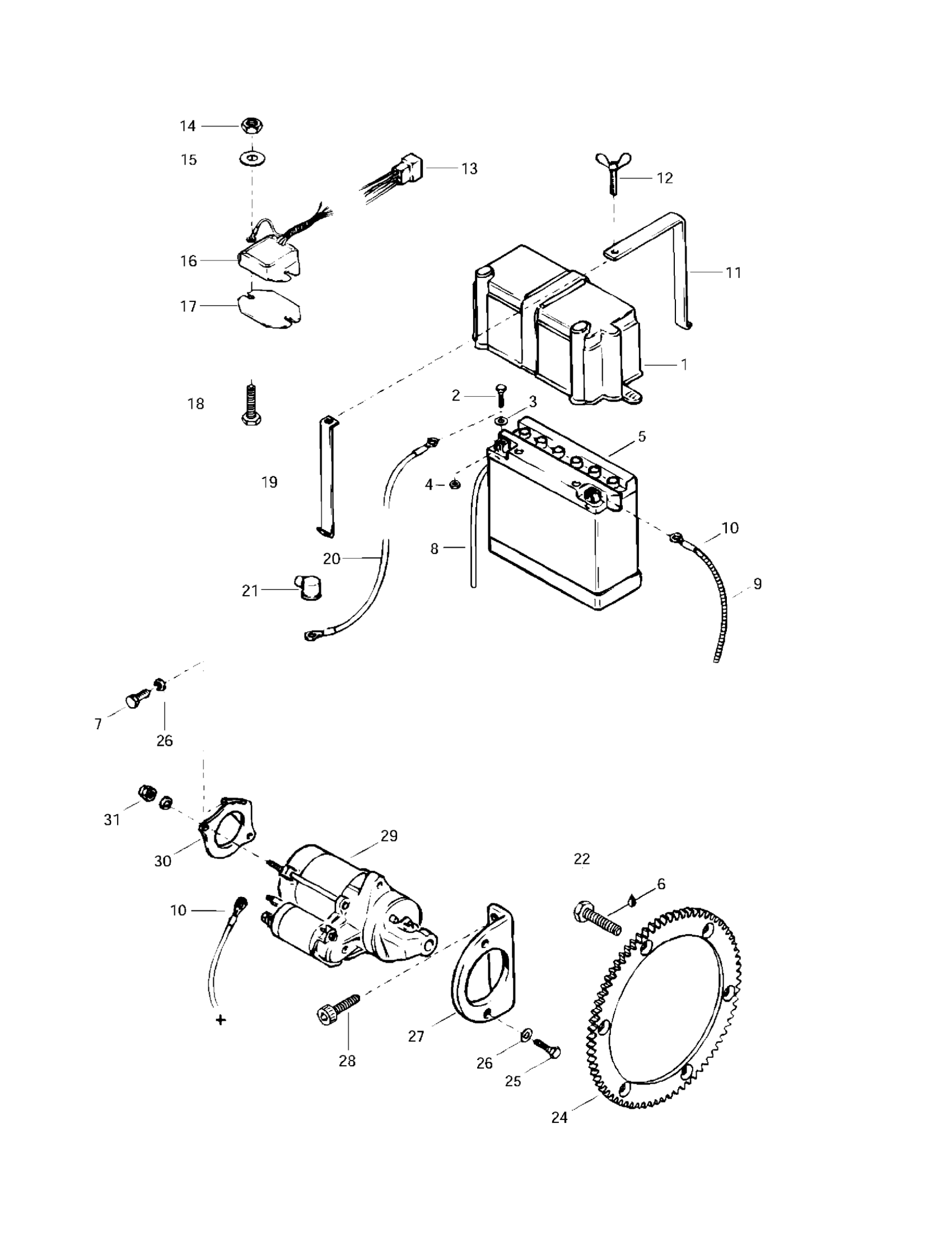

Ski-Doo Skandic Wide Track, 1997 Electrical System 2 Diagram

#

Description
Price

1

Battery Cover

570022000

Unavailable

2

Hex. Screw M6 X 16

207161644

$0.61

3

Flat Washer 6 mm

234061410

$1.04

4

Hex. Nut M6

232061414

$0.44

5

Battery | Includes 4 - 8.

410301100

Unavailable

5A

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

5B

Battery Cap

410300800

Unavailable

5C

Hex. Screw M6 X 16

207161644

$0.61

5D

Hex. Nut M6

232061414

$0.44

6

Loctite 243, 10 ml

293800060

$20.77

7

Hex. Screw M8 x 16

207181644

$0.87

8

Tube | Skandic Super Wide Track.

M39039

Unavailable

9

HOUSING - Call your local BRP dealership

M28012

Unavailable

10

BATTERY WIRE - Call your local BRP dealership

605349434

Unavailable

11

Steel Strip | Skandic Super Wide Track.

M549888

Unavailable

12

Screw M6 x 25 | Skandic Super Wide Track.

M40108

Unavailable

13

Tab Housing | Skandic Super Wide Track.

M42063

Unavailable

14

Elastic Stop Nut M5

232551414

$0.72

15

Flat Washer M5

234051410

$0.44

16

VOLTAGE REGULATOR - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

515163900

Unavailable

17

Plate | Skandic Super Wide Track.

M544741

Unavailable

18

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

19

Steel Strip | Skandic Super Wide Track.

M549889

Unavailable

20

Ground Wire

M549887

Unavailable

21

Protector Cap | Skandic Wide Track. Skandic Super Wide Track.

M42673580

Unavailable

22

Screw

M40322

Unavailable

24

Ring Gear (86 Theet) | Formula Deluxe 380 F.

414807500

Unavailable

25

Hex. Screw M8 X 20

207182044

$0.61

26

Lock Washer 8 mm

234181401

$0.89

27

Starter Bracket

420951417

Unavailable

28

Socket Head Screw M8 X 20

205082044

$1.09

29

ELECTRIC STARTER ASSY - Call your local BRP dealership

410212400

Unavailable

30

Starter Support (MAG) | Formula DLX 500 F.

420951427

Unavailable

31

Elastic Stop Nut M5

232551414

$0.72
