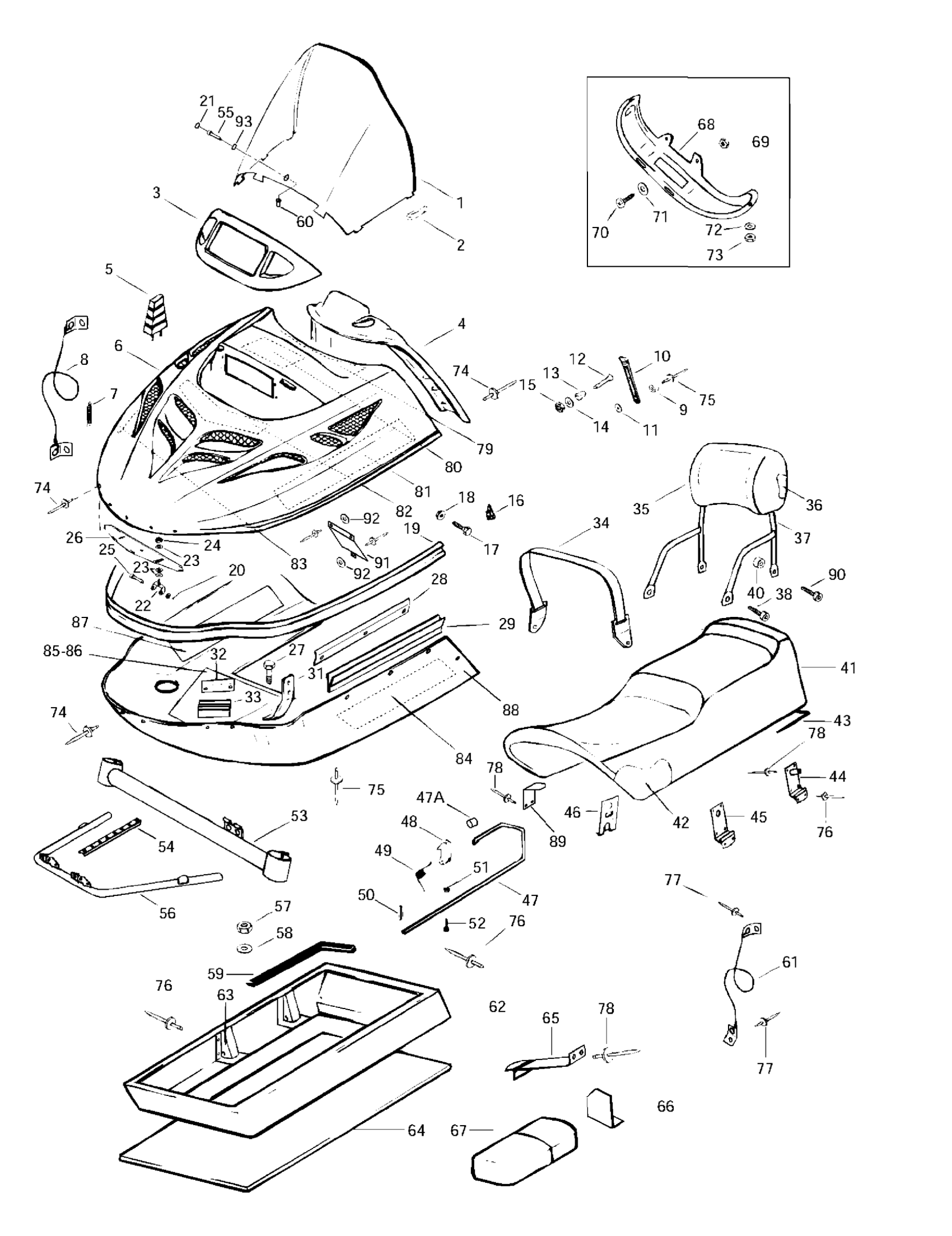

Ski-Doo Skandic Wide Track, 1997 Cab, Console, Seat Diagram

#

Description
Price

1

Windshield

M5340168

Unavailable

2

Windshield Latch

570023800

Unavailable

3

Lamp Moulding

572079200

Unavailable

4

Dash | Skandic Super Wide Track.

M5341434

Unavailable

5

Windshield Support

570277900

Unavailable

6

Hood (Black) | Skandic Super Wide Track.

M539385

Unavailable

7

Spring

M2505171211

Unavailable

8

Retainer Cable

M5440745

Unavailable

9

Bushing

M5440681

Unavailable

10

Hood Latch

M531955

Unavailable

11

Flat Washer 6 mm

234062410

$0.64

12

Slot Sc. M4 X 25 Din966M4.8Zne(1=10Pcs) This part replaces M40168.

40168

$2.06

13

Counter Roller

605449087

$4.00

14

Flat Washer M5

234051410

Unavailable

15

Elastic Stop Nut M5

232551414

Unavailable

16

LH Cap

M549096L

Unavailable

RH Cap

M549096R

Unavailable

17

Screw

M40071

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

19

Front Bumper

M5241162

Unavailable

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

21

Snap Cap | Skandic Super Wide Track.

M282003

Unavailable

22

Lower Hinge

M5440083

Unavailable

23

Washer 5,3 mm

20008

Unavailable

24

Elastic Stop Nut M4

232541414

$0.48

25

Screw

M40232

Unavailable

26

Upper Hinge

M529926

Unavailable

27

Hex. Screw M8 x 16

207181644

$0.87

28

Guide-Hood

M546852

Unavailable

29

Rubber Guide

M5441822

Unavailable

31

LH Guide

M549251

Unavailable

RH Guide

M549250

Unavailable

32

Guide-Hood

M542471

Unavailable

33

Rubber Guide

M5441821

Unavailable

34

Belt-Seat | Skandic Wide Track LC.

M5340171

Unavailable

35

COVER-BACKREST - Call your local BRP dealership This part replaces M5340917.

5340917

Unavailable

36

Backrest Foam

M539399

Unavailable

37

Backrest | Skandic 500F. Skandic 600.

M539877

Unavailable

38

Socket Head Screw M8 X 20

205082044

$1.09

40

Spacer

M5440665

Unavailable

41

Seat Foam | Skandic WT. Skandic WT LC.

M5141222

Unavailable

42

Seat Cover

M539489

Unavailable

43

SEALING STRIP PROFIL - Call your local BRP dealership

M5440059

Unavailable

44

HINGE - Call your local BRP dealership

M549874

Unavailable

45

HINGE - Call your local BRP dealership

M5440581

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Pivot Pin | Skandic Wide Track. Skandic Wide Track LC.

M539875

Unavailable

47A

Cap

M28019

Unavailable

48

Lock Tongue | Skandic Wide Track. Skandic Wide Track LC.

M549605

Unavailable

49

Lock Plate

M549732

Unavailable

50

Lock Pin | Skandic Wide Track. Skandic Wide Track LC.

M41006

Unavailable

51

Elastic Stop Nut M4

232541414

$0.48

52

Screw

M40146

Unavailable

53

Face Bar

M529485

Unavailable

54

Support

M5340470

Unavailable

55

Screw M5 x 30 | Skandic Super Wide Track.

M40171

Unavailable

56

Bottom Pan Support

M5141369

Unavailable

57

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

58

Flat Washer 6 mm

234062410

$0.64

59

Gasket Tape | Skandic Wide Track. Skandic Wide Track LC.

M39013

Unavailable

60

NUT M5 - Call your local BRP dealership

250100018

Unavailable

61

ton | Skandic Wide Track LC.

M5440747

Unavailable

62

Welded Seat Base | Skandic Wide Track LC.

M539764

Unavailable

63

Housing | Skandic Wide Track. Skandic Wide Track LC.

M539595

Unavailable

64

Cushion | Skandic Wide Track. Skandic Wide Track LC.

M539873

Unavailable

65

Spring

M539455

Unavailable

66

Plate End | Skandic Wide Track. Skandic Wide Track LC.

M549324

Unavailable

67

Tool Box Kit | Skandic Wide Track LC.

529019700

Unavailable

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

68

Air Duct

M539894

Unavailable

69

Elastic Stop Nut M5

232551414

Unavailable

70

Screw

M40156

Unavailable

71

Flat Washer M5

234051410

Unavailable

72

Washer

M20001

Unavailable

73

Nut

M33001

Unavailable

74

Rivet

36005

Unavailable

75

Black, Rivet

M36036

Unavailable

76

Rivet | Skandic Wide Track. Skandic Wide Track LC.

M36079

Unavailable

77

Rivet

36005

Unavailable

78

Rivet

36108

$1.85

79

Not Available As Spare Part - Friction Washer

Unavailable

80

Not Available As Spare Part - Friction Washer

Unavailable

81

Not Available As Spare Part - Friction Washer

Unavailable

82

Not Available As Spare Part - Friction Washer

Unavailable

83

Not Available As Spare Part - Friction Washer

Unavailable

84

Not Available As Spare Part - Friction Washer

Unavailable

85

Not Available As Spare Part - Friction Washer

Unavailable

86

Not Available As Spare Part - Friction Washer

Unavailable

87

Not Available As Spare Part - Friction Washer

Unavailable

88

Bottom Pan (Black)

M5141300

Unavailable

89

Reinforcement | Skandic Wide Track LC.

M5240851

Unavailable

90

Socket Head Screw M8 X 30

M40135

Unavailable

91

Heat Cover

M5341799

Unavailable

92

Washer 5,3 mm

20008

Unavailable

93

Retainer cap | Skandic Super Wide Track.

M282002

Unavailable
