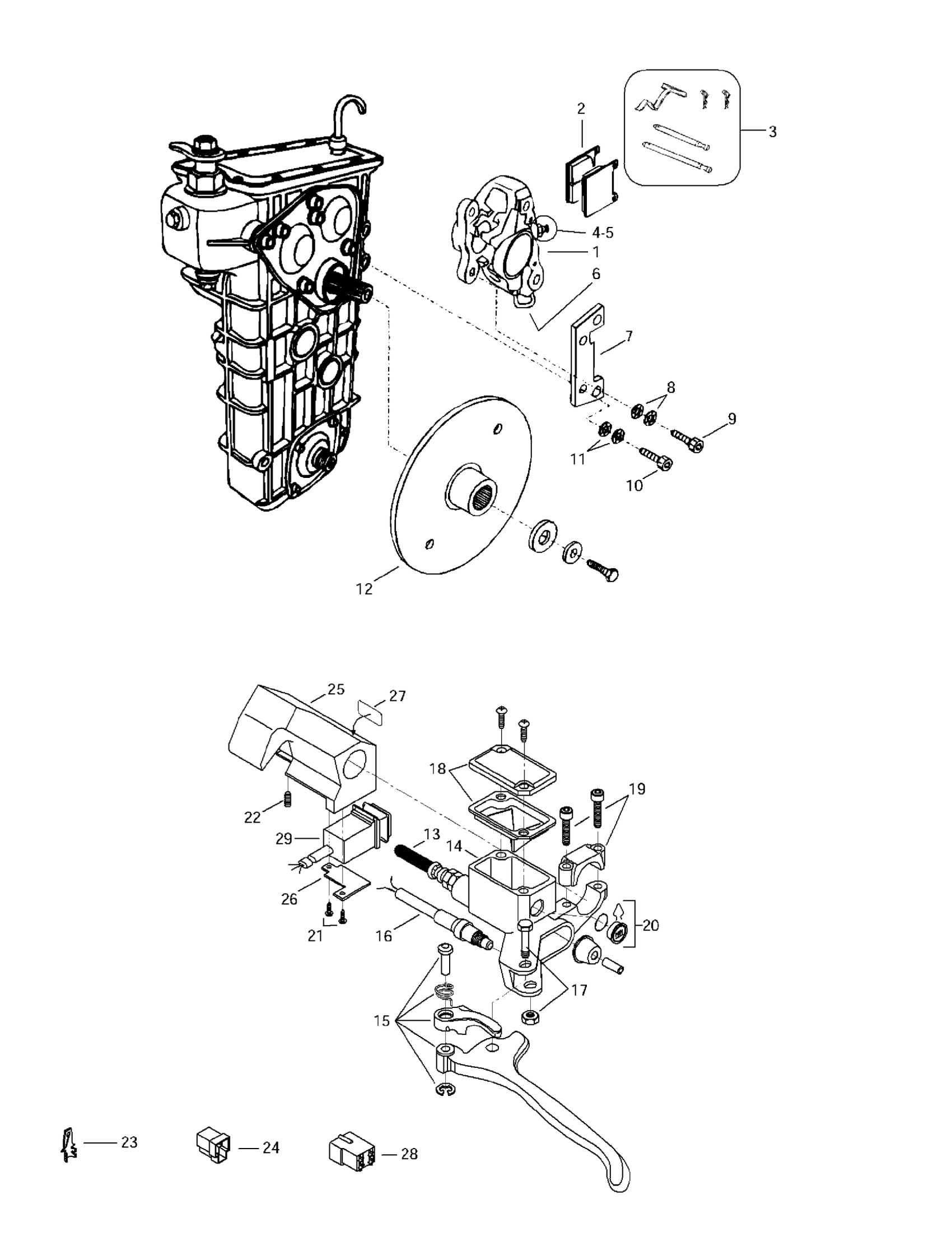

Ski-Doo Skandic Wide Track, 1997 Brake Diagram
#
Description
Price
1
Caliper | Includes 10 - 15.
414920000
Unavailable
2
Brake Pad Kit
415084600
Unavailable
3
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
4
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
5
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
6
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
7
Support
M5441344
Unavailable
8
Lock Washer D10
20068
Unavailable
9
Screw
M40053
Unavailable
10
Socket Head Screw M8 X 30
205083044
Unavailable
11
Lock Washer
M20072
Unavailable
12
Brake Disk
M5340962
Unavailable
13
Hose
414972700
Unavailable
14
Master Cylinder | Formula 500 Deluxe.
415034600
Unavailable
15
LEVER - Call your local BRP dealership
507032428
Unavailable
16
Microswitch
507032366
Unavailable
17
Pin Ass'y
415030000
Unavailable
18
Cap
415029900
Unavailable
20
WINDOW - Call your local BRP dealership
414990600
Unavailable
23
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
25
DIMMER SWITCH HOUSING - Call your local BRP dealership | SWT 550
572079500
Unavailable
26
Plate | SWT 550
517283800
Unavailable
27
Switch Decal
415025500
Unavailable
28
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
29
Dimmer Switch
515163100
Unavailable
