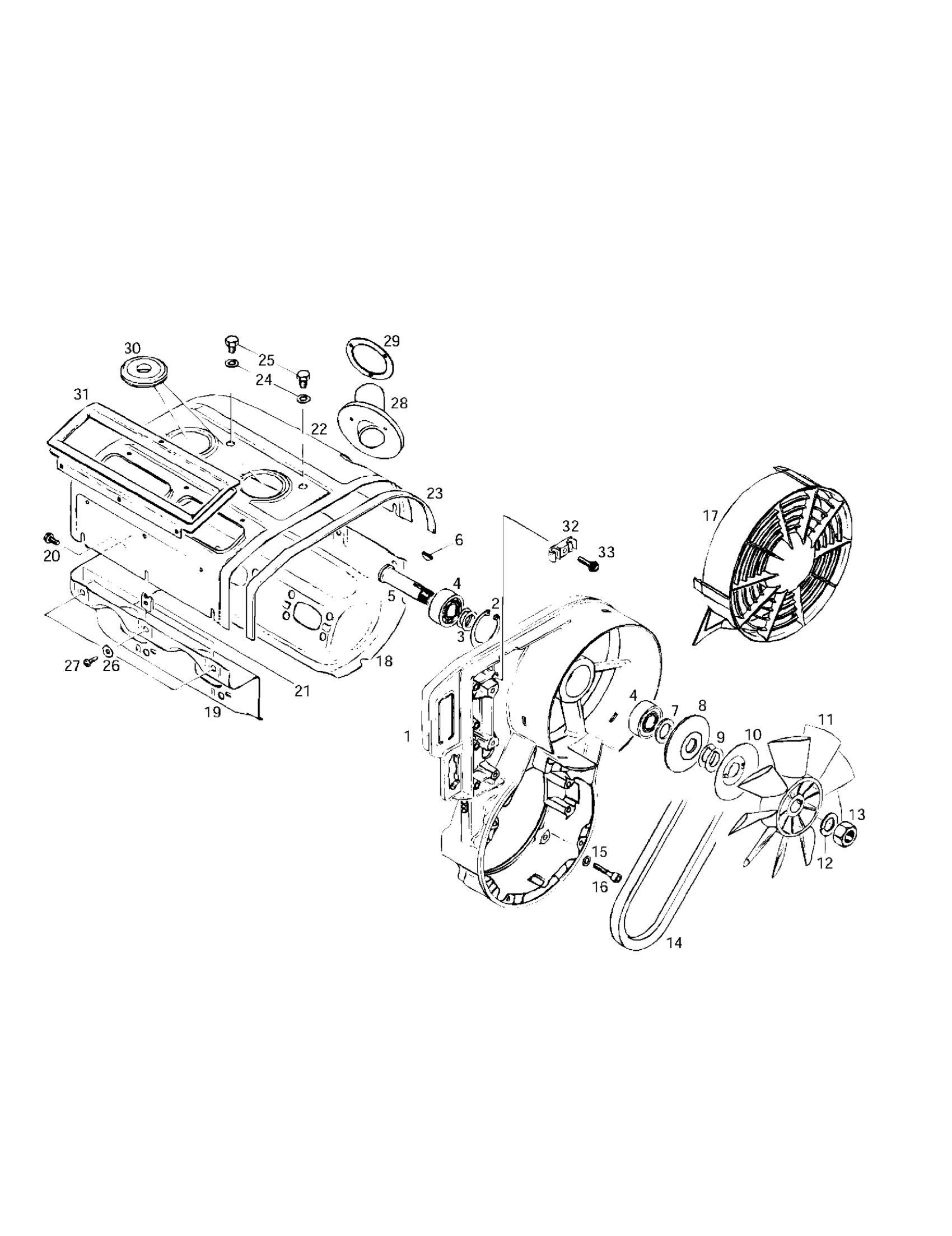

Ski-Doo Skandic Wide Track, 1997 Cooling System Fan Diagram

#

Description
Price

1

Fan Housing

420912202

Unavailable

2

Lock Ring

420945880

$3.61

3

Shim

420244585

$1.83

4

Ball Bearing

420832161

$34.58

5

Fan Axle This part replaces 420937940.

420937941

$13.58

6

Woodruff Key

420246015

$3.11

7

Spacer Bushing

420827650

$11.29

8

Flange

420980496

$13.58

9

Shim 0.5 mm

420827080

$2.06

Shim 0.2 mm

420827082

$3.11

10

Protection Washer

420980523

$11.52

11

FAN - Call your local BRP dealership

420866292

Unavailable

12

Lock Washer

420945756

$3.11

13

Nut M16 This part replaces 420942285.

420942289

$9.31

14

V-Belt

414630800

$37.66

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

16

Socket Head Screw M6 X 30

205063044

$1.42

17

FAN COVER - Call your local BRP dealership

420975695

Unavailable

18

Cylinder Cowl (Exhaust Side) | Skandic Super Wide Track.

420911069

Unavailable

19

Cylinder Cowl (Carburetor Side) | Skandic Super Wide Track.

420911067

Unavailable

20

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

Unavailable

21

Spring Nut

420842390

$1.85

22

Cylinder Cowl (Upper Half) | Skandic Super Wide Track.

420912824

Unavailable

23

Sealing Strip 440 mm | Skandic Super Wide Track.

420960961

Unavailable

24

Washer-Lock Din.128

420945832

$1.09

25

Hex. Screw M8 x 16

207181644

$0.87

26

FLAT WASHER - Call your local BRP dealership

420926180

Unavailable

27

Tapping Screw M4.8 X 16

417300006

$0.71

28

Fitting | Skandic Super Wide Track.

570125500

Unavailable

29

Connector Ring | Skandic Super Wide Track.

512030300

Unavailable

30

Grommet | Skandic Super Wide Track.

570124700

Unavailable

31

Seal | Skandic Super Wide Track.

570124600

Unavailable

32

CLAMP - Call your local BRP dealership

420860940

Unavailable

33

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65
