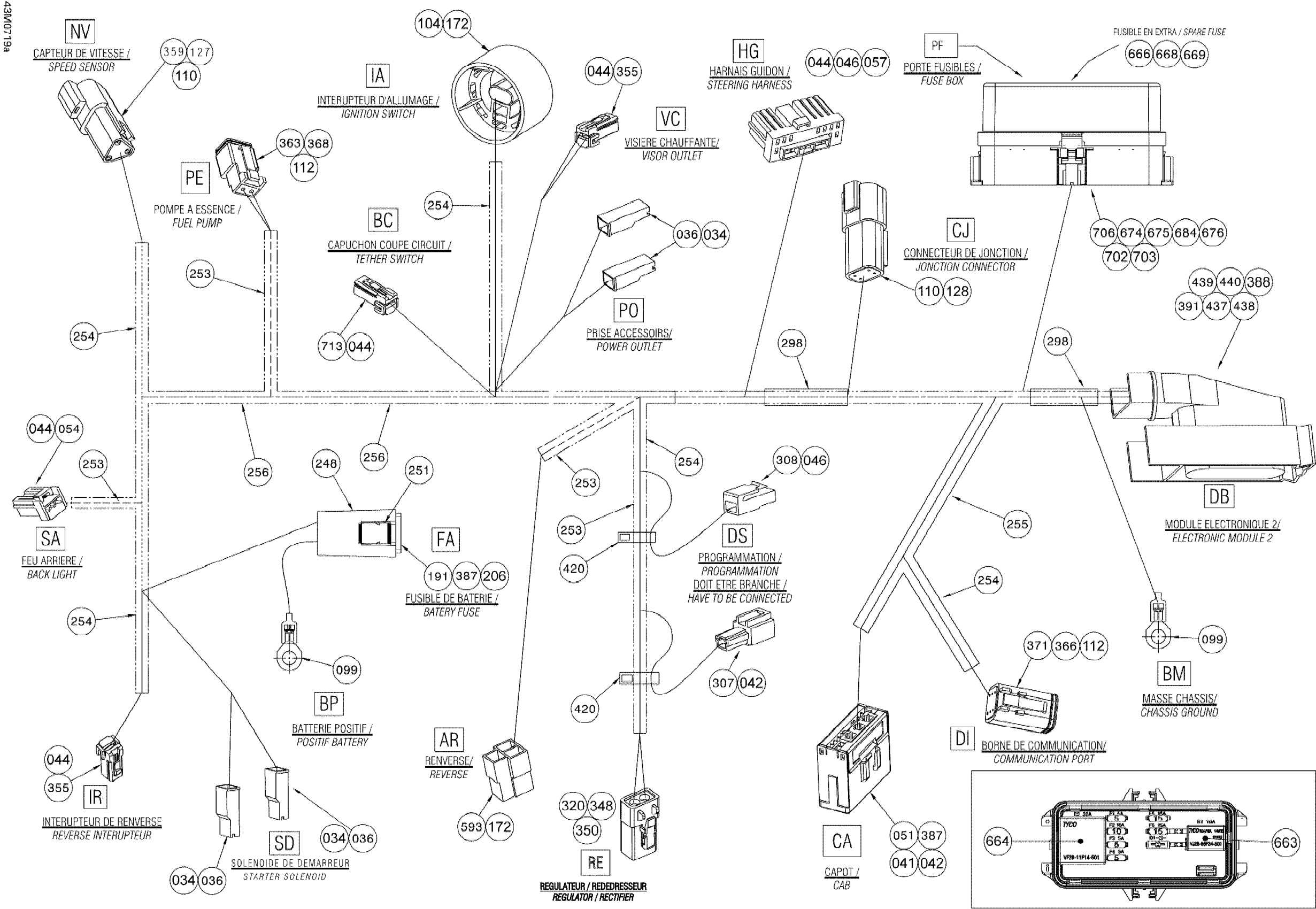

Ski-Doo Skandic Tundra V-800, 2007 Electrical Harness Diagram
#
Description
Price
1
WIRING HARNESS - Call your local BRP dealership | Includes 1 to 713
515176356
Unavailable
42
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
44
Female Terminal
515175231
Unavailable
57
Female Terminal Housing, 13 Circuits
515175350
Unavailable
104
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
112
Female Terminal
278000632
Unavailable
172
Female Terminal
561503100
Unavailable
206
Female Terminal
409004200
Unavailable
248
Fuse Holder
409004000
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
298
Tape
293740005
Unavailable
307
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175509
Unavailable
308
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175510
Unavailable
355
Female Housing, 2 Circuits
515175658
Unavailable
359
Male Housing
515175666
Unavailable
363
Female Terminal Housing, 2 Circuits
515175670
Unavailable
368
Female Lock, 2 Circuits
515175675
Unavailable
371
Male Wedge, 6 Circuits
515175678
Unavailable
387
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
388
FEMALE TERMINAL - Call your local BRP dealership
278001750
Unavailable
391
MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership
278001751
Unavailable
437
SEAL - Call your local BRP dealership
515175886
Unavailable
439
LOCK - Call your local BRP dealership
515175884
Unavailable
593
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
515176069
Unavailable
666
Little Fuse, 5 Amperes
710000742
Unavailable
668
Little Fuse, 10 Amperes
710000744
Unavailable
669
Little Fuse, 15 Ampere
710000745
Unavailable
676
FUSE LOGO - Call your local BRP dealership
515176395
Unavailable
713
Female Terminal Housing, 2 Circuits
515176296
Unavailable
